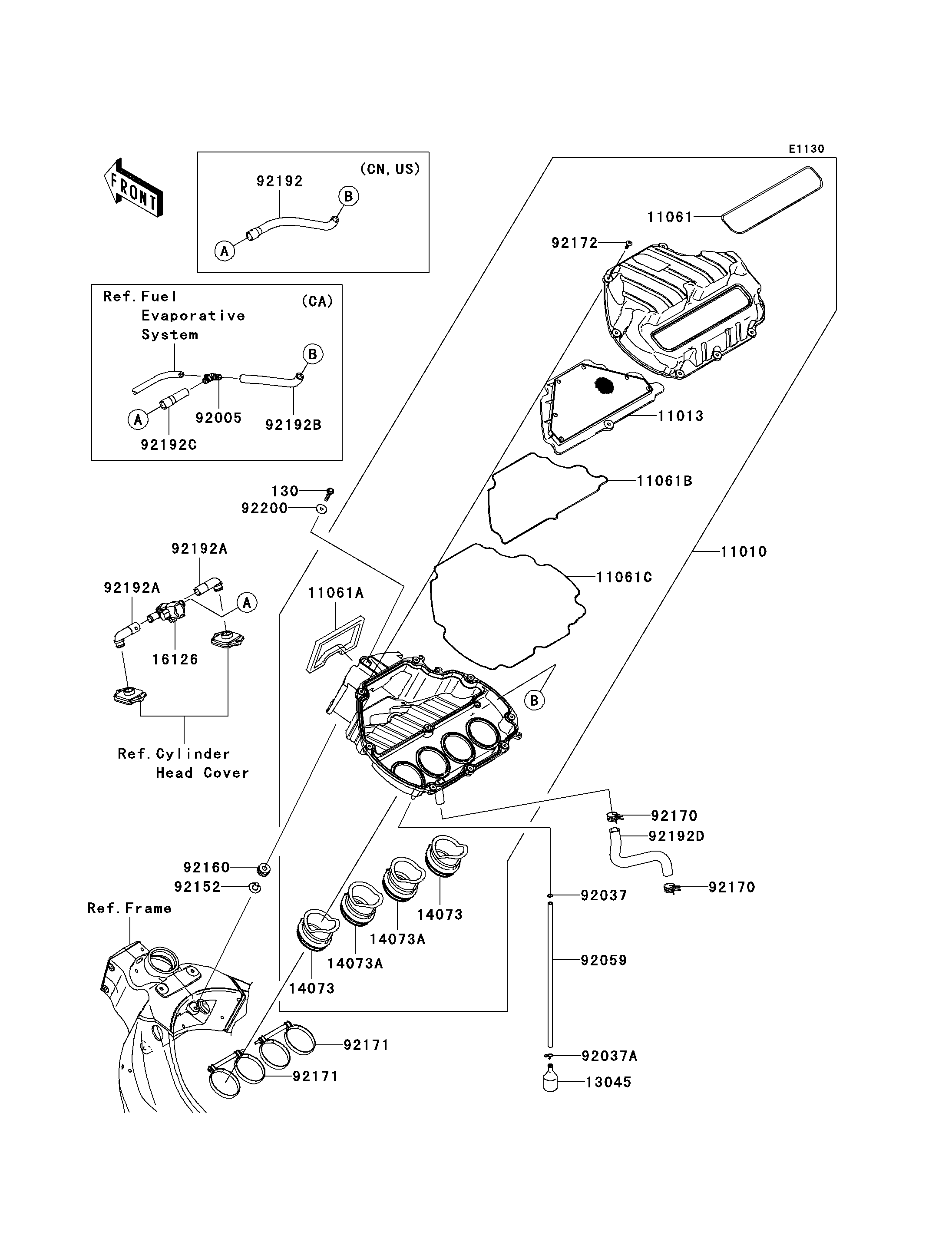

2008 Ninja® ZX™-6R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
11010
11013
11061
11061A
11061B
11061C
13045
14073
14073
14073A
14073A
16126
92037
92037A
92059
92152
92160
92170
92170
92171
92171
92172
92192A
92192A
92192D
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130BB0630 1
FILTER-ASSY-AIR 11010 11010-0134 1
ELEMENT-AIR FILTER 11013 11013-0016 1
GASKET,TOP INJECTOR 11061 11061-0242 1
GASKET,FRAME-A/C 11061A 11061-0243 1
GASKET,ELEMENT-LWR CASE 11061B 11061-0244 1
GASKET,A/C CASE 11061C 11061-0245 1
RECEIVER-OIL 13045 13045-1057 1
DUCT,#1,#4 14073 14073-0151 2
DUCT,#2,#3 14073A 14073-0152 2
VALVE,AIR SWITCHING 16126 16126-1437 1
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1712 1
TUBE,6X9X360 92059 92059-103 1
COLLAR,6.5X10.5X13.1 92152 92152-0547 1
DAMPER 92160 92160-1162 1
CLAMP 92170 92170-1060 2
CLAMP 92171 92171-0725 2
SCREW 92172 92172-1072 9
TUBE,HEAD-ASV 92192A 92192-0348 2
TUBE,BLOWBY 92192D 92192-0429 1
WASHER,6.5X22X1.6 92200 92200-1087 1
FITTING 92005 92005-1402 1 CA
TUBE,ASV-A/C 92192 92192-0347 1 CNUS
TUBE,A/C-FITTING 92192B 92192-0366 1 CA
TUBE,ASV-FITTING 92192C 92192-0367 1 CA
