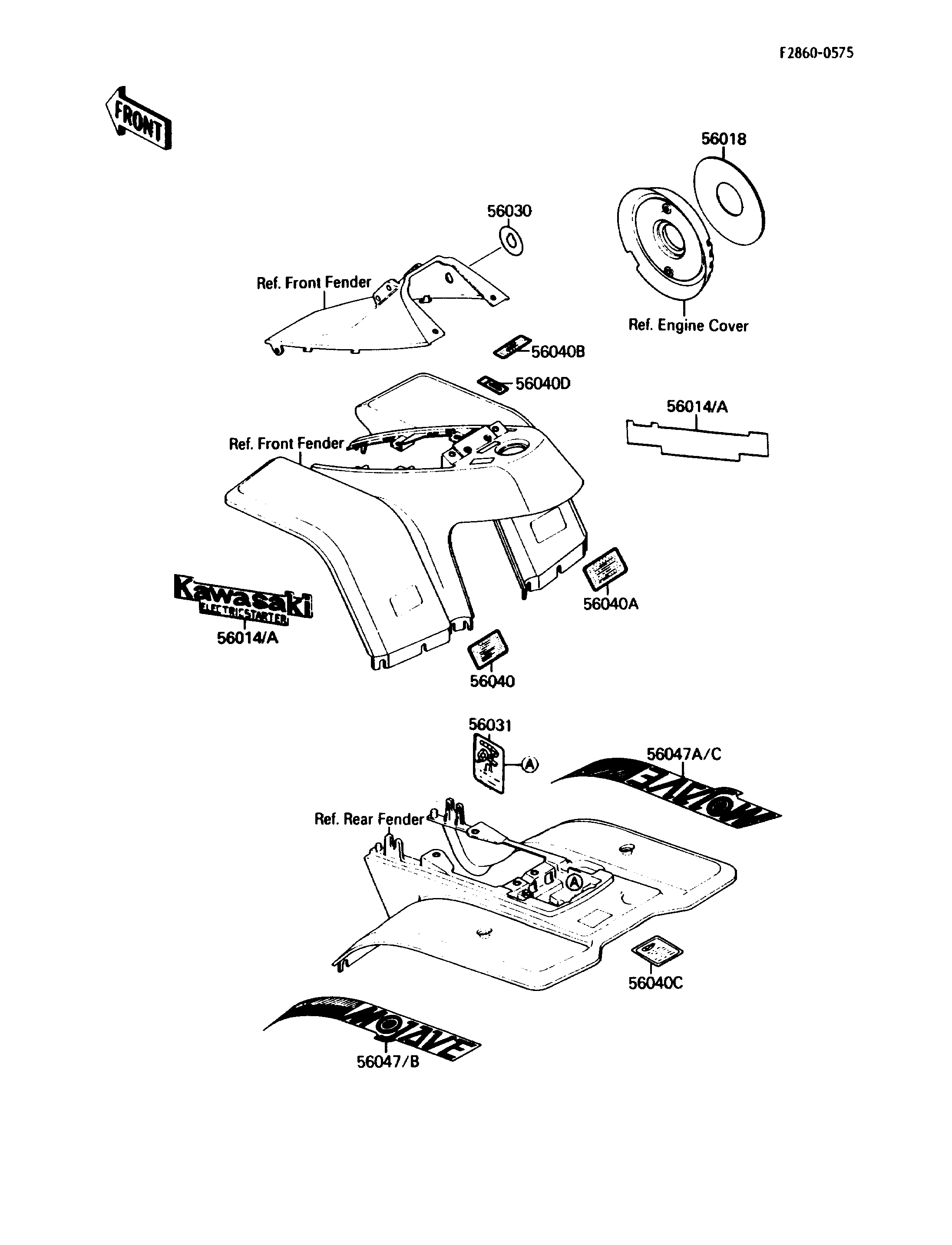

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FRONT FENDER,WHITE | 56014 | 56014-1152 | 2 | ||
| EMBLEM,FRONT FENDER,RED | 56014A | 56014-1154 | 2 | ||
| MARK,ENGINE COVER | 56018 | 56018-1397 | 2 | ||
| LABEL,IGNITION SWITCH | 56030 | 56030-1086 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56031 | 56031-1507 | 1 | ||
| LABEL-WARNING,OFF ROAD ONLY | 56040 | 56040-1175 | 1 | ||
| LABEL-WARNING,IMPORTANT NOTICE | 56040A | 56040-1176 | 1 | ||
| LABEL-WARNING,REFUELING | 56040B | 56040-1177 | 1 | ||
| LABEL-WARNING,IMPORTANT INFO | 56040C | 56040-1203 | 1 | ||
| LABEL-WARNING,SHIFT PATTERN | 56040D | 56040-1204 | 1 | ||
| PATTERN,REAR FENDER,LH,WHITE | 56047 | 56047-1183 | 1 | ||
| PATTERN,REAR FENDER,RH,WHITE | 56047A | 56047-1184 | 1 | ||
| PATTERN,REAR FENDER,LH,RED | 56047B | 56047-1185 | 1 | ||
| PATTERN,REAR FENDER,RH,RED | 56047C | 56047-1186 | 1 |
