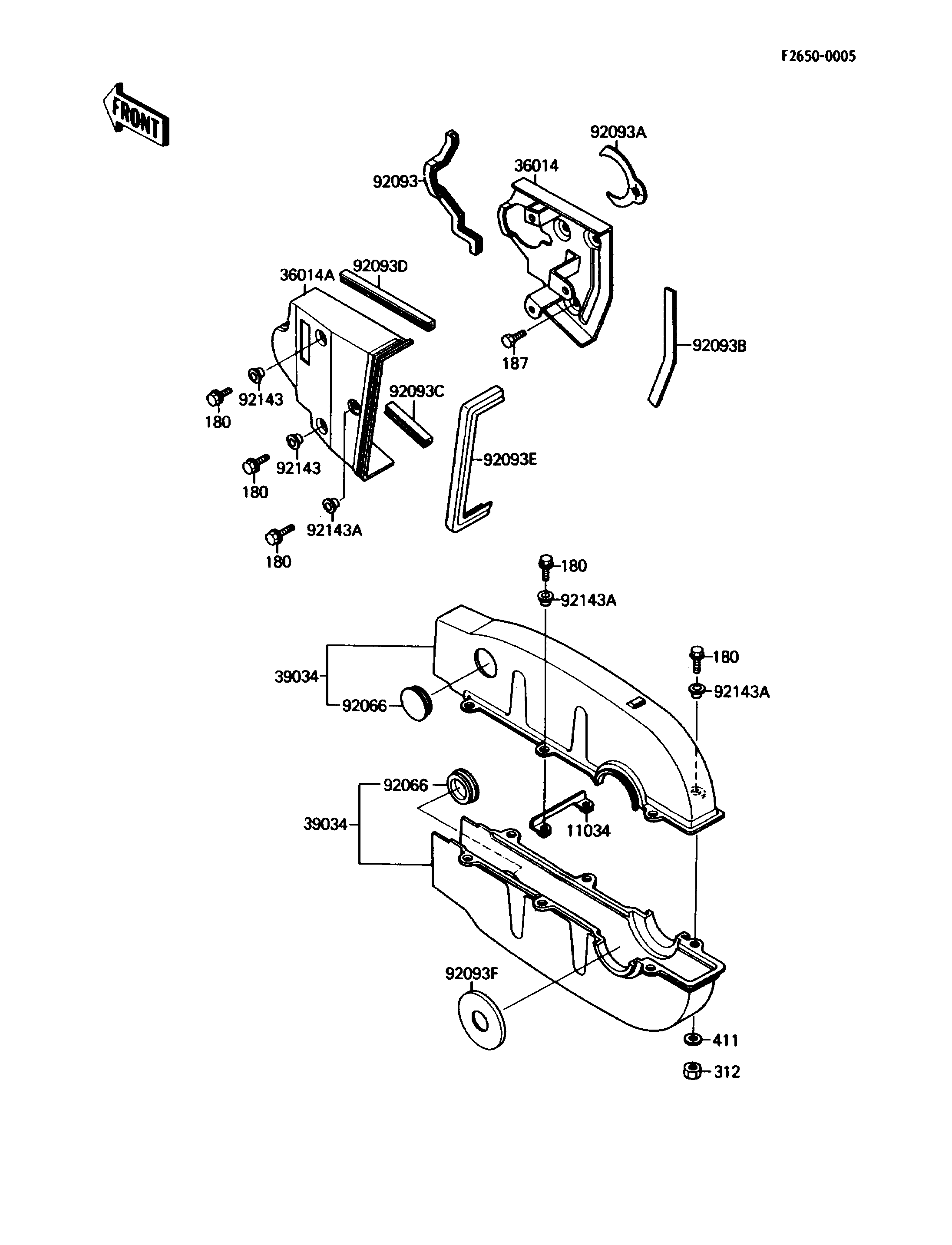

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CHAIN CASE | 11034 | 11034-4184 | 2 | ||
| CASE-CHAIN,FR,INSIDE | 36014 | 36014-1140 | 1 | ||
| CASE-CHAIN,FR,OUTSIDE | 36014A | 36014-1141 | 1 | ||
| CASE-ASSY-CHAIN,RR | 39034 | 39034-4002 | 2 | ||
| PLUG,CHAIN CASE | 92066 | 92066-4004 | 2 | ||
| SEAL,CHAIN CASE,FR,INSIDE | 92093 | 92093-1223 | 1 | ||
| SEAL,CHAIN CASE,FR,INSIDE | 92093A | 92093-1224 | 1 | ||
| SEAL,CHAIN CASE,FR,INSIDE | 92093B | 92093-1225 | 1 | ||
| SEAL,CHAIN CASE,FR,OUTSIDE | 92093C | 92093-1226 | 1 | ||
| SEAL,CHAIN CASE,FR,OUTSIDE | 92093D | 92093-1227 | 1 | ||
| SEAL,CHAIN CASE,FR,OUTSIDE | 92093E | 92093-1228 | 1 | ||
| SEAL,CHAIN CASE | 92093F | 92093-4006 | 1 | ||
| COLLAR,L=5 | 92143 | 92143-1087 | 2 | ||
| COLLAR,L=6.6 | 92143A | 92143-1088 | 7 | ||
| BOLT-UPSET-WS | 180 | 180C0618 | 9 | ||
| BOLT-UPSET-WSP | 187 | 187B0612 | 3 | ||
| NUT-HEX,6MM | 312 | 312B0600 | 2 | ||
| WASHER-PLAIN,6MM | 411 | 411B0600 | 2 |
