Parts Diagrams |

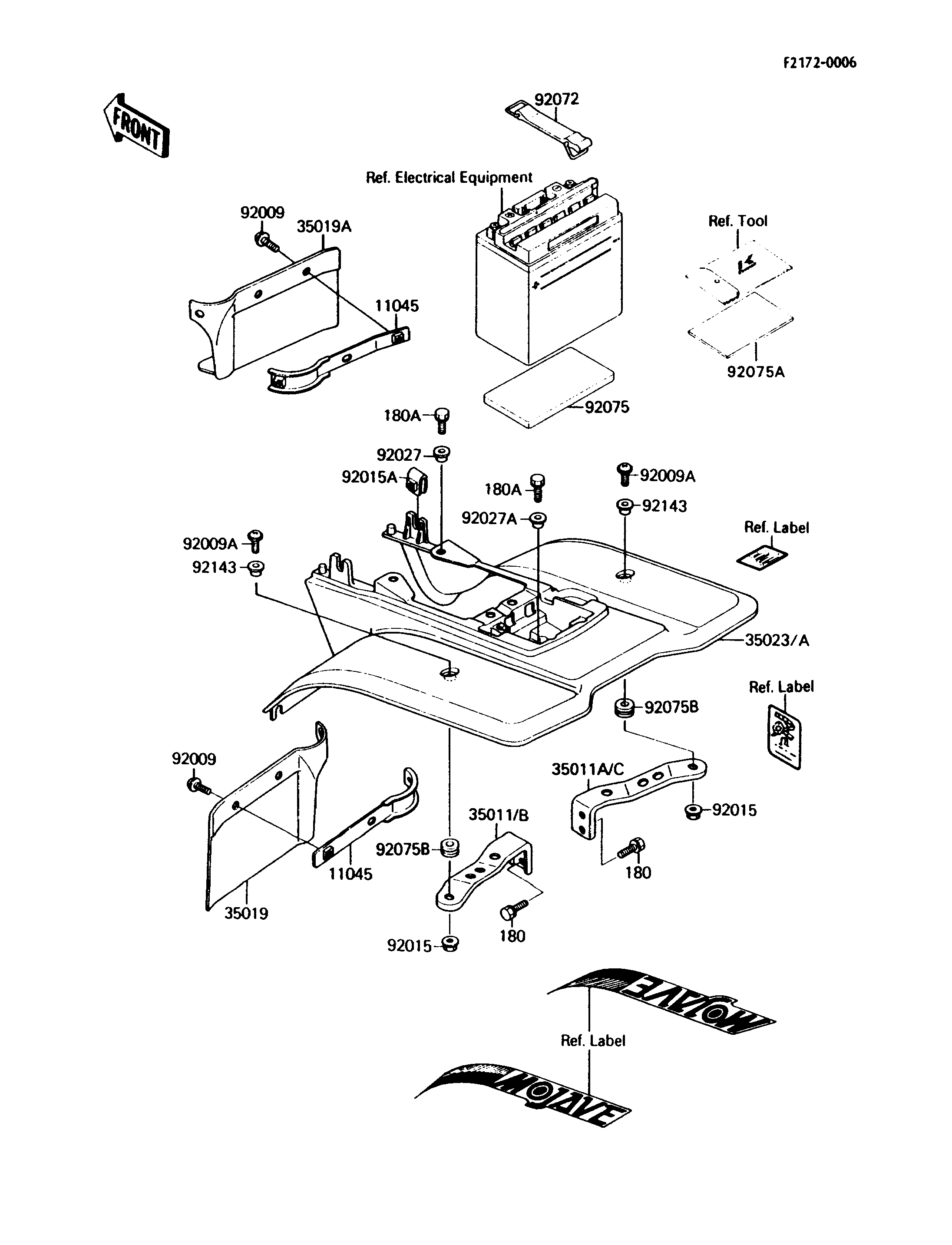

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REAR FLAP | 11045 | 11045-1384 | 2 | ||
| STAY,REAR FENDER,LH | 35011 | 35011-1311 | 1 | ||
| STAY,REAR FENDER,RH | 35011A | 35011-1328 | 1 | ||
| FLAP,REAR FENDER,LH | 35019 | 35019-1188 | 1 | ||
| FLAP,REAR FENDER,RH | 35019A | 35019-1189 | 1 | ||
| FENDER-REAR,P.WHITE | 35023 | 35023-1176-6F | 1 | ||
| FENDER-REAR,F.RED | 35023A | 35023-1176-6L | 1 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 6 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 2 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1237 | 2 | ||
| NUT,CLAMP,6MM | 92015A | 92015-1678 | 2 | ||
| COLLAR | 92027 | 92027-1166 | 2 | ||
| COLLAR | 92027A | 92027-1757 | 1 | ||
| BAND,BATTERY | 92072 | 92072-1210 | 1 | ||
| DAMPER,BATTERY | 92075 | 92075-1871 | 1 | ||
| DAMPER,TOOL BOX | 92075A | 92075-1916 | 1 | ||
| DAMPER,CASE | 92075B | 92075-222 | 2 | ||
| COLLAR,L=9.6 | 92143 | 92143-1016 | 2 | ||
| BOLT-UPSET-WS | 180 | 180D0614 | 4 | ||
| BOLT-UPSET-WS | 180A | 180D0620 | 3 |
| BRACKET,REAR FLAP | |
| REF # | 11045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER,LH | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,REAR FENDER,RH | |
| REF # | 35011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,REAR FENDER,LH | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,REAR FENDER,RH | |
| REF # | 35019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,P.WHITE | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,F.RED | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTERY | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,TOOL BOX | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CASE | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=9.6 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
