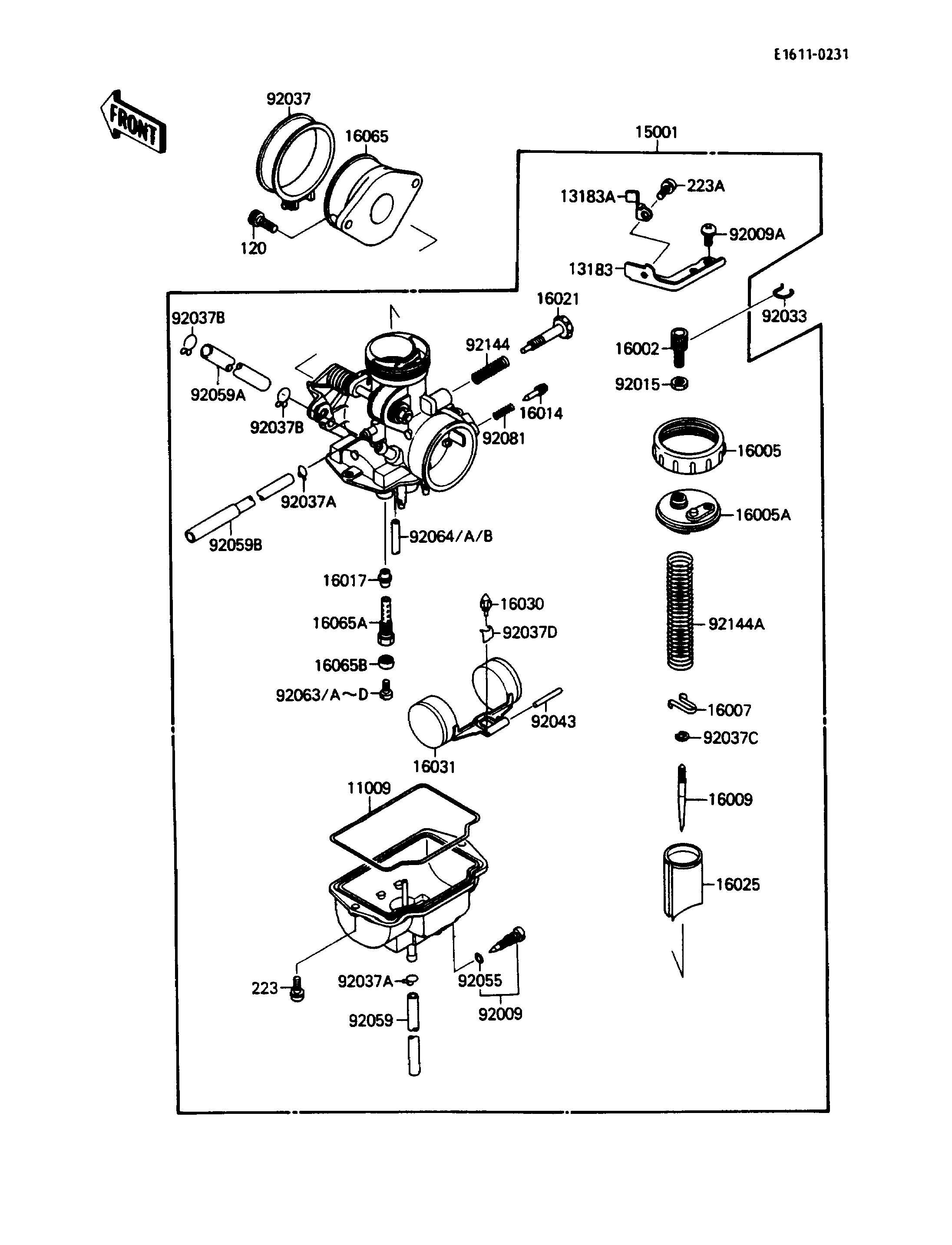

1987 Mojave 110E - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1375 1
PLATE 13183 13183-1088 1
PLATE 13183A 13183-1089 1
CARBURETOR-ASSY 15001 15001-1272 1
ADJUSTER-CABLE 16002 16002-1056 1
TOP-CHAMBER,MIXING 16005 16005-1053 1
TOP-CHAMBER 16005A 16005-1062 1
SEAT-SPRING 16007 16007-1103 1
NEEDLE-JET,N17B 16009 16009-1286 1
SCREW-PILOT AIR 16014 16014-1051 1
JET-NEEDLE 16017 16017-1211 1
SCREW-THROTTLE STOP 16021 16021-1119 1
VALVE-THROTTLE,CA 3.0 16025 16025-1135 1
VALVE-FLOAT 16030 16030-1052 1
FLOAT 16031 16031-1053 1
HOLDER-CARBURETOR 16065 16065-1067 1
HOLDER-CARBURETOR,NEEDLE JET 16065A 16065-1105 1
HOLDER-CARBURETOR,JET 16065B 16065-1106 1
SCREW,DRAIN,M6X1.0 92009 92009-1095 1
SCREW,5X10 92009A 92009-1365 1
NUT,CABLE ADJUST LOCK 92015 92015-1574 1
RING-SNAP 92033 92036-018 1
CLAMP,CONNECTOR 92037 92037-1127 1
CLAMP,TUBE 92037A 92037-1142 2
CLAMP,TUBE 92037B 92037-1194 2
CLAMP,JET NEEDLE 92037C 92037-1401 1
CLAMP,FLOAT VALVE 92037D 92037-1476 1
PIN,FLOAT 92043 92043-1209 1
RING-O,DRAIN SCREW 92055 92055-1053 1
TUBE,3.5X6.5X270 92059 92059-1046 1
TUBE,5.3X10.5X330 92059A 92059-1791 1
TUBE,L=285 92059B 92059-1792 1
JET-MAIN,#92 92063 92063-1321 1 (RACING USE ONLY)
JET-MAIN,#82 92063A 92063-1325 1 (RACING USE ONLY)
JET-MAIN,#85 92063B 92063-1326 1 (RACING USE ONLY)
JET-MAIN,#90 92063C 92063-1327 1 (RACING USE ONLY)
JET-MAIN,#88 92063D 92063-1328 1
JET-PILOT,#35 92064 92064-1102 1
JET-PILOT,#32 92064A 92064-1126 1 (OPTION)
JET-PILOT,#38 92064B 92064-1127 1 (OPTION)
SPRING,PILOT AIR SCREW 92081 92081-1631 1
SPRING,THROTTLE STOP SCREW 92144 92144-1116 1
SPRING,THROTTLE VALVE 92144A 92144-1128 1
BOLT-SOCKET,6X14 120 120P0614 2
SCREW-PAN-WS-CROS 223 223B0412 2
SCREW-PAN-WS-CROS 223A 223D0410 1
