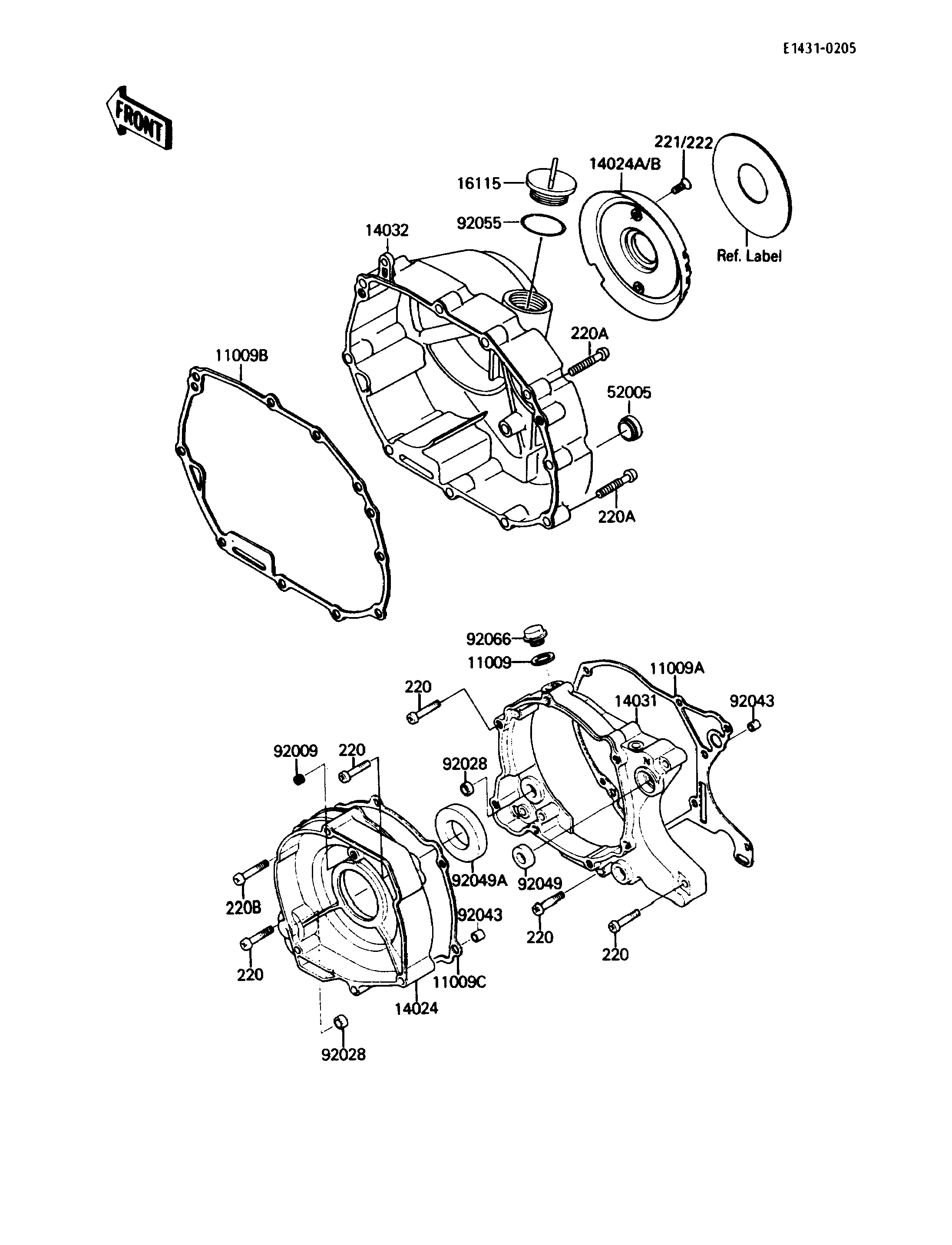

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,14.3X20X1 | 11009 | 11009-1238 | 1 | ||
| GASKET,GENERATOR COVER | 11009A | 11009-1311 | 1 | ||
| GASKET,CLUTCH COVER | 11009B | 11009-1346 | 1 | ||
| GASKET,COVER,LH | 11009C | 11009-1597 | 1 | ||
| COVER,LH | 14024 | 14024-1312 | 1 | ||
| COVER,CLUTCH COVER | 14024B | 14025-1792 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1198 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1114 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1055 | 1 | ||
| SCREW,SOCKET,8X8 | 92009 | 92009-1439 | 1 | ||
| BUSHING | 92028 | 92028-1189 | 2 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
| SEAL-OIL | 92049 | 92049-1163 | 1 | ||
| SEAL-OIL,AE2057A0 | 92049A | 92049-1265 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| PLUG,14X8 | 92066 | 92066-1273 | 1 | ||
| SCREW-PAN-CROS | 220 | 220X0630 | 9 | ||
| SCREW-PAN-CROS | 220A | 220X0635 | 10 | ||
| SCREW-PAN-CROS | 220B | 220X0640 | 1 | ||
| SCREW-CSK-CROS | 221 | 221B0510 | 2 |
