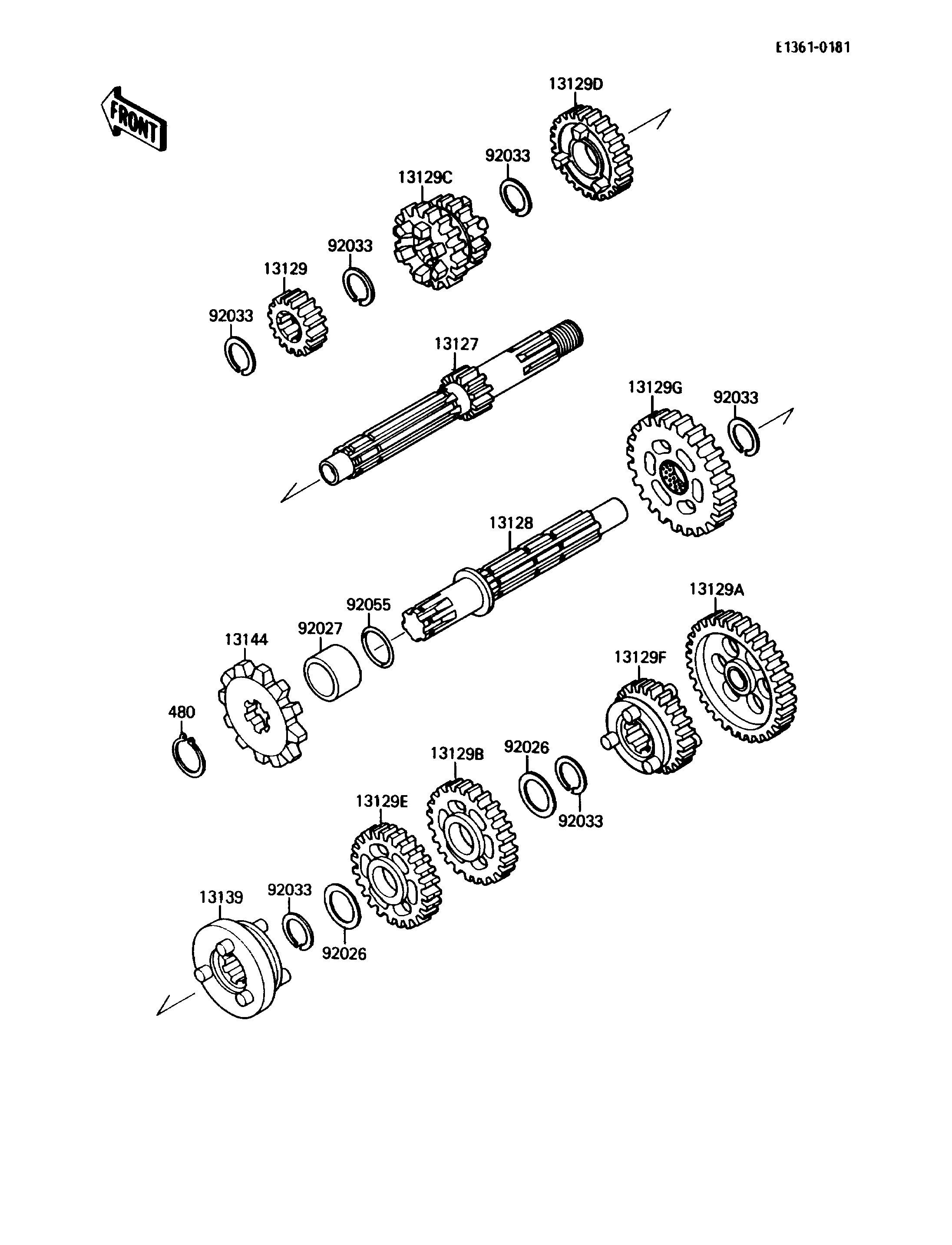

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1119 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1045 | 1 | ||
| GEAR,INPUT 2ND,18T | 13129 | 13129-1244 | 1 | ||
| GEAR,OUTPUT LOW,43T | 13129A | 13129-1248 | 1 | ||
| GEAR,OUTPUT 3RD,34T | 13129B | 13129-1618 | 1 | ||
| GEAR,INPUT 3RD&4TH,22&22T | 13129C | 13129-1820 | 1 | ||
| GEAR,INPUT 5TH,29T | 13129D | 13129-1821 | 1 | ||
| GEAR,OUTPUT 4TH,27T | 13129E | 13129-1822 | 1 | ||
| GEAR,OUTPUT 5TH,28T | 13129F | 13129-1823 | 1 | ||
| GEAR,OUTPUT 2ND,38T | 13129G | 13129-1857 | 1 | ||
| SHIFTER | 13139 | 13139-1051 | 1 | ||
| SPROCKET-OUTPUT,12T | 13144 | 13144-1072 | 1 | ||
| SPACER,17.2X23X0.5 | 92026 | 92026-1037 | 2 | ||
| COLLAR,17X22X14.3 | 92027 | 92027-1511 | 1 | ||
| RING-SNAP,17MM | 92033 | 92033-1060 | 6 | ||
| RING-O,17MM | 92055 | 92055-1097 | 1 | ||
| CIRCLIP-TYPE-C,17MM | 480 | 480J1700 | 1 |
| SHAFT-TRANSMISSION INPUT,13T | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,18T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,43T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,34T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,22&22T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,29T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,27T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,28T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,38T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFTER | |
| REF # | 13139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,12T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,17.2X23X0.5 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,17X22X14.3 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,17MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| RING-O,17MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,17MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
