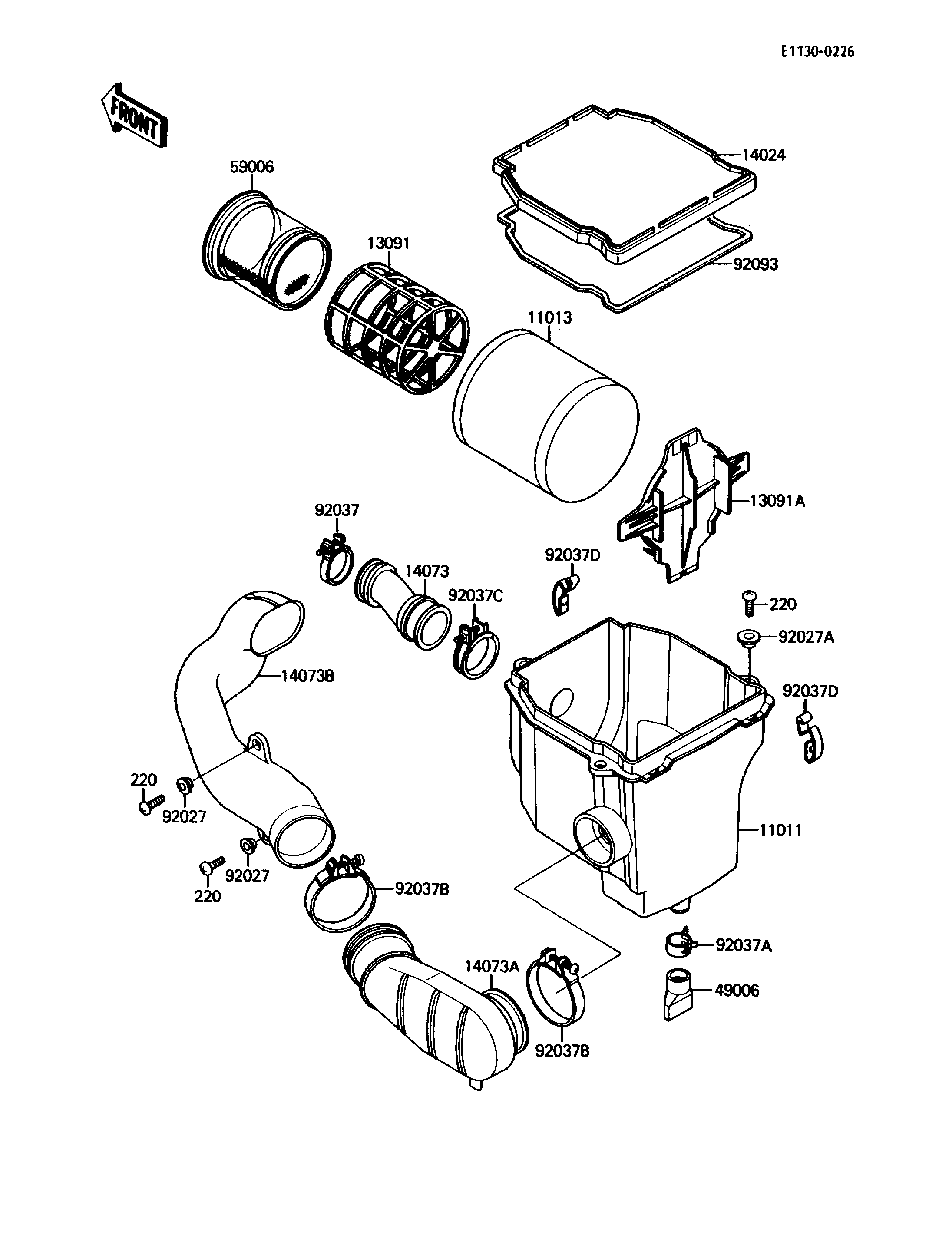

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1235 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1109 | 1 | ||
| HOLDER,ELEMENT | 13091 | 13091-1121 | 1 | ||
| HOLDER,AIR FILTER | 13091A | 13091-1441 | 1 | ||
| COVER,AIR FILTER | 14024 | 14024-1311 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1270 | 1 | ||
| DUCT,AIR FILTER | 14073A | 14073-1290 | 1 | ||
| DUCT,AIR FILTER | 14073B | 14073-1291 | 1 | ||
| BOOT | 49006 | 49006-1199 | 1 | ||
| ARRESTER-FLAME | 59006 | 59006-1051 | 1 | ||
| COLLAR,L=4.6 | 92027 | 92027-1168 | 2 | ||
| COLLAR,L=7.4 | 92027A | 92027-1848 | 3 | ||
| CLAMP,39MM | 92037 | 92037-1407 | 1 | ||
| CLAMP | 92037A | 92037-1460 | 1 | ||
| CLAMP | 92037B | 92037-1554 | 2 | ||
| CLAMP | 92037C | 92037-177 | 1 | ||
| CLAMP,AIR FILTER | 92037D | 92037-1783 | 4 | ||
| SEAL,AIR FILTER COVER | 92093 | 92093-1221 | 1 | ||
| SCREW-PAN-CROS,6X16 | 220 | 220B0616 | 5 |
| CASE-AIR FILTER | |
| REF # | 11011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,ELEMENT | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,AIR FILTER | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARRESTER-FLAME | |
| REF # | 59006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=4.6 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=7.4 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,39MM | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR FILTER | |
| REF # | 92037D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL,AIR FILTER COVER | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X16 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
