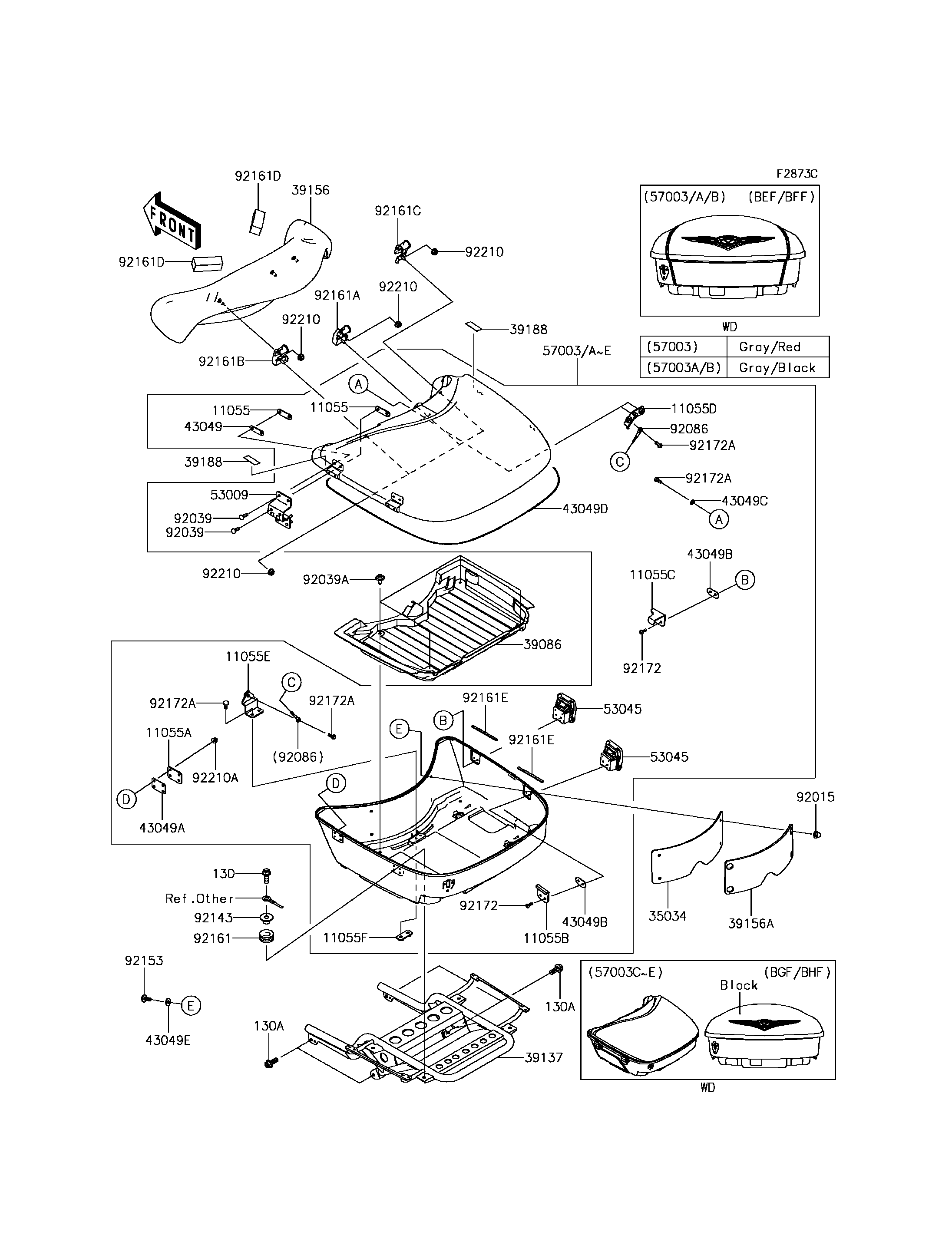

2015 Vulcan 1700 Voyager ABS - Saddlebags(Trunk)(BEF-BHF)
11055
11055
11055
11055
11055A
11055A
11055B
11055B
11055C
11055C
11055D
11055D
11055E
11055E
11055F
11055F
35034
35034
39086
39086
39137
39137
39156
39156
39156A
39156A
39188
39188
39188
39188
43049
43049
43049A
43049A
43049B
43049B
43049B
43049B
43049C
43049C
43049D
43049D
43049E
43049E
53009
53009
53045
53045
53045
53045
57003B
57003B
92015
92015
92039
92039
92039
92039
92039A
92039A
92086
92086
92143
92143
92153
92153
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
130
130
130A
130A
130A
130A
92161E
92161E
92161E
92161E
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11055 | 11055-1899 | 4 | ||
| BRACKET | 11055A | 11055-1900 | 2 | ||
| BRACKET | 11055B | 11055-1902 | 1 | ||
| BRACKET | 11055C | 11055-1904 | 1 | ||
| BRACKET | 11055D | 11055-1905 | 1 | ||
| BRACKET | 11055E | 11055-1906 | 1 | ||
| BRACKET | 11055F | 11055-1907 | 1 | ||
| REINFORCE | 35034 | 35034-0564 | 1 | ||
| PAD-STORAGE | 39086 | 39086-0001 | 1 | ||
| STAY-COMP | 39137 | 39137-0555 | 1 | ||
| PAD,UPP,BLACK | 39156 | 39156-0523-MA | 1 | ||
| PAD | 39156A | 39156-0717 | 1 | ||
| TAPE | 39188 | 39188-0016 | 2 | ||
| PACKING | 43049 | 43049-0016 | 2 | ||
| PACKING | 43049A | 43049-0017 | 2 | ||
| PACKING | 43049B | 43049-0018 | 2 | ||
| PACKING | 43049C | 43049-0019 | 2 | ||
| PACKING | 43049D | 43049-0020 | 1 | ||
| PACKING | 43049E | 43049-0021 | 4 | ||
| HINGE | 53009 | 53009-0028 | 2 | ||
| HOOK-ASSY | 53045 | 53045-0015 | 2 | ||
| BAG,CNT,BODY GRY+COVER GRY/BLK | 57003B | 57003-5378-51S | 1 | ||
| NUT,LOCK 6MM | 92015 | 92015-1262 | 4 | ||
| RIVET | 92039 | 92039-0091 | 8 | ||
| RIVET | 92039A | 92039-1289 | 4 | ||
| WIRE | 92086 | 92086-0014 | 1 | ||
| COLLAR | 92143 | 92143-1450 | 4 | ||
| BOLT,SOCKET,6X14 | 92153 | 92153-1361 | 4 | ||
| DAMPER | 92161 | 92161-0290 | 4 | ||
| DAMPER | 92161A | 92161-0754 | 1 | ||
| DAMPER | 92161B | 92161-0755 | 1 | ||
| DAMPER | 92161C | 92161-0756 | 1 | ||
| DAMPER | 92161D | 92161-0802 | 2 | ||
| BOLT-FLANGED,8X22 | 130 | 130BA0822 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130CA0820 | 4 | ||
| DAMPER | 92161E | 92161-0819 | 2 | ||
| SCREW | 92172 | 92172-0049 | 4 | ||
| SCREW | 92172A | 92172-0450 | 6 | ||
| NUT | 92210 | 92210-0401 | 6 | ||
| NUT,CAP,4MM | 92210A | 92210-0434 | 8 |
