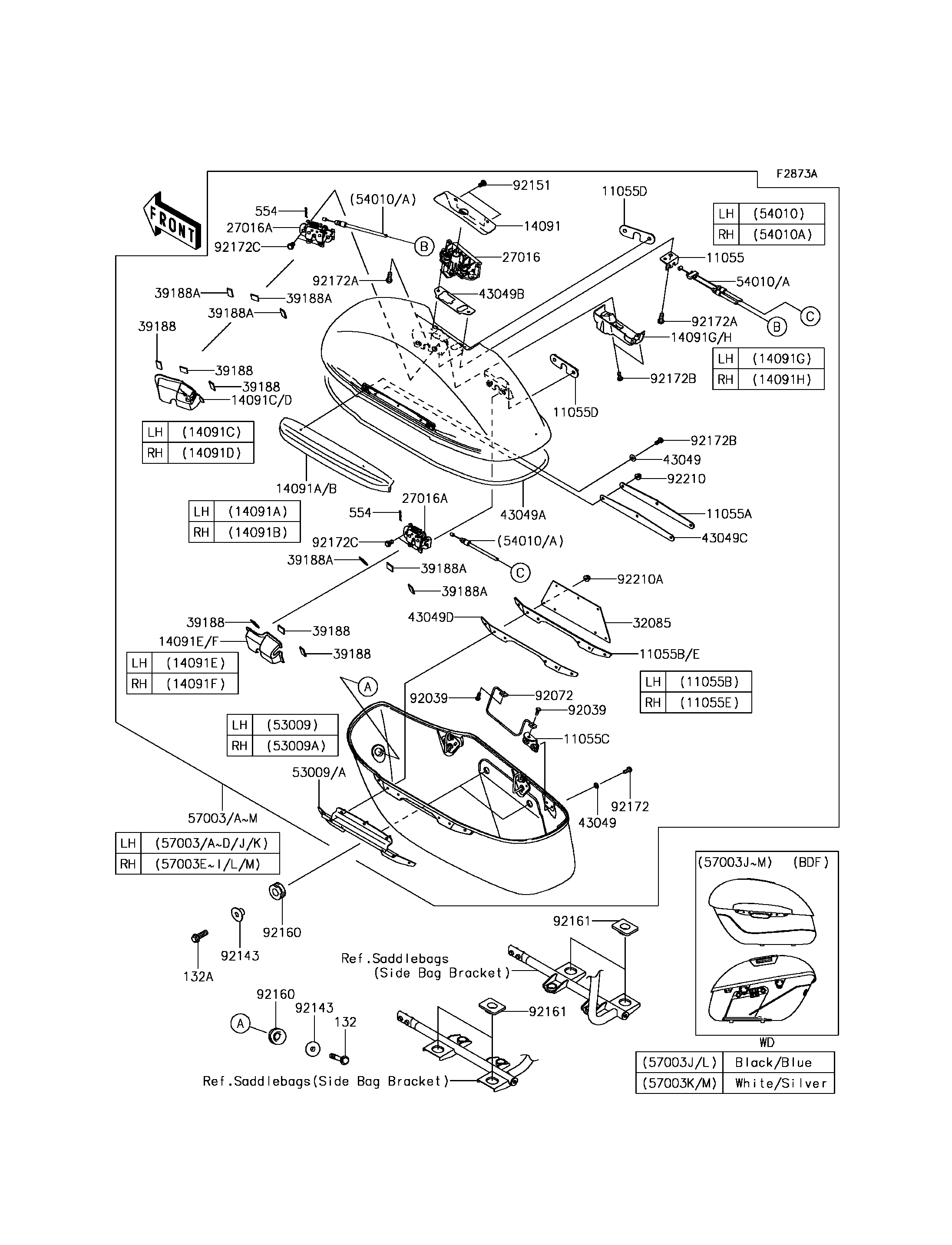

2015 Vulcan 1700 Voyager ABS - Saddlebags(Side Bag)
11055
11055
11055A
11055A
11055B
11055B
11055C
11055C
11055D
11055D
11055D
11055D
11055E
11055E
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
14091D
14091D
14091E
14091E
14091F
14091F
14091G
14091G
14091H
14091H
27016
27016
27016A
27016A
27016A
27016A
32085
32085
39188
39188
39188
39188
39188
39188
39188
39188
39188
39188
39188
39188
39188A
39188A
39188A
39188A
39188A
39188A
39188A
39188A
39188A
39188A
39188A
39188A
43049
43049
43049
43049
43049A
43049A
43049B
43049B
43049C
43049C
43049D
43049D
53009
53009
53009A
53009A
54010
54010
54010A
54010A
57003B
57003B
57003G
57003G
132
132
132A
132A
554
554
554
554
92039
92039
92039
92039
92072
92072
92143
92143
92143
92143
92151
92151
92160
92160
92160
92160
92161
92161
92161
92161
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172C
92172C
92172C
92172C
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11055 | 11055-1910 | 2 | ||
| BRACKET | 11055A | 11055-1911 | 2 | ||
| BRACKET,LH | 11055B | 11055-1912 | 1 | ||
| BRACKET,BELT | 11055C | 11055-1913 | 2 | ||
| BRACKET | 11055D | 11055-1916 | 4 | ||
| BRACKET,RH | 11055E | 11055-1917 | 1 | ||
| COVER,PANNIER LOCK | 14091 | 14091-1667 | 2 | ||
| COVER,PANNIER HINGE,LH | 14091A | 14091-1668 | 1 | ||
| COVER,PANNIER HINGE,RH | 14091B | 14091-1669 | 1 | ||
| COVER,PANNIER LOCK,FR,LH | 14091C | 14091-1749 | 1 | ||
| COVER,PANNIER LOCK,FR,RH | 14091D | 14091-1750 | 1 | ||
| COVER,PANNIER LOCK,RR,LH | 14091E | 14091-1751 | 1 | ||
| COVER,PANNIER LOCK,RR,RH | 14091F | 14091-1752 | 1 | ||
| COVER,PANNIER LOCK,CNT,LH | 14091G | 14091-1753 | 1 | ||
| COVER,PANNIER LOCK,CNT,RH | 14091H | 14091-1754 | 1 | ||
| LOCK-ASSY,PANNIER CASE | 27016 | 27016-0026 | 2 | ||
| LOCK-ASSY,PANNIER CASE,STRIKER | 27016A | 27016-0029 | 4 | ||
| STOPPER | 32085 | 32085-0187 | 2 | ||
| TAPE,10X15 | 39188 | 39188-0014 | 12 | ||
| TAPE,15X10 | 39188A | 39188-0015 | 12 | ||
| PACKING | 43049 | 43049-0019 | 8 | ||
| PACKING | 43049A | 43049-0022 | 2 | ||
| PACKING | 43049B | 43049-0023 | 2 | ||
| PACKING | 43049C | 43049-0024 | 2 | ||
| PACKING | 43049D | 43049-0026 | 2 | ||
| HINGE,LH | 53009 | 53009-0029 | 1 | ||
| HINGE,RH | 53009A | 53009-0030 | 1 | ||
| CABLE,PANNIER CASE,LH | 54010 | 54010-0113 | 1 | ||
| CABLE,PANNIER CASE,RH | 54010A | 54010-0114 | 1 | ||
| BAG,LH,BODY BLACK+COVER GRAY | 57003B | 57003-0091-51T | 1 | ||
| BAG,RH,BODY BLACK+COVER GRAY | 57003G | 57003-0092-51T | 1 | ||
| BOLT-FLANGED-SMALL,8X60 | 132 | 132BA0860 | 2 | ||
| BOLT-FLANGED-SMALL,8X25 | 132A | 132BB0825 | 4 | ||
| PIN-SNAP | 554 | 554DA0500 | 4 | ||
| RIVET | 92039 | 92039-0063 | 4 | ||
| BAND,L=320MM | 92072 | 92072-0140 | 2 | ||
| COLLAR | 92143 | 92143-1450 | 6 | ||
| BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 4 | ||
| DAMPER | 92160 | 92160-1012 | 6 | ||
| DAMPER | 92161 | 92161-0607 | 4 | ||
| SCREW | 92172 | 92172-0450 | 4 | ||
| SCREW,6X16 | 92172A | 92172-0452 | 4 | ||
| SCREW,TAPPING,5X12 | 92172B | 92172-0453 | 8 | ||
| SCREW,6X16 | 92172C | 92172-0454 | 8 | ||
| NUT,CAP,4MM | 92210 | 92210-0434 | 6 | ||
| NUT | 92210A | 92210-0577 | 8 |
