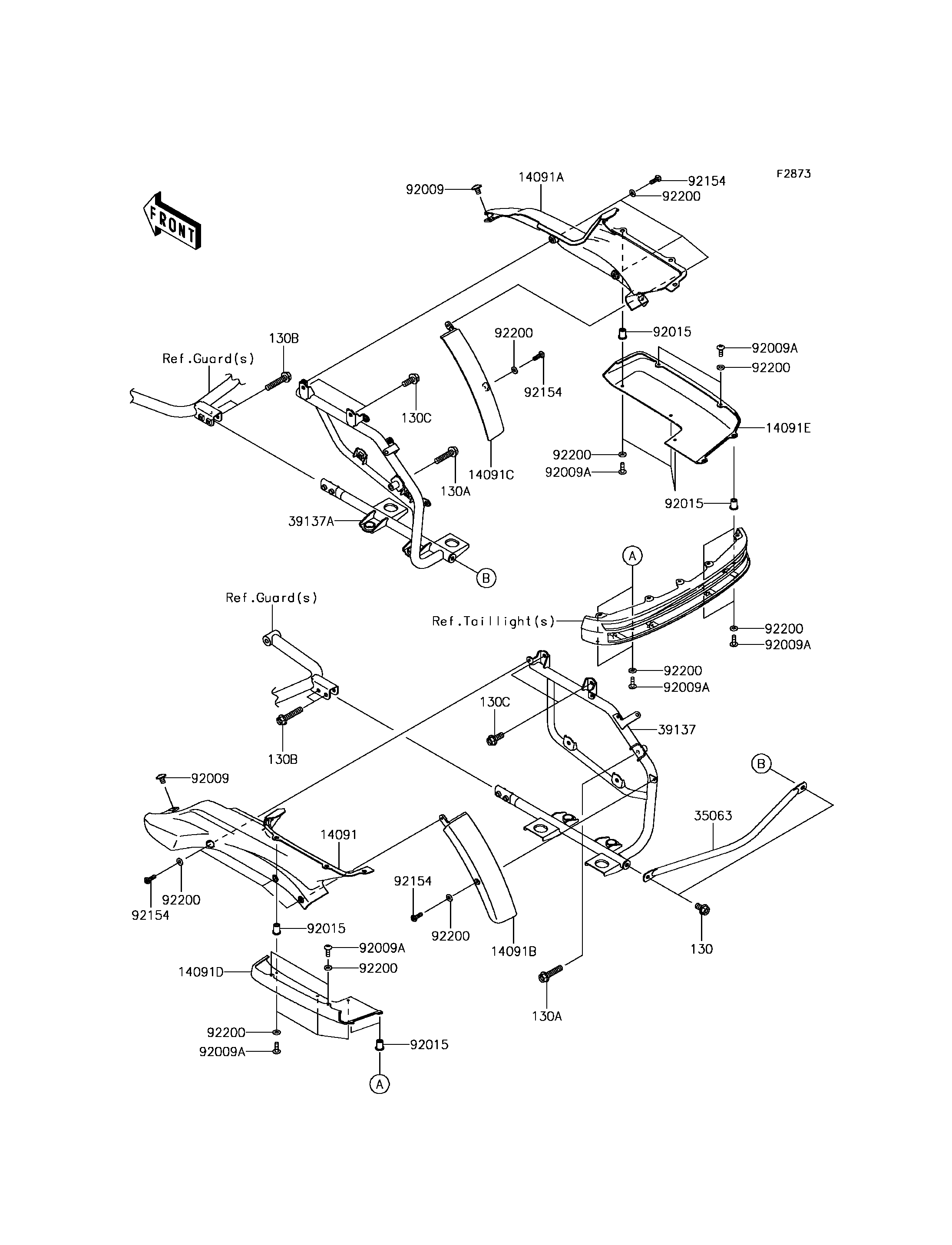

2015 Vulcan 1700 Voyager ABS - Saddlebags(Side Bag Bracket)
130
130A
130A
130B
130B
130C
130C
14091
14091A
14091B
14091C
14091D
14091E
35063
39137
39137A
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92154
92154
92154
92154
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X14 | 130 | 130BA0814 | 2 | ||
| BOLT-FLANGED,8X35 | 130A | 130BA0835 | 2 | ||
| BOLT-FLANGED,8X40 | 130B | 130BA0840 | 4 | ||
| BOLT-FLANGED,8X20 | 130C | 130CA0820 | 4 | ||
| COVER,STAY,LWR,LH | 14091 | 14091-0950 | 1 | ||
| COVER,STAY,LWR,RH | 14091A | 14091-0951 | 1 | ||
| COVER,STRUT,LH | 14091B | 14091-0957 | 1 | ||
| COVER,STRUT,RH | 14091C | 14091-0958 | 1 | ||
| COVER,STAY,UPP,LH | 14091D | 14091-1661 | 1 | ||
| COVER,STAY,UPP,RH | 14091E | 14091-1662 | 1 | ||
| STAY,PANNIER | 35063 | 35063-0537 | 1 | ||
| STAY-COMP,PANNIER,LH | 39137 | 39137-0048 | 1 | ||
| STAY-COMP,PANNIER,RH | 39137A | 39137-0049 | 1 | ||
| SCREW,6X10,WHITE | 92009 | 92009-1286 | 2 | ||
| SCREW,5X16,WHITE | 92009A | 92009-1464 | 14 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 10 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0287 | 8 | ||
| WASHER,NATURAL,5.3X11.5X1.0 | 92200 | 92200-0538 | 22 |
| BOLT-FLANGED,8X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X35 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X40 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,STAY,LWR,LH | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STAY,LWR,RH | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STRUT,LH | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STRUT,RH | |
| REF # | 14091C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STAY,UPP,LH | |
| REF # | 14091D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STAY,UPP,RH | |
| REF # | 14091E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,PANNIER | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY-COMP,PANNIER,LH | |
| REF # | 39137 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY-COMP,PANNIER,RH | |
| REF # | 39137A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10,WHITE | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16,WHITE | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,NATURAL,5.3X11.5X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
