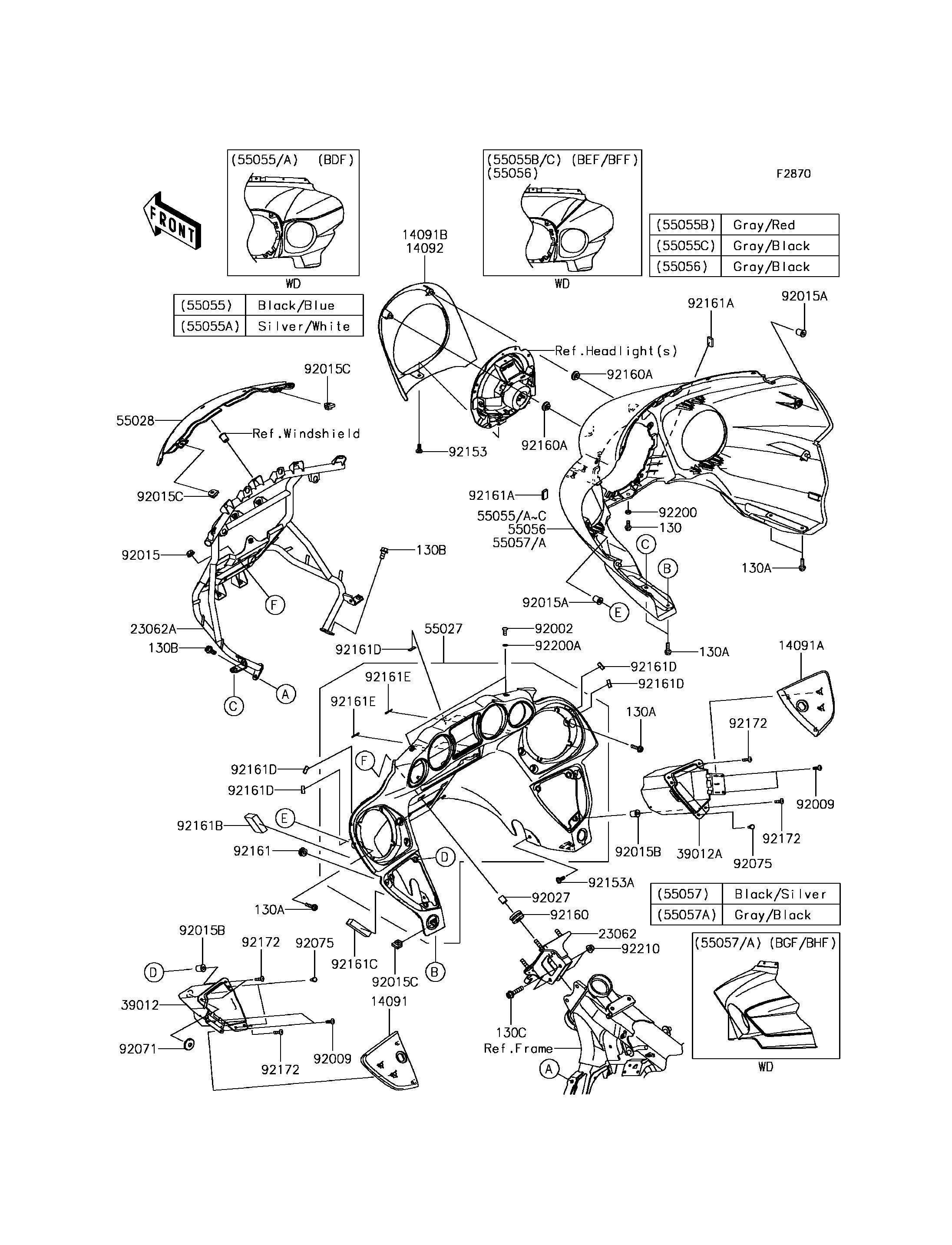

2015 Vulcan 1700 Voyager ABS - Cowling
14091
14091
14091A
14091A
14091B
14091B
23062
23062
23062A
23062A
39012
39012
39012A
39012A
55027
55027
55028
55028
55056
55056
92002
92002
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015C
92015C
92015C
92015C
92015C
92027
92027
92071
92071
92075
92075
92075
92075
92153
92153
92153A
92153A
92160
92160
92160A
92160A
92160A
92160A
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92161D
92161D
92161D
92161D
92161D
92161D
92161E
92161E
92161E
92161E
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200A
92200A
92210
92210
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
130C
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,STORAGE CASE,LH,F.BLACK | 14091 | 14091-0946-6Z | 1 | ||
| COVER,STORAGE CASE,RH,F.BLACK | 14091A | 14091-0947-6Z | 1 | ||
| COVER,HEAD LAMP | 14091B | 14091-0948 | 1 | ||
| BRACKET-COMP,HEAD PIPE | 23062 | 23062-0106 | 1 | ||
| BRACKET-COMP,COWLING | 23062A | 23062-0720 | 1 | ||
| CASE-STORAGE,LH | 39012 | 39012-0027 | 1 | ||
| CASE-STORAGE,RH | 39012A | 39012-0028 | 1 | ||
| COWLING-ASSY,UPP,INNER,BLACK | 55027 | 55027-0063-6Z | 1 | ||
| COWLING,CNT,F.BLACK | 55028 | 55028-0227-6Z | 1 | ||
| COWLING,UPP,OUTER,GRAY/BLACK | 55056 | 55056-5139-51Q | 1 | ||
| BOLT,6X14 | 92002 | 92002-1700 | 2 | ||
| SCREW,TAPPING,5X10 | 92009 | 92009-1332 | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1406 | 4 | ||
| NUT | 92015A | 92015-1700 | 2 | ||
| NUT,WELL,5MM | 92015B | 92015-1757 | 6 | ||
| NUT,CLIP,6MM | 92015C | 92015-1904 | 4 | ||
| COLLAR,8.8X12X14 | 92027 | 92027-012 | 4 | ||
| GROMMET,TAIL LAMP WIRE | 92071 | 92071-079 | 1 | ||
| DAMPER,6X10X15 | 92075 | 92075-1808 | 4 | ||
| BOLT,SOCKET,6X16 | 92153 | 92153-0817 | 1 | ||
| BOLT,SOCKET,6X15 | 92153A | 92153-1451 | 2 | ||
| DAMPER | 92160 | 92160-1007 | 4 | ||
| DAMPER | 92160A | 92160-1613 | 2 | ||
| DAMPER | 92161 | 92161-0317 | 2 | ||
| DAMPER | 92161A | 92161-0717 | 2 | ||
| DAMPER | 92161B | 92161-0784 | 2 | ||
| DAMPER | 92161C | 92161-0785 | 2 | ||
| DAMPER | 92161D | 92161-0965 | 5 | ||
| DAMPER,3X25X0.3 | 92161E | 92161-0996 | 4 | ||
| SCREW,5X18 | 92172 | 92172-0428 | 6 | ||
| WASHER,6.5X12X2 | 92200 | 92200-0511 | 1 | ||
| WASHER,6.2X10X1 | 92200A | 92200-1465 | 2 | ||
| NUT,FLANGED,8MM | 92210 | 92210-0004 | 2 | ||
| BOLT-FLANGED,6X16 | 130 | 130AA0616 | 1 | ||
| BOLT-FLANGED,6X22 | 130A | 130BB0622 | 6 | ||
| BOLT-FLANGED,8X16 | 130B | 130BB0816 | 2 | ||
| BOLT-FLANGED,8X35 | 130C | 130BB0835 | 2 |
