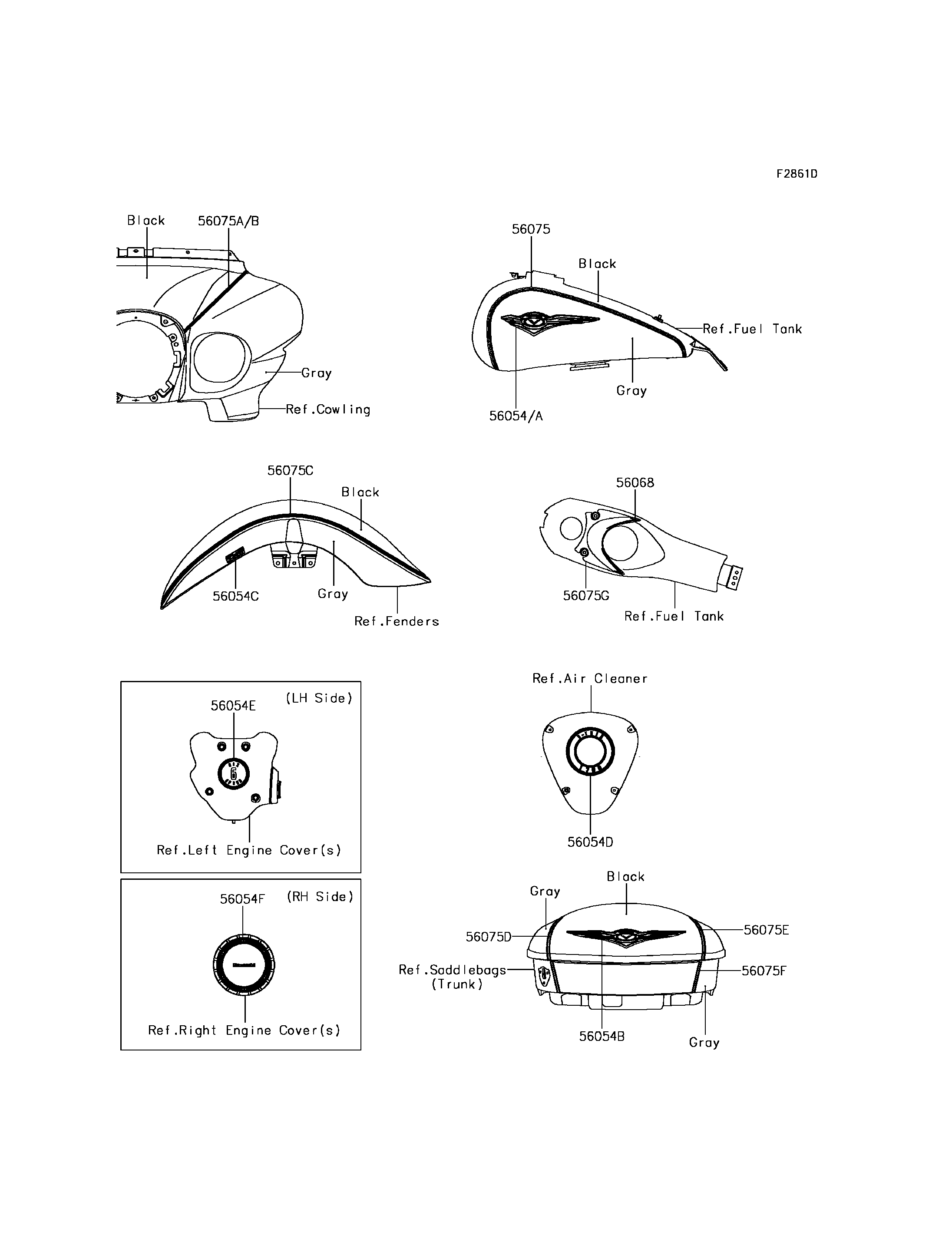

2015 Vulcan 1700 Voyager ABS - Decals(Gray/Black)(BFF)
56054
56054A
56054B
56054C
56054D
56054E
56054F
56068
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56054 | 56054-0300 | 1 | ||
| MARK,FUEL TANK,RH | 56054A | 56054-0301 | 1 | ||
| MARK,REAR TRUNK | 56054B | 56054-0302 | 1 | ||
| MARK,FR FENDER,ABS | 56054C | 56054-0456 | 2 | ||
| MARK,A/C,V-TWIN 1700 | 56054D | 56054-1147 | 2 | ||
| MARK,GEN. COVER,6 SPEED | 56054E | 56054-1148 | 1 | ||
| MARK,E/G COVER,KAWASAKI | 56054F | 56054-1149 | 1 | ||
| PATTERN,TANK COVER,LWR | 56068 | 56068-1882 | 1 | ||
| PATTERN,FUEL TANK | 56075 | 56075-0109 | 2 | ||
| PATTERN,UPP COWL.,LH | 56075A | 56075-0110 | 1 | ||
| PATTERN,UPP COWL.,RH | 56075B | 56075-0111 | 1 | ||
| PATTERN,FR FENDER | 56075C | 56075-0112 | 2 | ||
| PATTERN,CNT BAG,LH | 56075D | 56075-0113 | 1 | ||
| PATTERN,CNT BAG,RH | 56075E | 56075-0114 | 1 | ||
| PATTERN,CNT BAG,CNT | 56075F | 56075-0115 | 1 | ||
| PATTERN,TANK COVER,UPP | 56075G | 56075-0592 | 1 |
