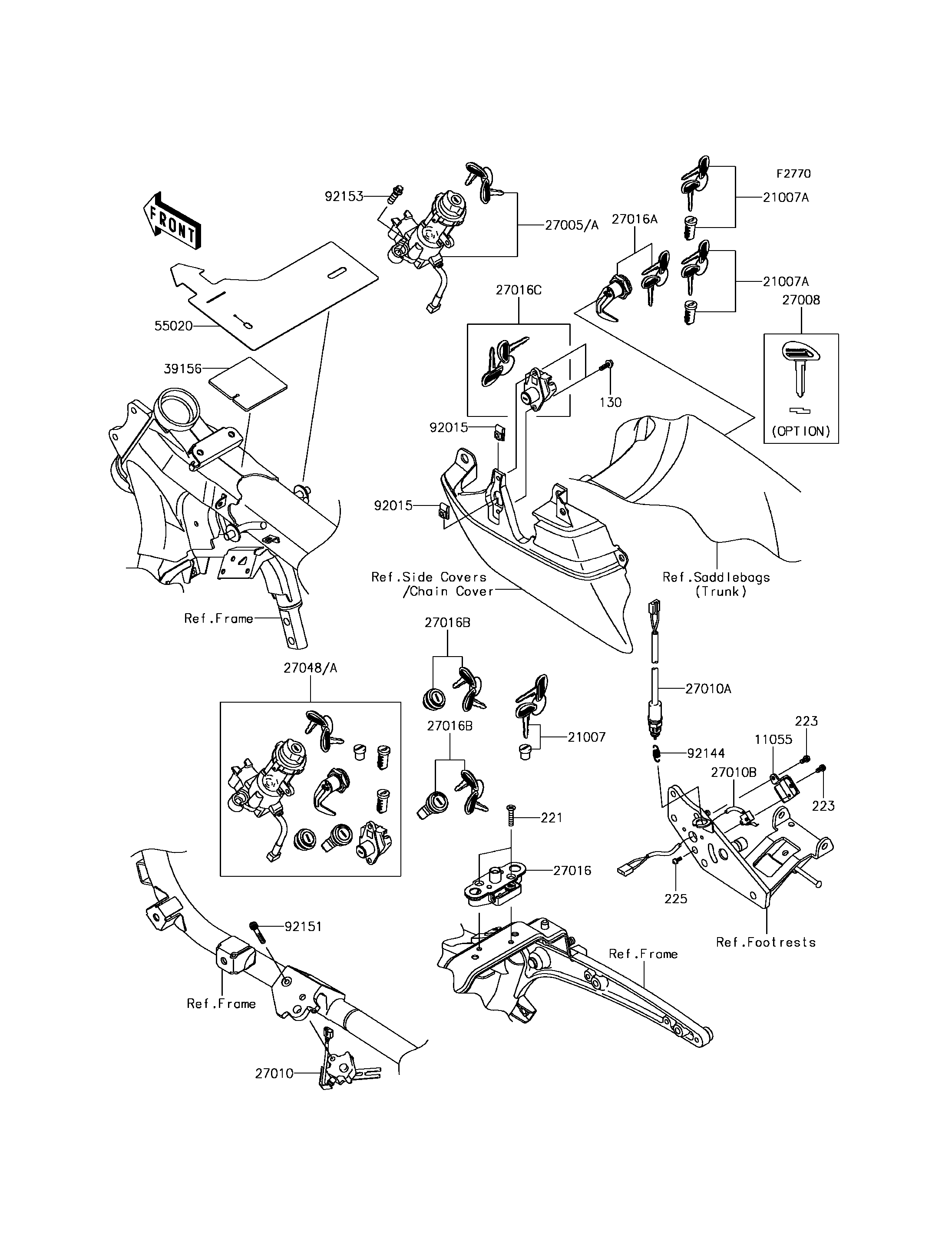

2015 Vulcan 1700 Voyager ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
221
223
223
225
11055
21007
21007A
21007A
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27016B
27016C
27048
39156
55020
92015
92015
92144
92151
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X16 130 130BA0516 2
SCREW-CSK-CROS,6X30 221 221AA0630 2
SCREW-PAN-WS-CROS,5X10 223 223AB0510 2
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
BRACKET,CRUISE CONTROL SWITCH 11055 11055-0609 1
ROTOR,LOCK,TANK CAP 21007 21007-5053 1
ROTOR,PANNIER LOCK 21007A 21007-5065 2
SWITCH-ASSY-IGNITION 27005 27005-0587 1
KEY-LOCK,BLANK 27008 27008-1211 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0088 1
SWITCH,REAR BRAKE 27010A 27010-0089 1
SWITCH,CRUISE CONTROL 27010B 27010-0090 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,CENTER TRUNK 27016A 27016-5357 1
LOCK-ASSY,LID 27016B 27016-5358 2
LOCK-ASSY,SEAT 27016C 27016-5359 1
SWITCH-ASSY 27048 27048-5036 1
PAD,95X101X5 39156 39156-2114 1
GUARD 55020 55020-1955 1
NUT,5MM 92015 92015-1710 2
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X35 92151 92151-1390 1
BOLT,TORX,8X22 92153 92153-1273 2
