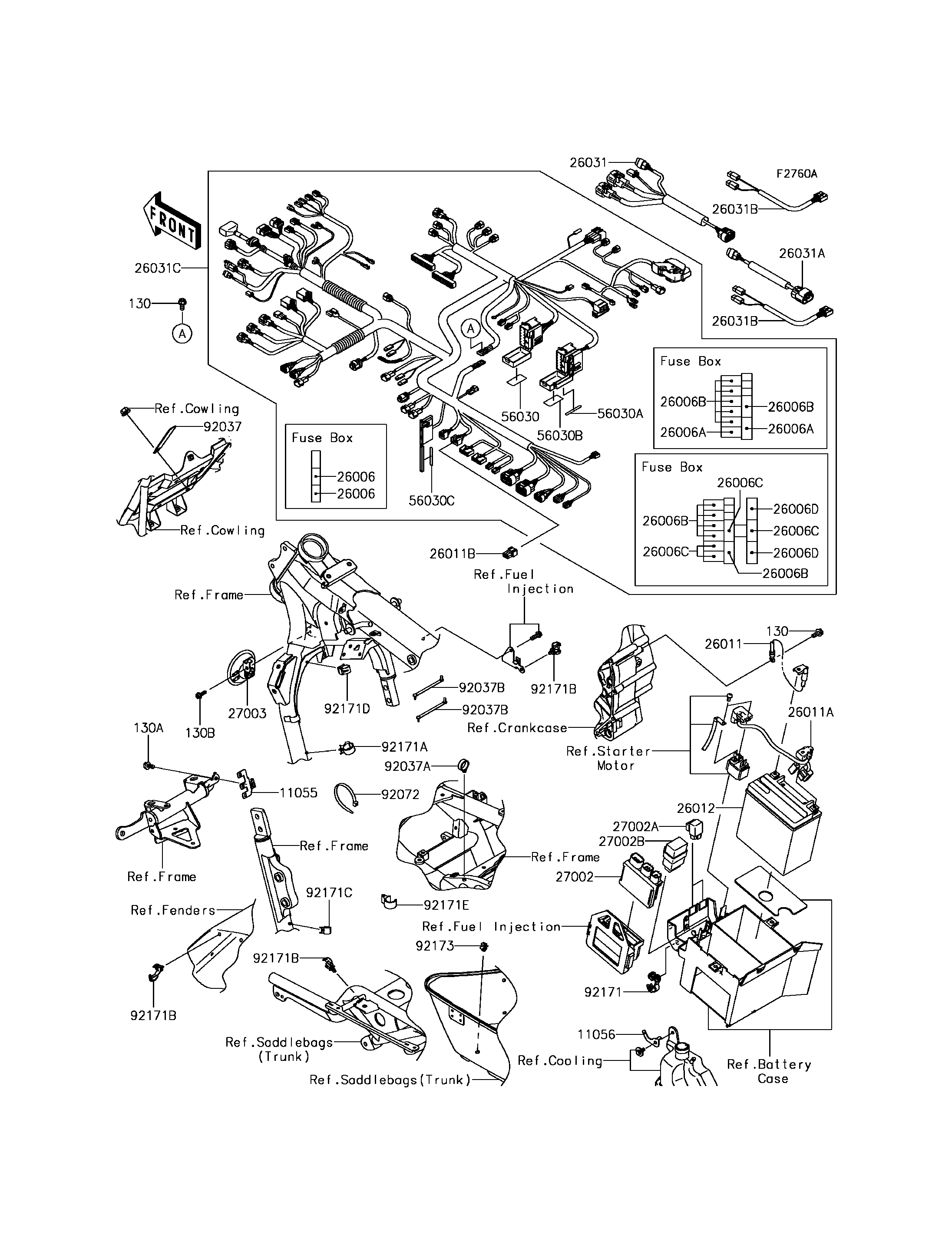

2015 Vulcan 1700 Voyager ABS - Chassis Electrical Equipment(BFF-BHF)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
11055
11056
26006
26006
26006A
26006A
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006D
26006D
26011
26011A
26011B
26012
26031
26031A
26031B
26031B
26031C
27002
27002A
27002B
27003
56030
56030A
56030B
56030C
92037
92037A
92037B
92037B
92072
92171
92171A
92171B
92171B
92171B
92171C
92171D
92171E
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,6X12 130A 130BB0612 1
BOLT-FLANGED,6X18 130B 130BB0618 1
BRACKET,CONNECTOR 11055 11055-0613 1
BRACKET,FUSE BOX 11056 11056-1777 1
FUSE,MINI BLADE,3A,VIOLET 26006 26006-0054 2
FUSE,MINI BLADE,5A,TAN 26006A 26006-1077 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 11
FUSE,MINI BLADE,20A,YELLOW 26006C 26006-1079 4
FUSE,MINI BLADE,30A,GREEN 26006D 26006-1080 2
WIRE-LEAD,BATTERY(-) 26011 26011-0180 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0193 1
WIRE-LEAD,CONNECTOR COVER 26011B 26011-0275 1
BATTERY,FTZ16-BS,12V 18AH 26012 26012-0589 1
HARNESS,RR,SUB 26031 26031-0646 1
HARNESS,HIGH MOUNT LAMP 26031A 26031-0678 1
HARNESS,SPEAKER 26031B 26031-0778 2
HARNESS,MAIN 26031C 26031-1739 1
RELAY-ASSY,BOX 27002 27002-0025 1
RELAY-ASSY 27002A 27002-1062 1
RELAY-ASSY,SIGNAL LAMP 27002B 27002-1113 1
HORN 27003 27003-0055 1
LABEL,FUSE BOX 56030 56030-0177 1
LABEL,FUSE BOX 56030A 56030-0189 1
LABEL,FUSE BOX 56030B 56030-0294 1
LABEL,FUSE BOX 56030C 56030-0766 1
CLAMP,HARNESS,L=100 92037 92037-1636 1
CLAMP,HOSE 92037A 92037-1827 1
CLAMP,SPEED,L=80.5 92037B 92037-1903 2
BAND,L=202 92072 92072-1195 1
CLAMP,CLIP,DIA=20 92171 92171-0068 1
CLAMP,20MM DIA. 92171A 92171-0081 1
CLAMP,13MM DIA. 92171B 92171-1415 3
CLAMP,10MM DIA. 92171C 92171-1423 1
CLAMP,15MM DIA. 92171D 92171-1424 1
CLAMP 92171E 92171-1460 1
CLAMP 92173 92173-1133 1
