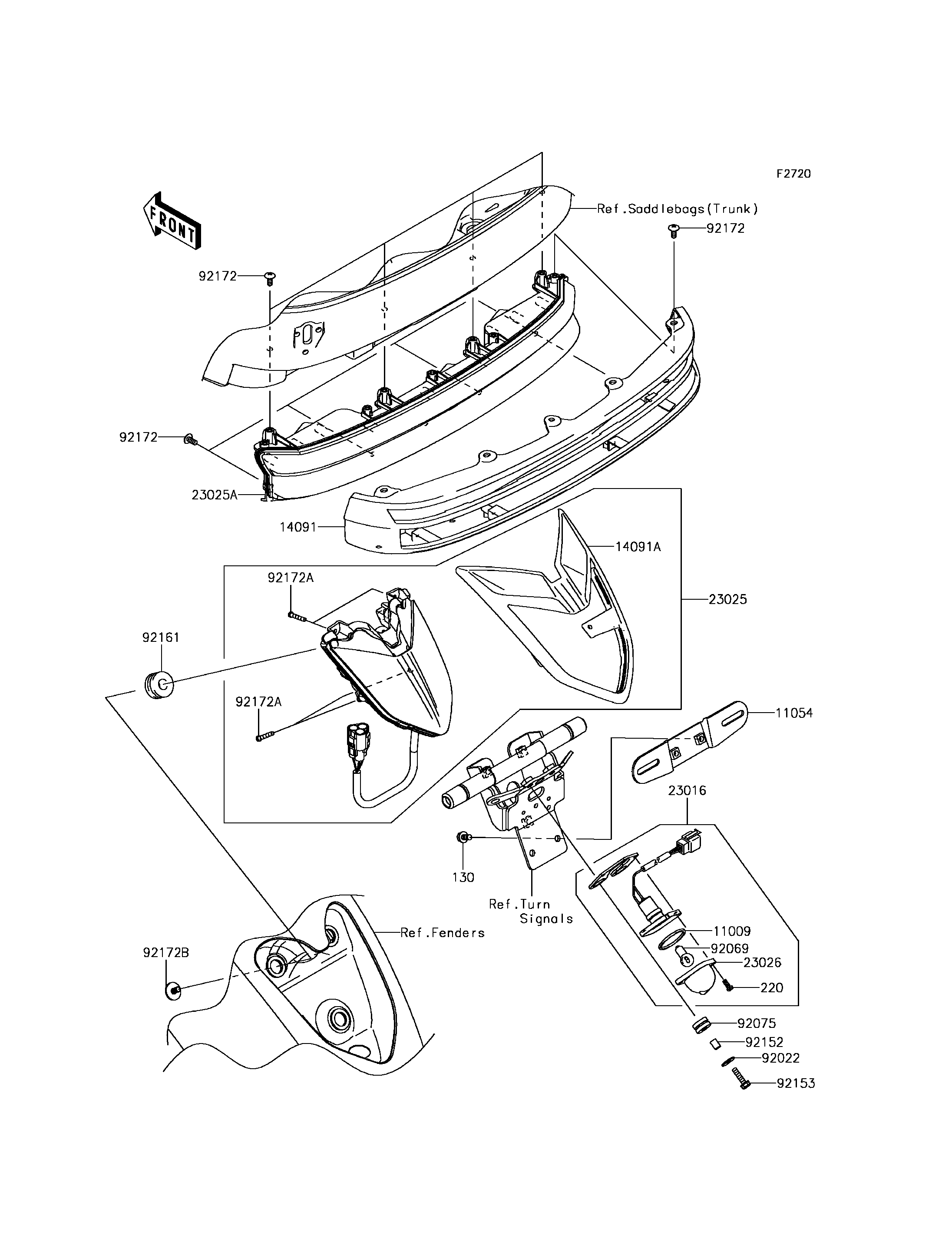

2015 Vulcan 1700 Voyager ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
220
11009
11054
14091
14091A
23016
23025
23025A
23026
92022
92069
92075
92152
92153
92161
92172
92172
92172
92172A
92172A
92172B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 2
SCREW-PAN-CROS,4X10 220 220AA0410 2
GASKET,LICENSE PLATE LAMP 11009 11009-1372 1
BRACKET,LICENSE 11054 11054-1761 1
COVER,HIGH MOUNT LAMP 14091 14091-0955 1
COVER,TAIL LAMP 14091A 14091-1592 1
LAMP-ASSY,LICENSE 23016 23016-0032 1
LAMP-TAIL 23025 23025-0052 1
LAMP-TAIL,HIGH MOUNT 23025A 23025-0053 1
LENS,LAMP 23026 23026-1054 1
WASHER,6.5X20X1.6 92022 92022-1557 2
BULB,12V 5W 92069 92069-1055 1
DAMPER 92075 92075-209 2
COLLAR,6.8X10X13 92152 92152-0580 2
BOLT,FLANGED,6X25 92153 92153-0514 2
DAMPER 92161 92161-0163 3
SCREW,TAPPING,5X14 92172 92172-0006 13
SCREW,TAPPING,4X16 92172A 92172-0392 4
SCREW,TAPPING+PW,5X14 92172B 92172-0477 3
