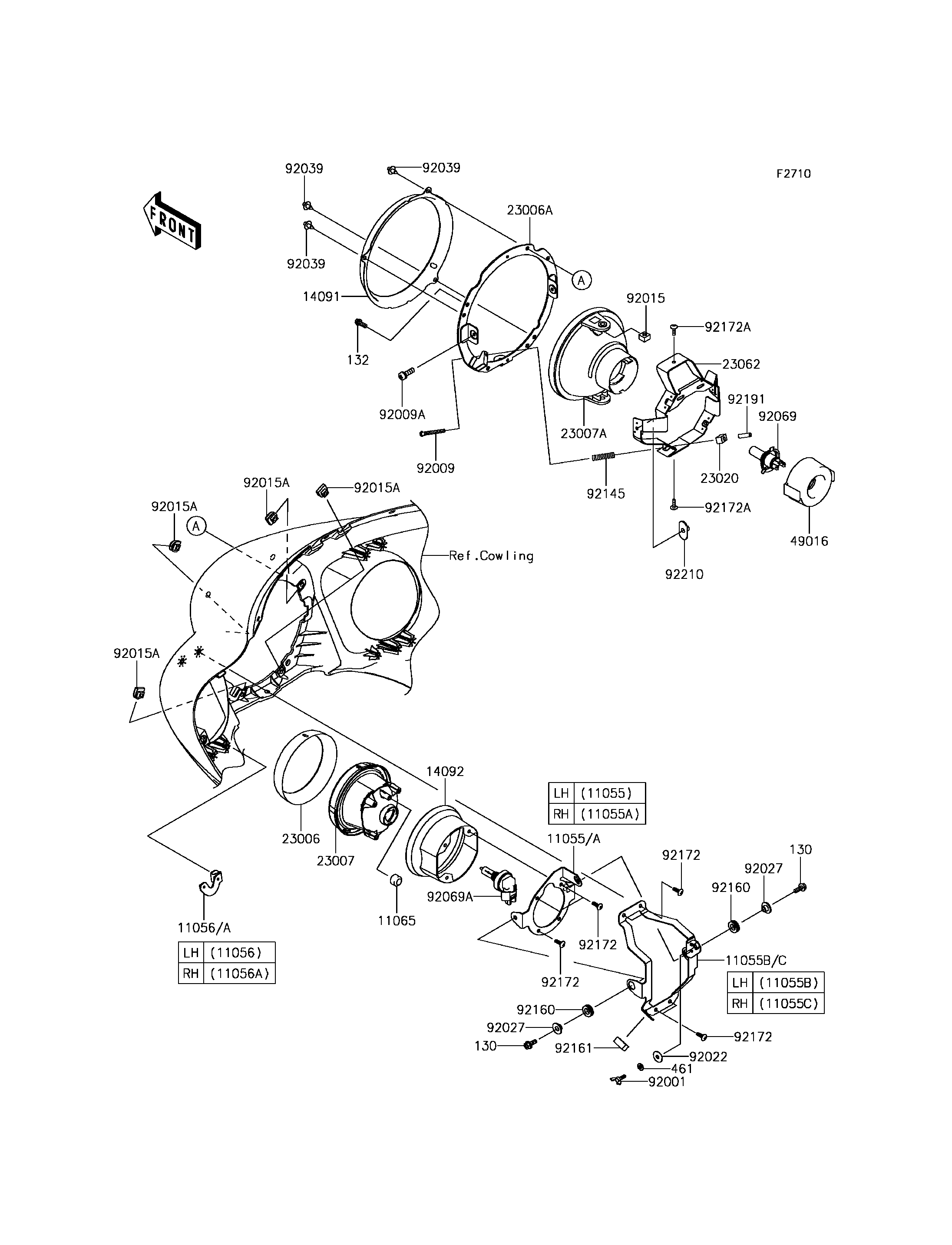

2015 Vulcan 1700 Voyager ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
461
11055
11055A
11055B
11055C
11056
11056A
11065
14091
14092
23006
23006A
23007
23007A
23020
23062
49016
92001
92009
92009A
92015
92015A
92015A
92015A
92015A
92022
92027
92027
92039
92039
92039
92069
92069A
92145
92160
92160
92161
92172
92172
92172
92172
92172A
92172A
92191
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130AA0616 4
BOLT-FLANGED-SMALL,6X16 132 132BA0616 4
WASHER-SPRING,6MM 461 461DA0600 2
BRACKET,AIMING,LH 11055 11055-0730 1
BRACKET,AIMING,RH 11055A 11055-0990 1
BRACKET,AIMING,LH 11055B 11055-1779 1
BRACKET,AIMING,RH 11055C 11055-1780 1
BRACKET,SUB LAMP,LH,LWR 11056 11056-1145 1
BRACKET,SUB LAMP,RH,LWR 11056A 11056-1146 1
CAP 11065 11065-0135 2
COVER,RETAINER 14091 14091-1620 1
COVER 14092 14092-0130 2
RIM-LAMP 23006 23006-0015 2
RIM-LAMP 23006A 23006-0016 1
LENS-COMP,SUB LAMP 23007 23007-0118 2
LENS-COMP,HEAD LAMP 23007A 23007-1396 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
BRACKET-COMP,HEAD LAMP 23062 23062-1132 1
COVER-SEAL,SOCKET 49016 49016-1203 1
BOLT,WING,6X15 92001 92001-1703 2
SCREW,FOCUS ADJUST,4X60 92009 92009-1816 2
SCREW,5X16 92009A 92009-1879 2
NUT,5MM 92015 92015-1157 2
NUT,CLIP,6MM 92015A 92015-1904 4
WASHER,6.5X20X1.6 92022 92022-1557 2
COLLAR,L=7.4 92027 92027-1848 4
RIVET 92039 92039-0083 3
BULB,12V 60/55W,H4 92069 92069-0050 1
BULB,12V 35W,H8 92069A 92069-0054 2
SPRING,HEAD LAMP LENS 92145 92145-1268 2
DAMPER 92160 92160-1278 4
DAMPER 92161 92161-0718 2
SCREW,TAPPING,5X16 92172 92172-0238 14
SCREW,TAPPING,4X16 92172A 92172-0391 2
TUBE,3.5X5.5X19 92191 92191-1217 2
NUT,SPECIAL,5MM 92210 92210-1060 2
