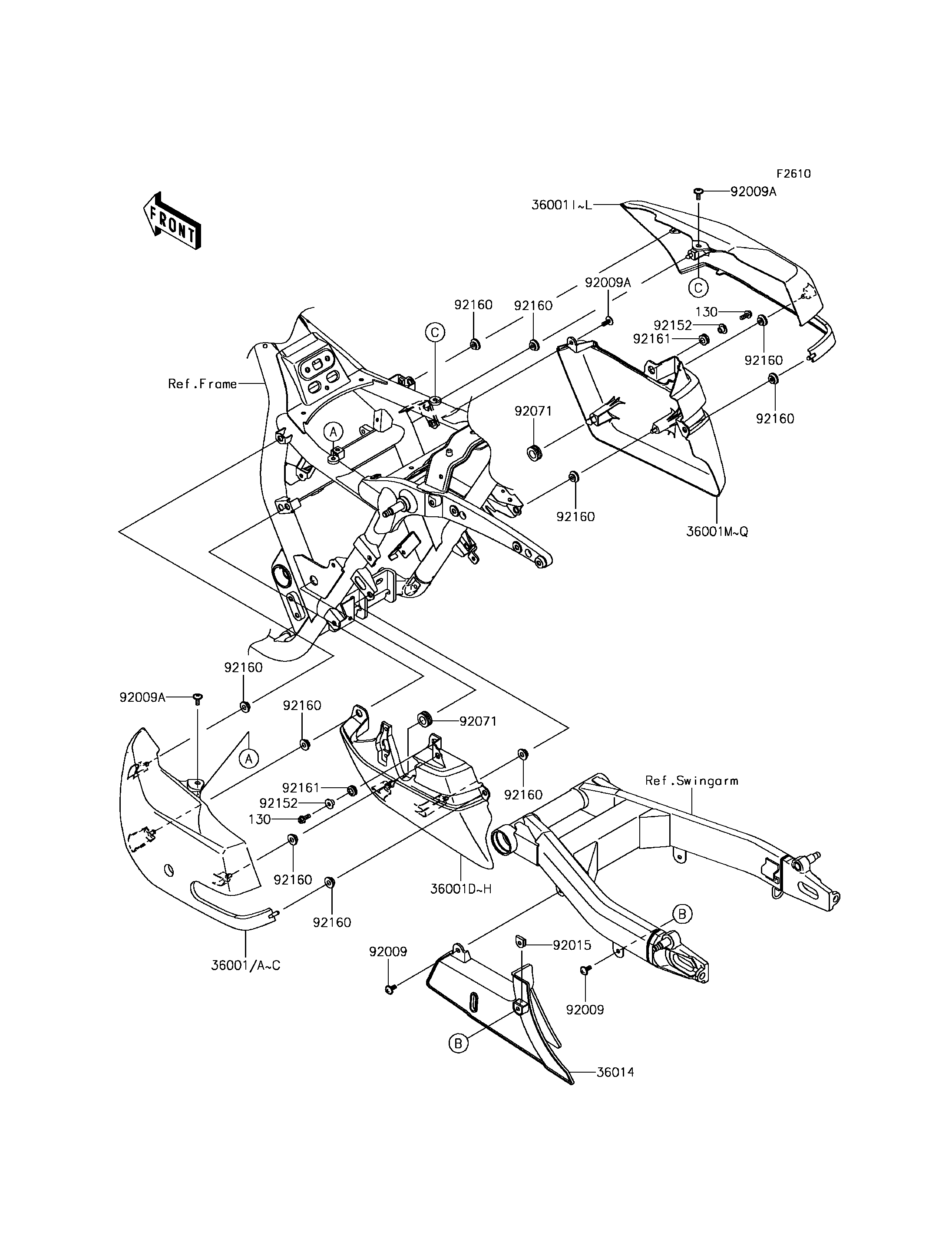

2015 Vulcan 1700 Voyager ABS - Side Covers/Chain Cover
130
130
36001A
36001F
36001J
36001O
36014
92009
92009
92009A
92009A
92009A
92015
92071
92071
92152
92152
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 | ||
| COVER-SIDE,LH,UPP,M.S.BLACK | 36001A | 36001-0139-660 | 1 | ||
| COVER-SIDE,LH,LWR,M.S.BLACK | 36001F | 36001-0140-660 | 1 | ||
| COVER-SIDE,RH,UPP,M.S.BLACK | 36001J | 36001-0141-660 | 1 | ||
| COVER-SIDE,RH,LWR,M.S.BLACK | 36001O | 36001-0142-660 | 1 | ||
| CASE-CHAIN | 36014 | 36014-0042 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1555 | 2 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 3 | ||
| NUT,CLIP,6MM | 92015 | 92015-1904 | 1 | ||
| GROMMET | 92071 | 92071-1131 | 2 | ||
| COLLAR | 92152 | 92152-0295 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 10 | ||
| DAMPER | 92161 | 92161-0266 | 2 |
