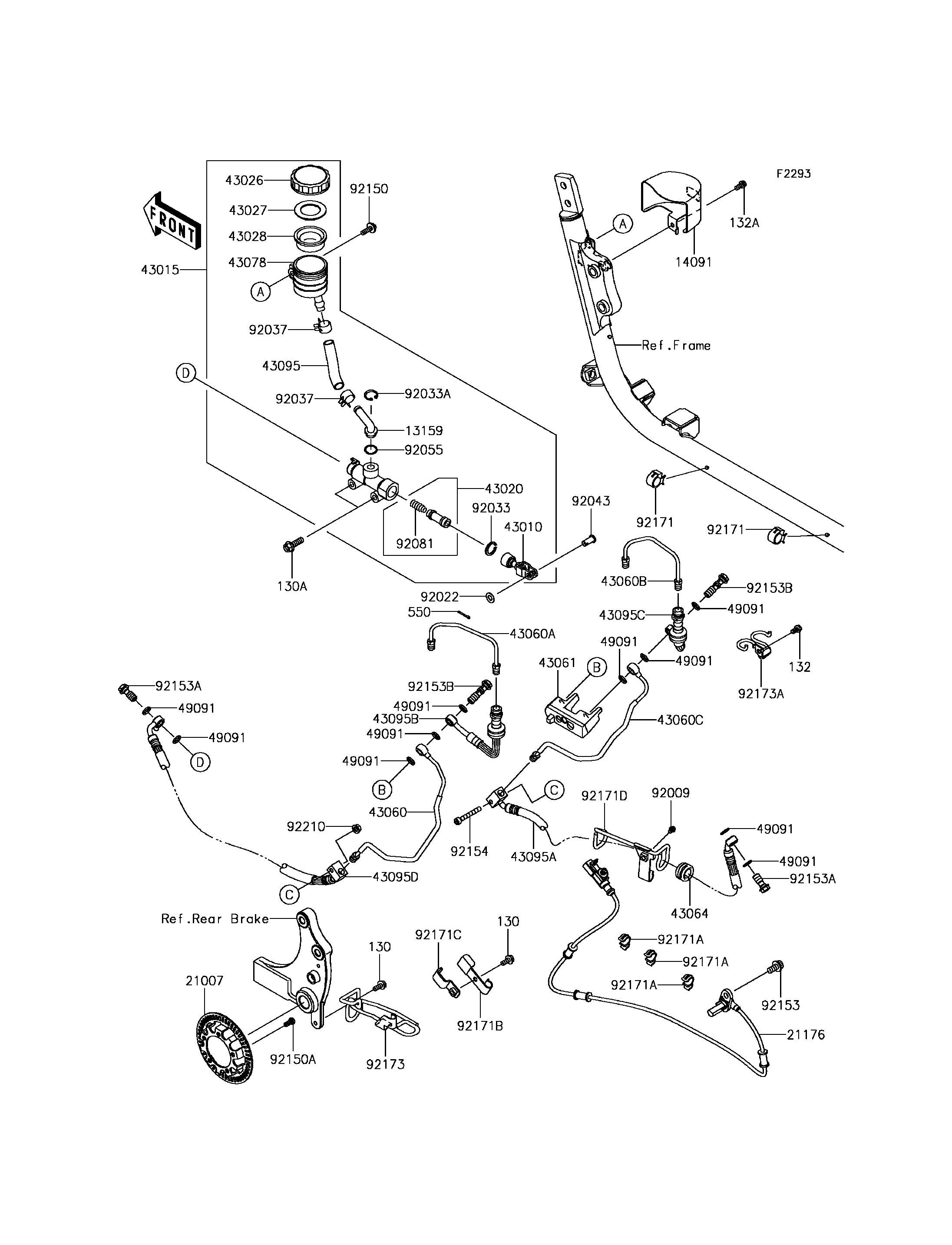

2015 Vulcan 1700 Voyager ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13159
13159
14091
14091
21007
21007
21176
21176
43010
43010
43015
43015
43020
43020
43026
43026
43027
43027
43028
43028
43060
43060
43060A
43060A
43060B
43060B
43060C
43060C
43061
43061
43064
43064
43078
43078
43095
43095
43095A
43095A
43095B
43095B
43095C
43095C
43095D
43095D
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92009
92009
92022
92022
92033
92033
92033A
92033A
92037
92037
92037
92037
92043
92043
92055
92055
92081
92081
92150
92150
92150A
92150A
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92154
92154
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171B
92171B
130
130
130
130
130A
130A
132
132
132A
132A
550
550
92171C
92171C
92171D
92171D
92173
92173
92173A
92173A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK 14091 14091-1595 1
ROTOR,SPEED SENSOR 21007 21007-0115 1
SENSOR,SPEED,RR 21176 21176-0104 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0081 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
PIPE-BRAKE,RR M/CYLINDER-(HU) 43060 43060-0078 1
PIPE-BRAKE,(RR M/CYLINDER)-HU 43060A 43060-0079 1
PIPE-BRAKE,HU-(RR CALIPER) 43060B 43060-0080 1
PIPE-BRAKE,(HU)-RR CALIPER 43060C 43060-0081 1
JOINT-BRAKE 43061 43061-0006 1
GROMMET,HOSE CLAMP 43064 43064-007 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1178 1
HOSE-BRAKE,RR MASTER CYLINDER 43095 43095-0306 1
HOSE-BRAKE,HU-RR CALIPER 43095A 43095-0391 1
HOSE-BRAKE,(RR M/CYLINDER)-HU 43095B 43095-0520 1
HOSE-BRAKE,HU-(RR CALIPER) 43095C 43095-0521 1
HOSE-BRAKE,RR M/CYLINDER-(HU) 43095D 43095-0524 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 10
SCREW,6X10 92009 92009-1661 1
WASHER,8.5X16X1.2 92022 92022-1582 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
PIN,8X16 92043 92043-1013 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,FLANGED,6X20 92150 92150-1339 1
BOLT,SOCKET,6X14 92150A 92150-1836 5
BOLT,SOCKET,8X16 92153 92153-0327 1
BOLT,OIL,L=23 92153A 92153-0627 2
BOLT,OIL,L=37 92153B 92153-1438 2
BOLT,SOCKET,6X45 92154 92154-0134 1
CLAMP,15MM DIA. 92171 92171-1424 2
CLAMP,BRAKE HOSE 92171A 92171-1819 3
CLAMP 92171B 92171-1826 1
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,8X25 130A 130BB0825 2
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 1
PIN-COTTER,2.0X15 550 550AA2015 1
CLAMP 92171C 92171-1827 1
CLAMP 92171D 92171-1828 1
CLAMP,BRAKE HOSE 92173 92173-0138 1
CLAMP,RR BRAKE HOSE 92173A 92173-0184 1
NUT,FLANGED,6MM 92210 92210-0630 1
