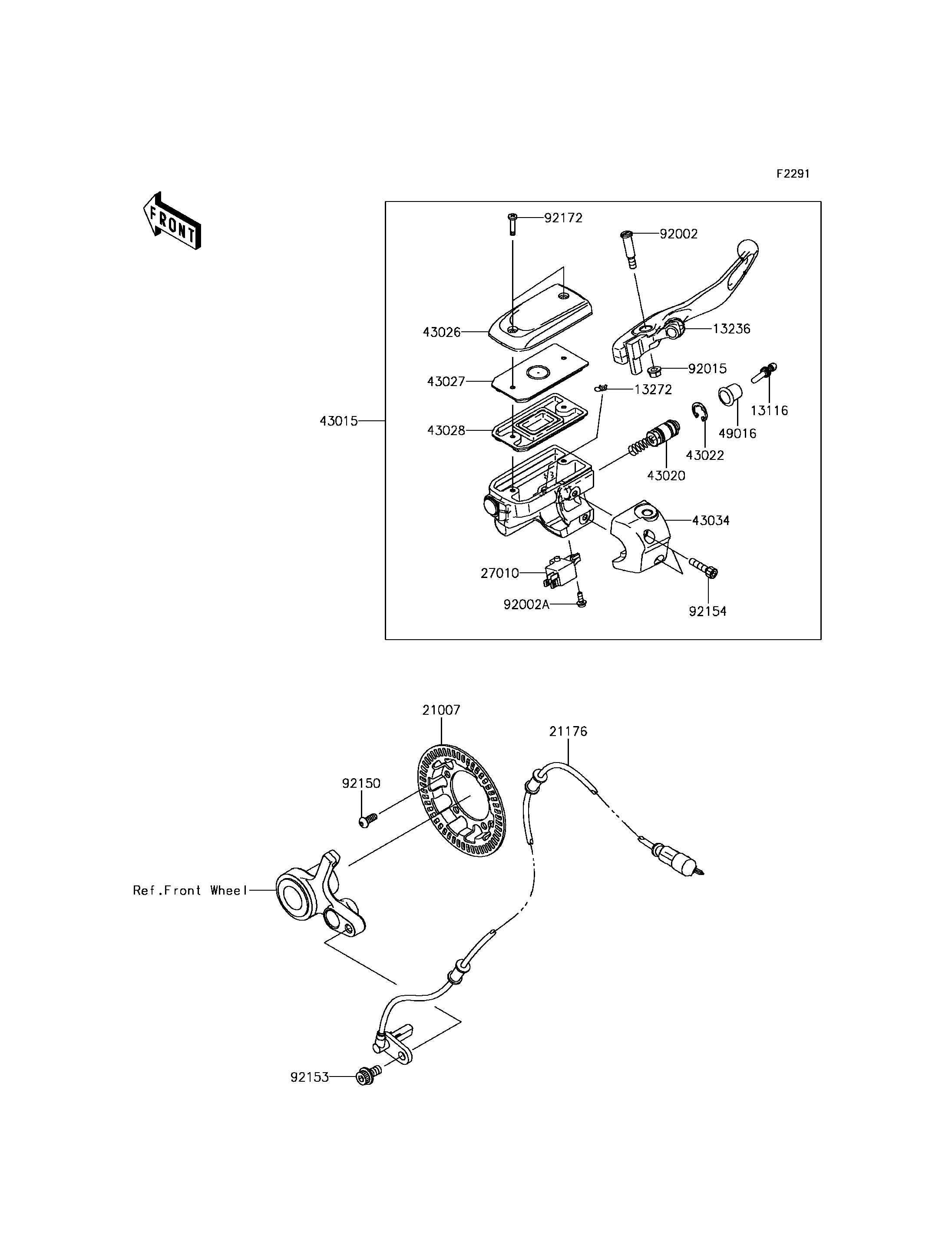

2015 Vulcan 1700 Voyager ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
13272
21007
21176
27010
43015
43020
43022
43026
43027
43028
43034
49016
92002
92002A
92015
92150
92153
92154
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH 13116 13116-0039 1
LEVER-COMP,FRONT BRAKE 13236 13236-0166 1
PLATE 13272 13272-0573 1
ROTOR,SPEED SENSOR 21007 21007-0115 1
SENSOR,FR,SPEED 21176 21176-0138 1
SWITCH,CRUISE CONTROL CANCEL 27010 27010-1232 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0566 1
PISTON-COMP-BRAKE 43020 43020-0014 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0053 1
PLATE-DIAPHRAGM 43027 43027-0004 1
DIAPHRAGM 43028 43028-0010 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0041 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,SOCKET,6X14 92150 92150-1836 5
BOLT,SOCKET,8X16 92153 92153-0327 1
BOLT,SOCKET 92154 92154-0167 2
SCREW,4MM 92172 92172-0385 2
