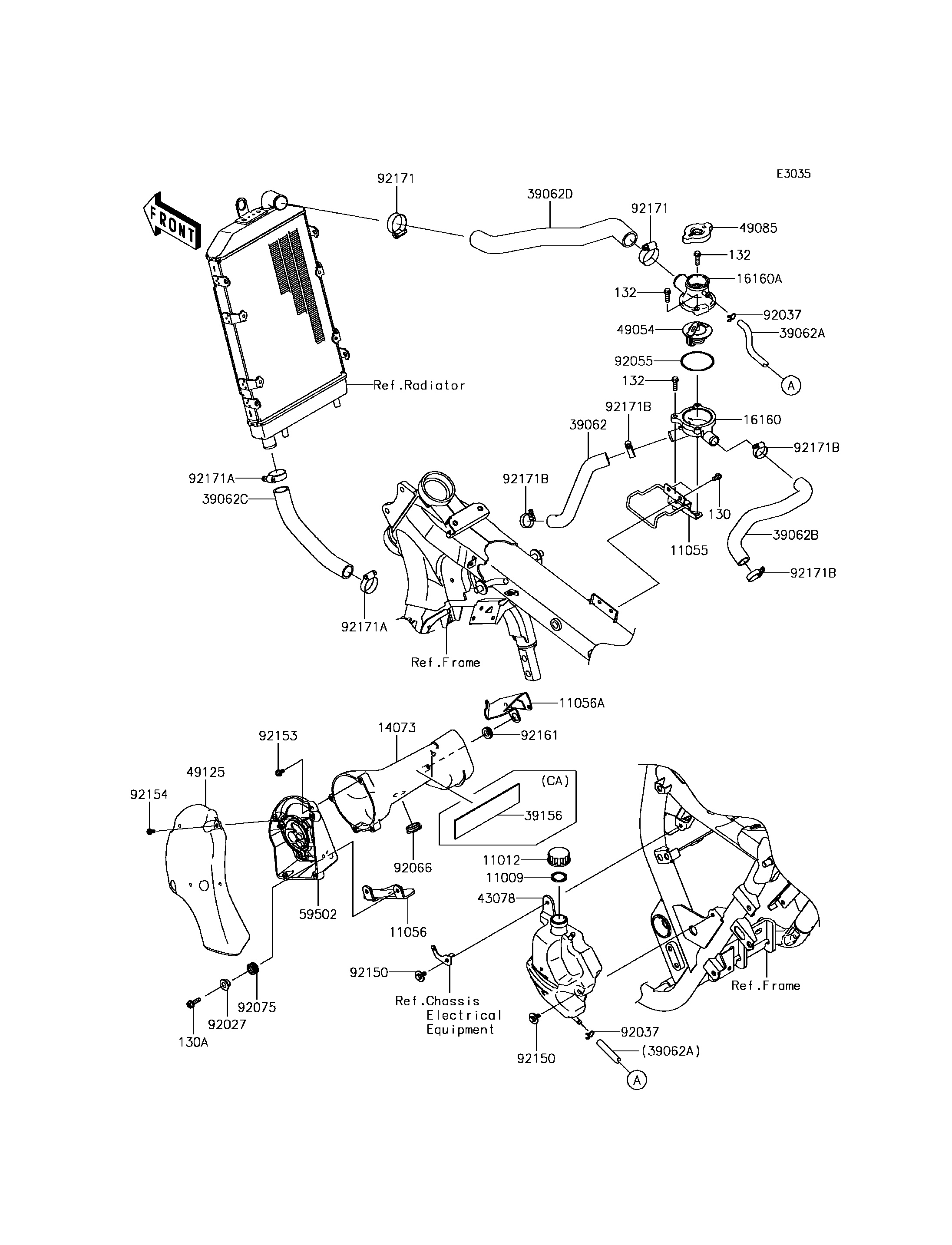

2015 Vulcan 1700 Voyager ABS - Cooling

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
132
132
11009
11012
11055
11056
11056A
14073
16160
16160A
39062
39062A
39062B
39062C
39062D
43078
49054
49085
49125
59502
92027
92037
92037
92055
92066
92075
92150
92150
92153
92154
92161
92171
92171
92171A
92171A
92171B
92171B
92171B
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,6X20 130A 130BA0620 2
BOLT-FLANGED-SMALL,6X20 132 132BA0620 3
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,THERMOCASE 11055 11055-0571 1
BRACKET 11056 11056-1471 1
BRACKET 11056A 11056-1948 1
DUCT 14073 14073-0739 1
BODY,LWR 16160 16160-0158 1
BODY,UPP 16160A 16160-1152 1
HOSE-COOLING,FR HEAD-THERMO 39062 39062-0245 1
HOSE-COOLING 39062A 39062-0291 1
HOSE-COOLING,RR HEAD-THERMO 39062B 39062-0315 1
HOSE-COOLING,RAD-W/P IN PIPE 39062C 39062-0600 1
HOSE-COOLING,THERMO-RAD 39062D 39062-0601 1
RESERVOIR 43078 43078-0067 1
THERMOSTAT 49054 49054-0004 1
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
SHROUD 49125 49125-0565 1
FAN-ASSY 59502 59502-0563 1
COLLAR,L=9.6 92027 92027-1045 2
CLAMP,TUBE 92037 92037-147 2
RING-O,53.5X2.6 92055 92055-0831 1
PLUG 92066 92066-1389 1
DAMPER 92075 92075-1634 2
BOLT,FLANGED,6X14,WASHER 92150 92150-1392 2
BOLT,FLANGED,5X10 92153 92153-1881 4
BOLT,SOCKET,5X10 92154 92154-0211 4
DAMPER 92161 92161-1451 1
CLAMP 92171 92171-0179 2
CLAMP 92171A 92171-0261 2
CLAMP 92171B 92171-0338 4
PAD,160X40X2 39156 39156-0845 1 CA
