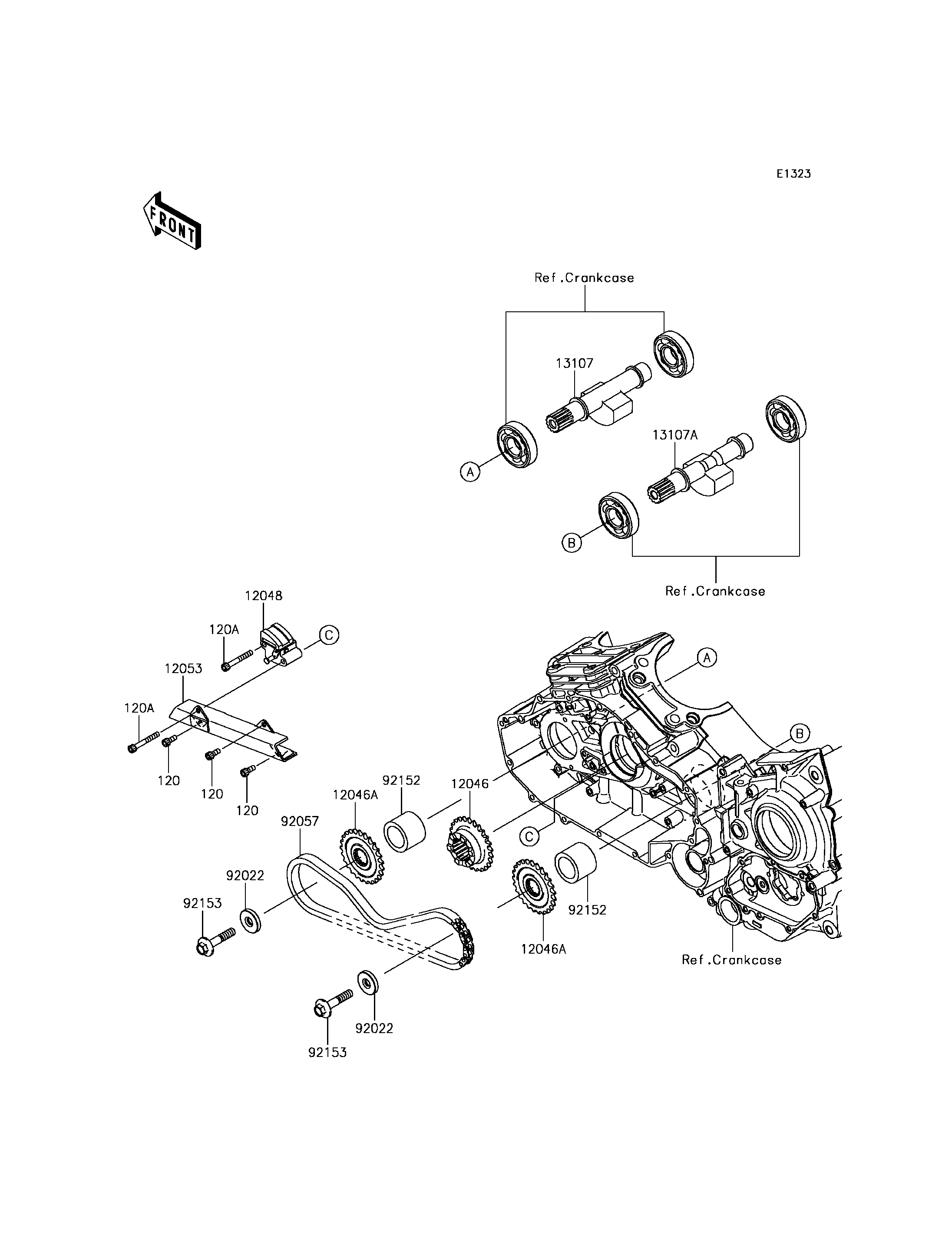

2015 Vulcan 1700 Voyager ABS - Balancer
120
120
120
120A
120A
12046
12046A
12046A
12048
12053
13107
13107A
92022
92022
92057
92152
92152
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X14 | 120 | 120CA0614 | 3 | ||
| BOLT-SOCKET,6X45 | 120A | 120CA0645 | 2 | ||
| SPROCKET,CRANK,25T | 12046 | 12046-0066 | 1 | ||
| SPROCKET,BALANCER,25T | 12046A | 12046-0087 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-0005 | 1 | ||
| GUIDE-CHAIN,LONG | 12053 | 12053-0003 | 1 | ||
| SHAFT,BALANCER,FR | 13107 | 13107-0185 | 1 | ||
| SHAFT,BALANCER,RR | 13107A | 13107-0211 | 1 | ||
| WASHER,10X33X6 | 92022 | 92022-1906 | 2 | ||
| CHAIN,DID 06FS-SDH | 92057 | 92057-0563 | 1 | ||
| COLLAR | 92152 | 92152-0840 | 2 | ||
| BOLT,10X50 | 92153 | 92153-0317 | 2 |
