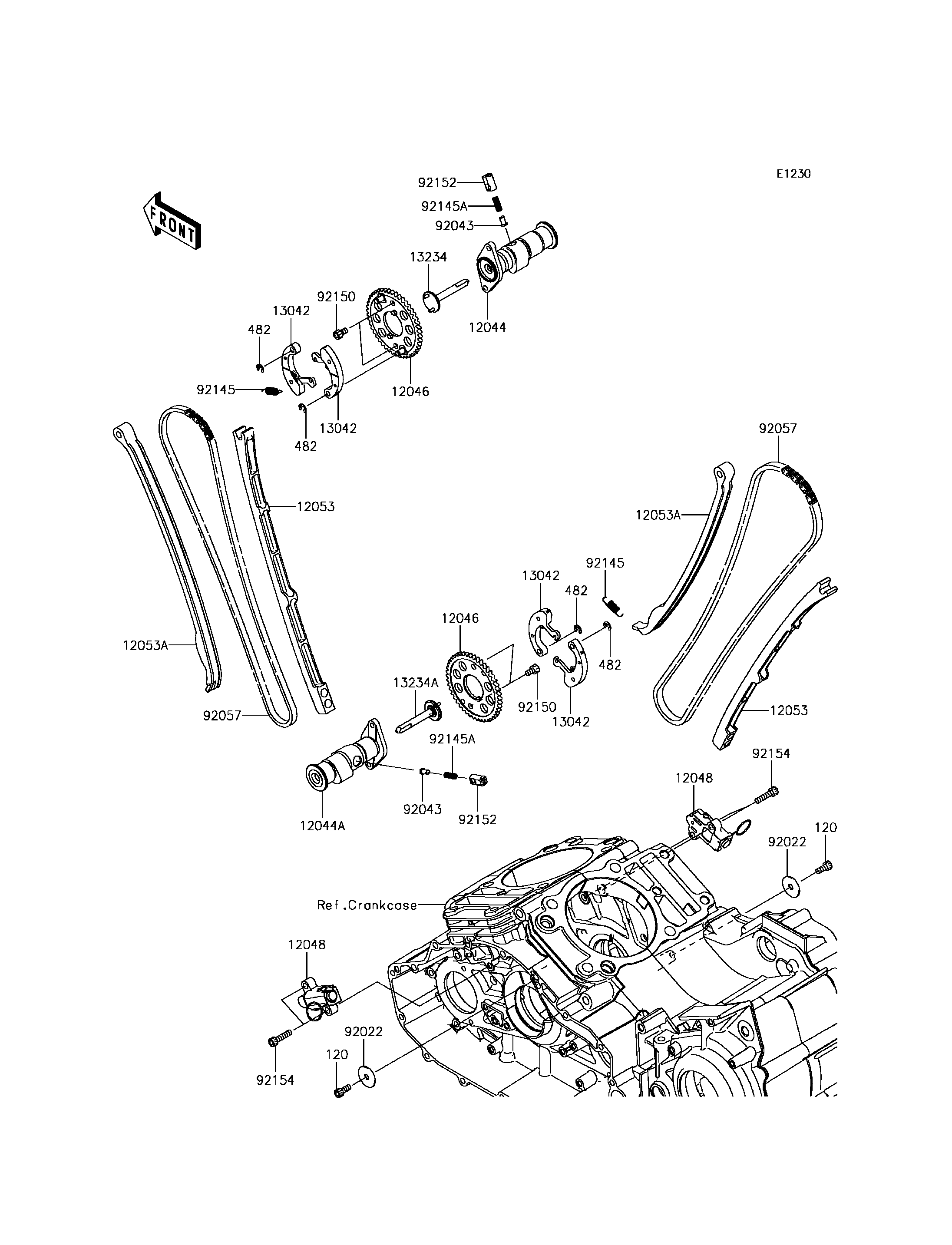

2015 Vulcan 1700 Voyager ABS - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
120
120
482
482
482
482
12044
12044A
12046
12046
12048
12048
12053
12053
12053A
12053A
13042
13042
13042
13042
13234
13234A
92022
92022
92043
92043
92057
92057
92145
92145
92145A
92145A
92150
92150
92152
92152
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X14 120 120CA0614 2
CIRCLIP-TYPE-E,5MM 482 482J5000 4
CAMSHAFT-VALVE,FR 12044 12044-0134 1
CAMSHAFT-VALVE,RR 12044A 12044-0135 1
SPROCKET,CAMSHAFT,46T 12046 12046-0064 2
TENSIONER-ASSY,CAM CHAIN 12048 12048-0053 2
GUIDE-CHAIN,FIXED SIDE 12053 12053-0120 2
GUIDE-CHAIN,TENSIONER SIDE 12053A 12053-0121 2
WEIGHT,DECOMP 13042 13042-0028 4
SHAFT-COMP,FR CAMSHAFT 13234 13234-0040 1
SHAFT-COMP,RR CAMSHAFT 13234A 13234-0041 1
WASHER,7X27X1.6 92022 92022-227 2
PIN 92043 92043-0163 2
CHAIN,CAM,98XRH2010-146M 92057 92057-0154 2
SPRING,8X0.4X20 92145 92145-0586 2
SPRING,5.9X0.4X16.5 92145A 92145-0589 2
BOLT,SOCKET,6X10 92150 92150-1650 4
COLLAR 92152 92152-0650 2
BOLT,SOCKET,6X25 92154 92154-0477 4
