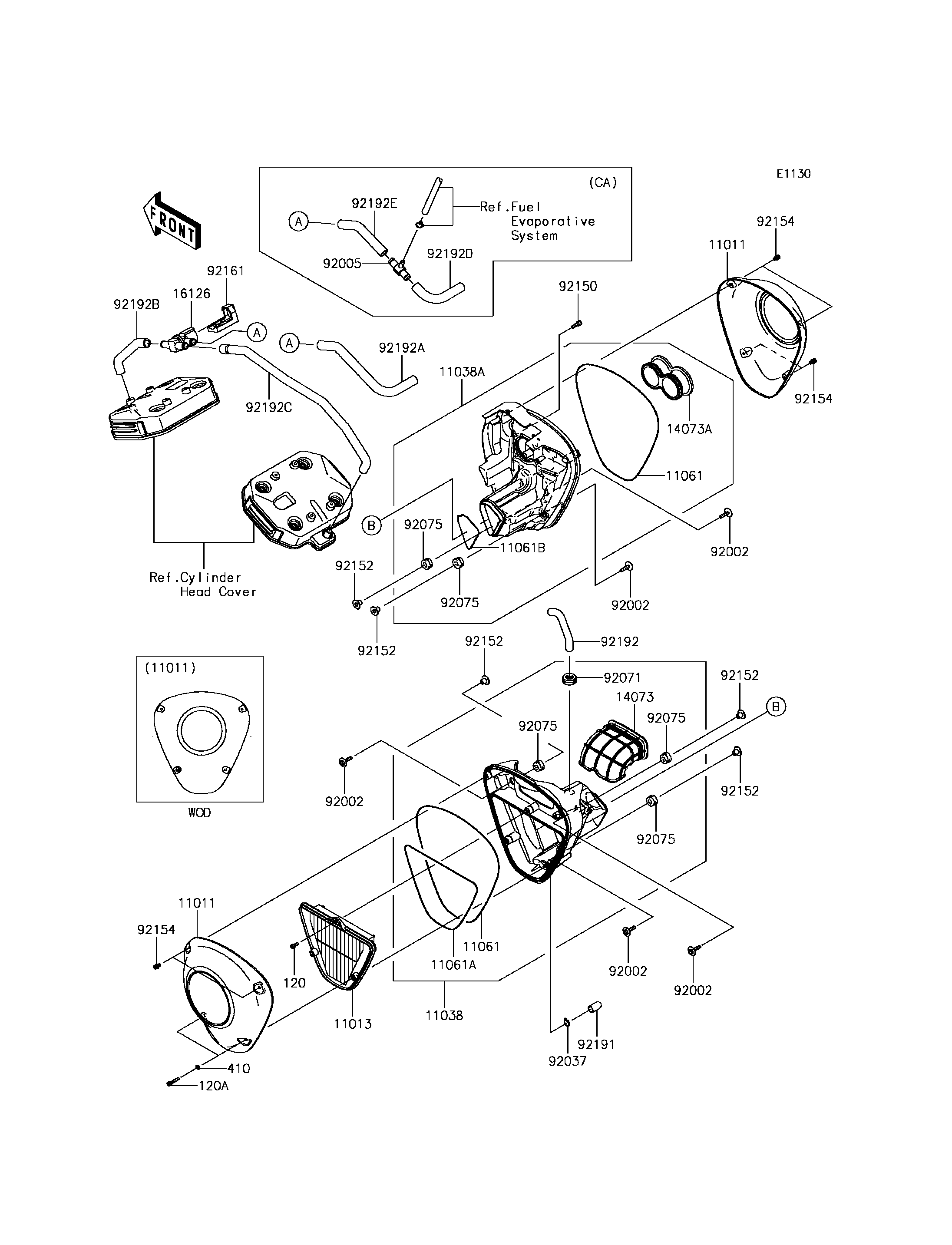

2015 Vulcan 1700 Voyager ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
120
120A
410
11011
11011
11013
11038
11038A
11061
11061
11061A
11061B
14073
14073A
16126
92002
92002
92002
92002
92002
92037
92071
92075
92075
92075
92075
92075
92150
92152
92152
92152
92152
92152
92154
92154
92154
92161
92191
92192
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CA0512 1
BOLT-SOCKET,5X25 120A 120R0525 2
W-PLAIN-S,5MM 410 410S0500 2
CASE-AIR FILTER 11011 11011-0119 2
ELEMENT-AIR FILTER 11013 11013-0031 1
CASE-ASSY-AIR FILTER,LH 11038 11038-0022 1
CASE-ASSY-AIR FILTER,RH 11038A 11038-0023 1
GASKET,3X812 11061 11061-0346 2
GASKET,3X630 11061A 11061-0347 1
GASKET,3X222 11061B 11061-0367 1
DUCT,INTAKE 14073 14073-0202 1
DUCT,THROBO. FUNNEL 14073A 14073-0203 1
VALVE,AIR SWITCHING 16126 16126-1437 1
BOLT,6X25 92002 92002-1135 5
CLAMP,14.5MM 92037 92037-1900 1
GROMMET,AIR SUCTION VALVE 92071 92071-1249 1
DAMPER,RUBBER 92075 92075-1123 5
BOLT,6X18 92150 92150-1645 5
COLLAR,6.3X10X12 92152 92152-0694 5
BOLT,SOCKET,5X10 92154 92154-0131 6
DAMPER 92161 92161-0309 1
TUBE 92191 92191-1704 1
TUBE,BREATHER 92192 92192-0650 1
TUBE,FR HEAD-ASWV 92192B 92192-0652 1
TUBE,RR HEAD-ASWV 92192C 92192-0653 1
FITTING 92005 92005-0054 1 CA
TUBE,A/C-ASWV 92192A 92192-0651 1 CNUS
TUBE,ASWV-FITTING 92192D 92192-0654 1 CA
TUBE,FITTING-A/C 92192E 92192-0655 1 CA
