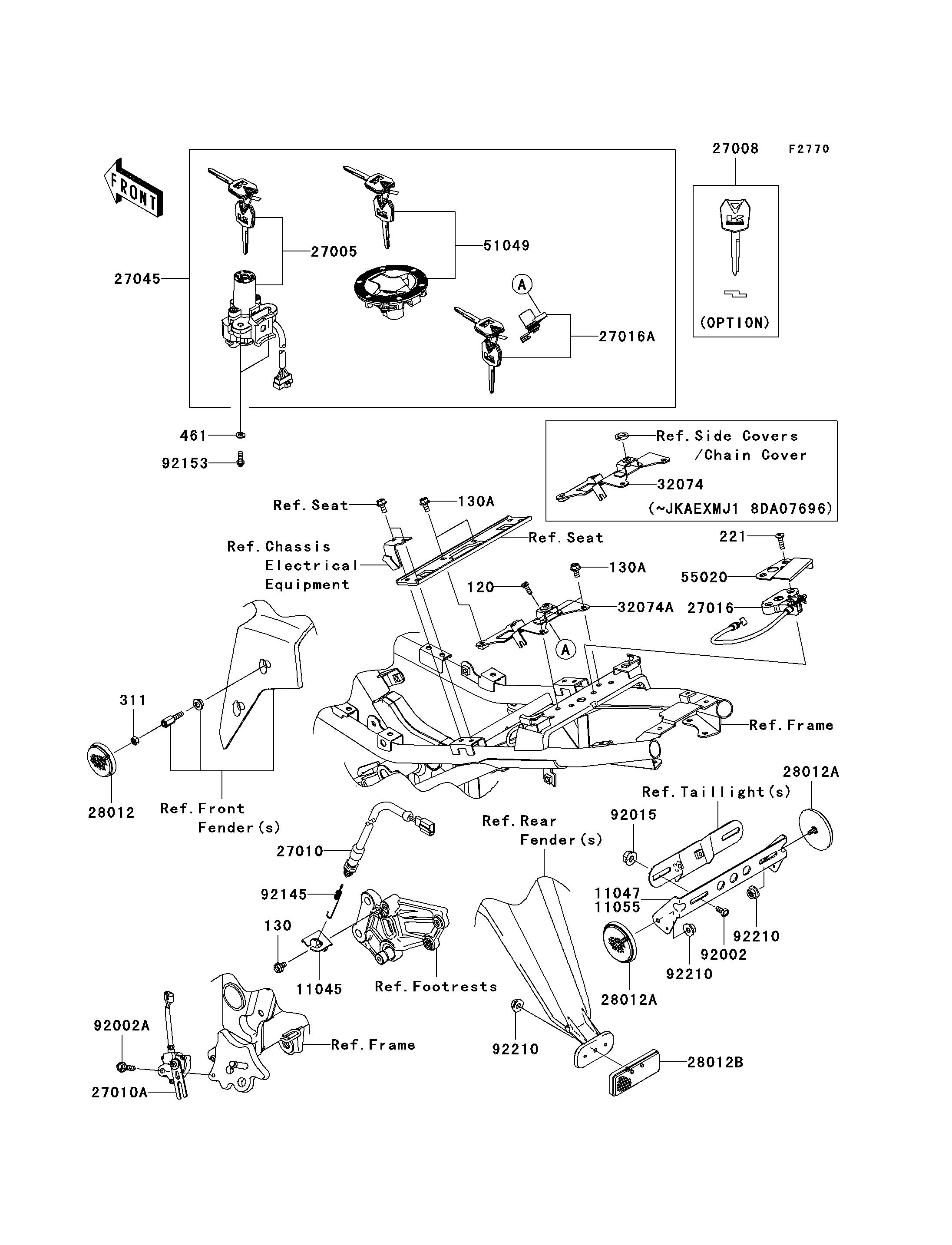

2009 Ninja® 250R - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
130
130A
130A
221
311
461
11045
11055
27005
27008
27010
27010A
27016
27016A
28012
28012A
28012A
28012B
32074A
55020
92002
92002A
92015
92145
92153
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 2
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BB0612 4
SCREW-CSK-CROSS,6X25 221 221AA0625 2
NUT-HEX 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
BRACKET,REAR BRAKE SWITCH 11045 11045-1641 1
BRACKET,REFLECTOR 11055 11055-1092 1
SWITCH-ASSY-IGNITION 27005 27005-5144 1
KEY-LOCK,BLANK 27008 27008-0053 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0080 1
SWITCH,SIDE STAND 27010A 27010-1455 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0022 1
LOCK-ASSY,SEAT 27016A 27016-5353 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BRACKET-LOCK 32074A 32074-0012 1 (JKAEXMJ1 8DA07697 - )
GUARD,SEAT LOCK 55020 55020-0466 1
BOLT,6X12 92002 92002-1132 2
BOLT,FLANGED,6X25 92002A 92002-1582 1
NUT,FLANGED,6MM 92015 92015-1367 2
SPRING,BRAKE LAMP SWITCH 92145 92145-0683 1
BOLT,TORX,6X16 92153 92153-0967 2
NUT,FLANGED,5MM 92210 92210-0007 3
SWITCH-ASSY 27045 27045-5390 1 CA
SWITCH-ASSY 27045A 27045-5421 1 CNUS
CAP-TANK,FUEL 51049 51049-5003 1 CA
CAP-TANK,FUEL 51049A 51049-5007 1 CNUS
