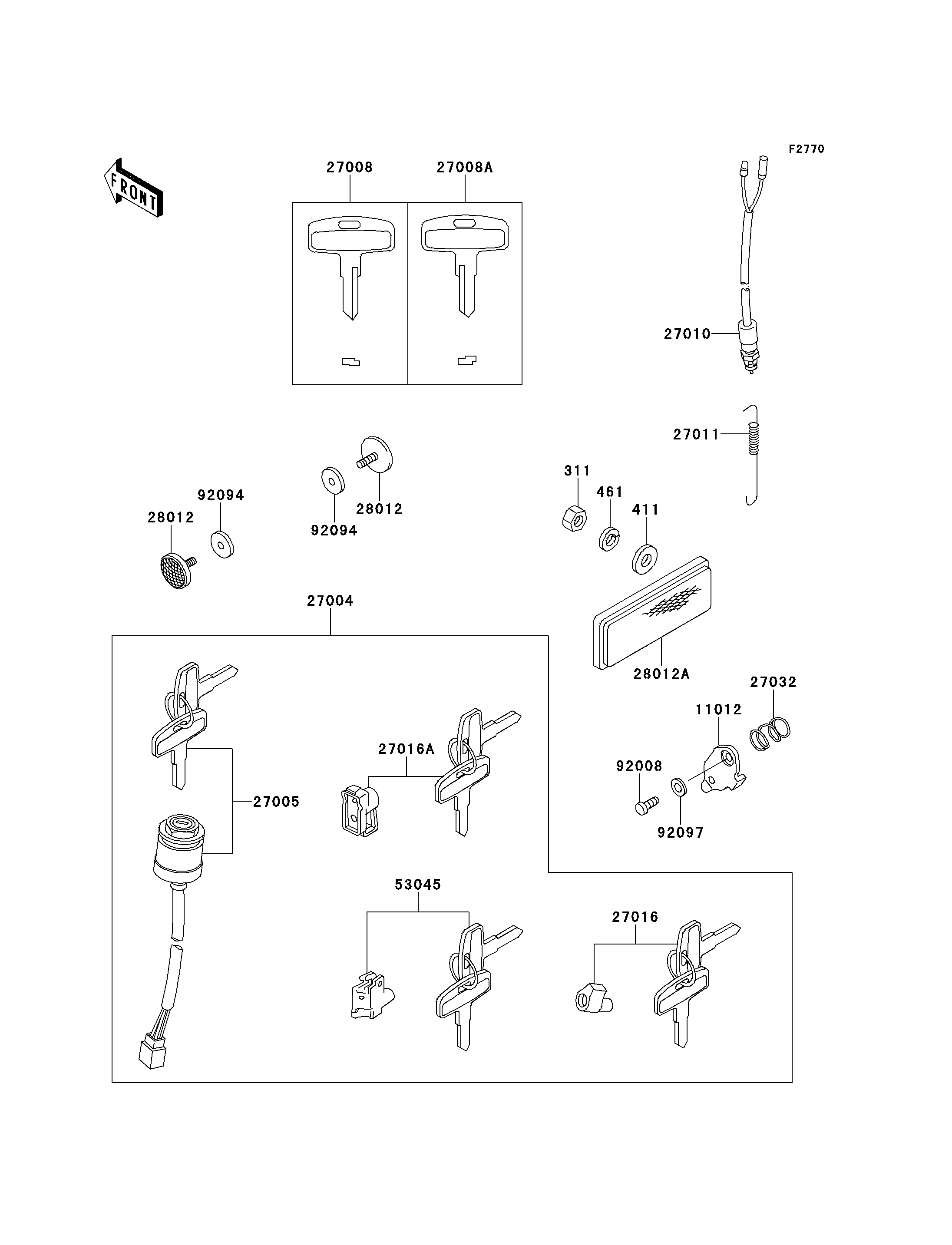

1997 KE100 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
311
411
461
11012
27004
27005
27008
27008A
27010
27011
27016
27016A
27032
28012
28012
28012A
53045
92008
92094
92094
92097
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311B0500 2
WASHER-PLAIN,5MM 411 411B0500 2
WASHER-SPRING,5MM 461 461F0500 2
CAP,STEERING LOCK 11012 11012-1134 1
SWITCH-ASSY 27004 27004-5276 1
SWITCH-ASSY-IGNITION 27005 27005-1054 1
KEY-LOCK,BLANK 27008 27008-1024 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1025 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-025 1
SPRING,BRAKE LAMP SWITCH 27011 27011-011 1
LOCK-ASSY,STEERING 27016 27016-042 1
LOCK-ASSY,HELMET 27016A 27016-5098 1
SPRING,STEERING LOCK 27032 27032-001 1
REFLECTOR-REFLEX,FR 28012 28012-016 2
REFLECTOR-REFLEX,RR 28012A 28012-1005 1
HOOK-ASSY,SEAT 53045 53045-014 1
SCREW,3.51MM 92008 92008-007 1
DAMPER,REFLECTOR 92094 92094-011 2
WASHER,WAVE 92097 92097-003 1
