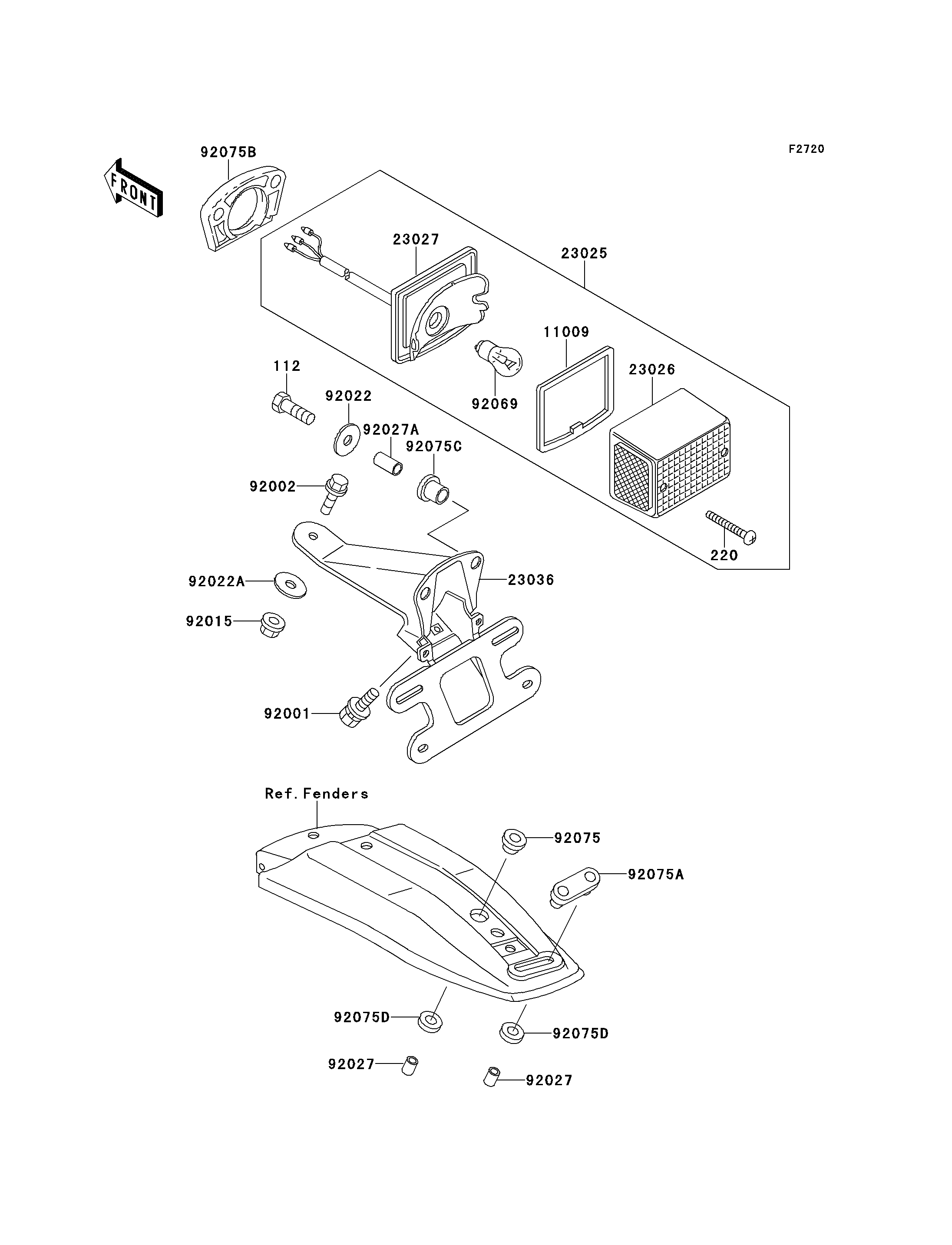

1997 KE100 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
112
220
11009
23025
23026
23027
23036
92001
92002
92015
92022
92022A
92027
92027
92027A
92069
92075
92075A
92075B
92075C
92075D
92075D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X25 112 112B0625 2
SCREW-PAN-CROS 220 220B0440 2
GASKET,TAIL LAMP LENS 11009 11009-1078 1
LAMP-TAIL 23025 23025-1032 1
LENS,TAIL LAMP 23026 23026-1003 1
BODY-COMP-TAIL LAMP 23027 23027-1020 1
BRACKET-TAIL LAMP 23036 23036-1010 1
BOLT 92001 92001-1768 2
BOLT,6X28 92002 92002-1125 1
NUT,FLANGED,6MM 92015 92015-1367 1
WASHER,6.5X20X1.6 92022 92022-125 2
WASHER,6.5X20X1.6 92022A 92022-1557 1
COLLAR,6.8X10X14.5 92027 92027-156 3
COLLAR,6.1X8X15.7 92027A 92027-1819 2
BULB,6V 32/3CP 92069 92069-074 1
DAMPER,TAIL LAMP 92075 92075-1004 1
DAMPER,TAIL LAMP 92075A 92075-1005 1
DAMPER,TAIL LAMP 92075B 92075-1094 1
DAMPER 92075C 92075-1095 2
DAMPER,RUBBER 92075D 92075-310 3
