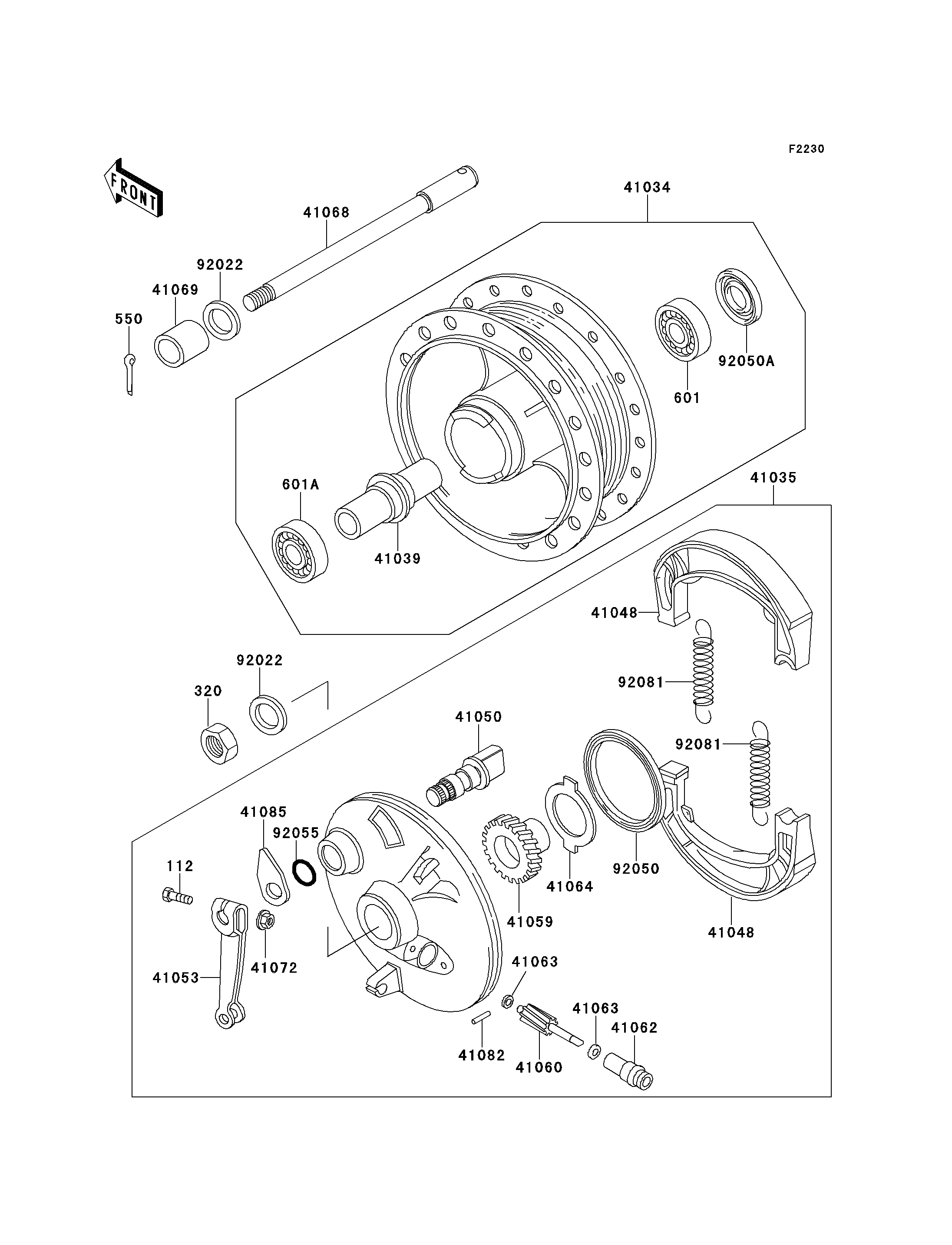

1997 KE100 - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
112
320
550
601
601A
41034
41035
41039
41048
41048
41050
41053
41059
41060
41062
41063
41063
41064
41068
41069
41072
41082
41085
92022
92022
92050
92050A
92055
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0630 1
NUT-CASTLE,10MM 320 320B1000 1
PIN-COTTER,2.5X25 550 550D2525 1
BEARING-BALL,#6200G 601 601B6200G 1
BEARING-BALL,#6300ZG 601A 601B6300ZG 1
DRUM-ASSY,FR 41034 41034-1047 1
PANEL-ASSY-BRAKE,FR 41035 41035-1291 1
COLLAR,L=51 41039 41039-002 1
SHOE-BRAKE 41048 41048-1085 2
CAM-BRAKE 41050 41050-018 1
LEVER-BRAKE CAM 41053 41053-005 1
GEAR-METER SCREW,22T 41059 41059-022 1
GEAR-METER SCREW,8T 41060 41060-004 1
BUSHING,SPEEDOMETER CABLE 41062 41062-005 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-010 1
AXLE,FR 41068 41068-1359 1
COLLAR,L=13 41069 41069-026 1
NUT,6MM 41072 41072-007 1
PIN,SPRING 41082 41082-001 1
INDICATOR,BRAKE SHOE 41085 41085-008 1
WASHER,10.5X22X1.6 92022 92022-1558 2
SEAL-OIL,BRAKE PANEL 92050 92050-002 1
SEAL-OIL,TC17317 92050A 92050-063 1
RING-O,BRAKE CAM 92055 92055-004 1
SPRING,BRAKE SHOE 92081 92081-1766 2
