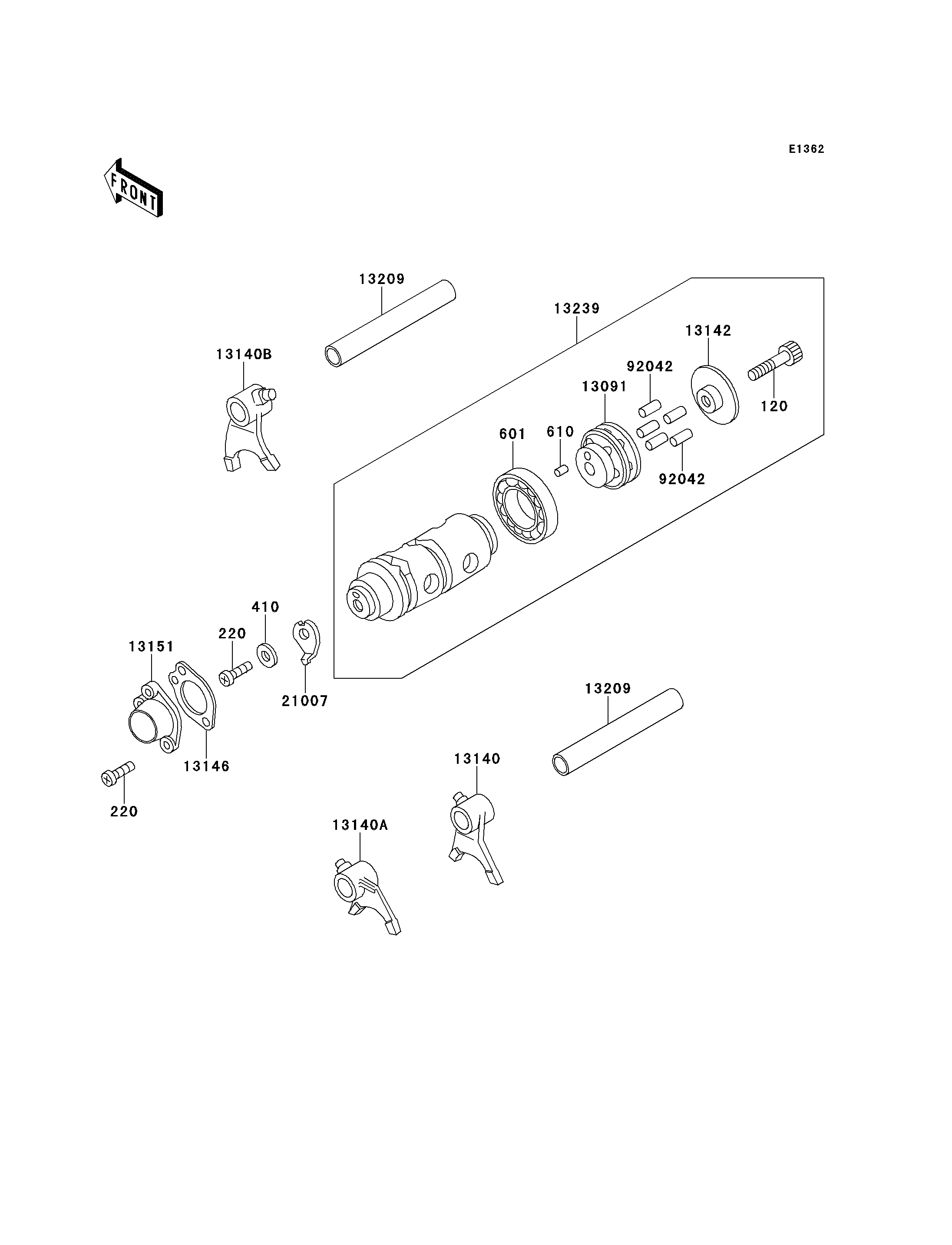

1997 KE100 - Gear Change Drum/Shift Fork(s)
120
220
220
410
601
610
13091
13140
13140A
13140B
13142
13146
13151
13209
13209
13239
21007
92042
92042
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X30 | 120 | 120Q0630 | 1 | ||
| SCREW-PAN-CROS,6X16 | 220 | 220B0616 | 3 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| BEARING-BALL,#6004C3 | 601 | 601B6004 | 1 | ||
| ROLLER,4X6 | 610 | 610A0406 | 1 | ||
| HOLDER,CHANGE DRUM | 13091 | 13091-1077 | 1 | ||
| FORK-SHIFT,LOW&2ND | 13140 | 13140-1026 | 1 | ||
| FORK-SHIFT,3RD | 13140A | 13140-1027 | 1 | ||
| FORK-SHIFT,4TH&TOP | 13140B | 13140-1028 | 1 | ||
| HOLDER,CHANGE DRUM PIN | 13142 | 13142-014 | 1 | ||
| GASKET,NEUTRAL SWITCH | 13146 | 13146-002 | 1 | ||
| SWITCH-COMP,NEUTRAL | 13151 | 13151-1002 | 1 | ||
| ROD-SHIFT,10X80 | 13209 | 13209-014 | 2 | ||
| DRUM-ASSY-CHANGE | 13239 | 13239-1034 | 1 | ||
| ROTOR,TOP & NEUTRAL | 21007 | 21007-1003 | 1 | ||
| PIN,DOWEL,4X14.8 | 92042 | 92042-042 | 5 |
