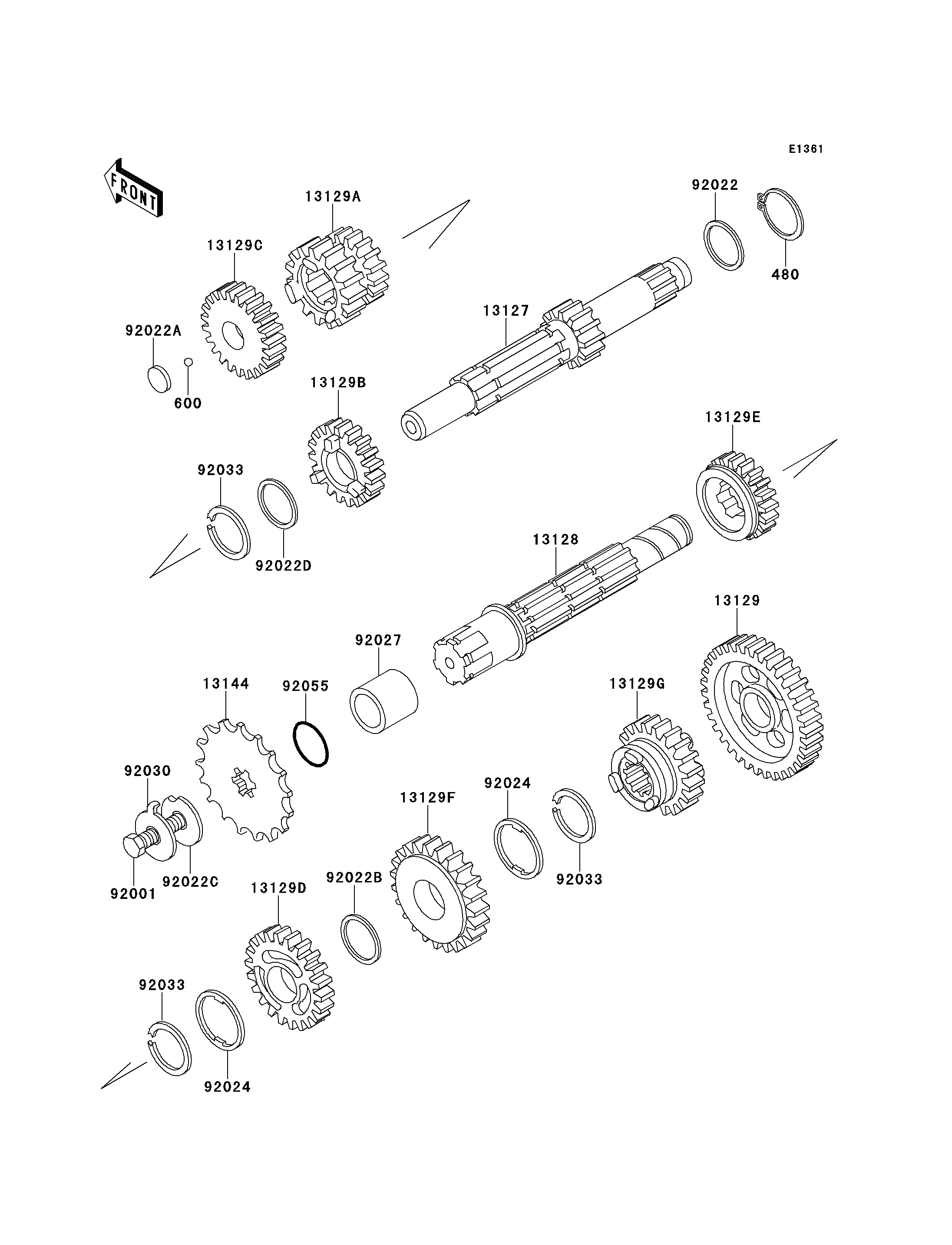

1997 KE100 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
600
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
13144
92001
92022
92022A
92022B
92022C
92022D
92024
92024
92027
92030
92033
92033
92033
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,16MM 480 480J1600 1
BALL-STEEL,7/32" 600 600A0700 1
SHAFT-TRANSMISSION INPUT 13127 13127-1017 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-021 1
GEAR,OUTPUT LOW,35T 13129 13129-010 1
GEAR,INPUT 2ND&3RD,17T&20T 13129A 13129-1138 1
GEAR,INPUT 4TH,22T 13129B 13129-1139 1
GEAR,INPUT TOP,28T 13129C 13129-1146 1
GEAR,OUTPUT 3RD,26T 13129D 13129-1148 1
GEAR,OUTPUT TOP,26T 13129E 13129-1149 1
GEAR,OUTPUT 2ND,30T 13129F 13129-1642 1
GEAR,OUTPUT 4TH,24T 13129G 13129-1708 1
SPROCKET-OUTPUT,15T 13144 13144-054 1
BOLT,8X16 92001 92001-1368 1
WASHER,THRUST,16.5X21X0.8 92022 92022-053 1
WASHER,THRUST 92022A 92022-115 1
WASHER,THRUST,18.5X23X1.6 92022B 92022-146 1
WASHER,T=2.3 92022C 92022-266 1
WASHER,18.3X22X0.5 92022D 92022-271 1
WASHER,TOOTHED,18.5X23X1.2 92024 92024-030 2
COLLAR,ENGINE SPROCKET,L=13.7 92027 92027-1595 1
WASHER,CLAW,8X22X1.2 92030 92030-012 1
RING-SNAP,16MM 92033 92033-014 3
RING-O,17.5X1.5 92055 92055-022 1
