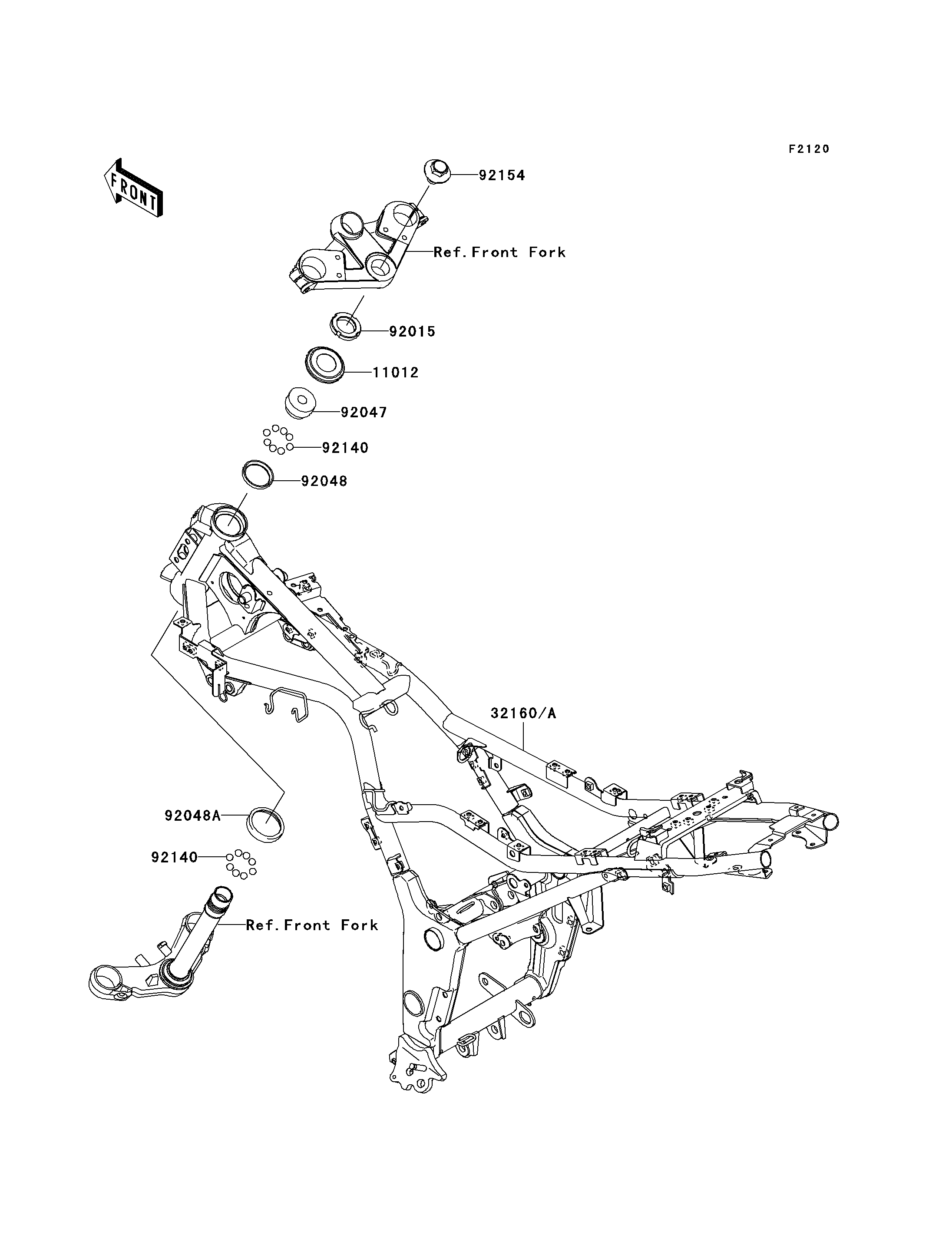

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 11012-1898 | 1 | ||
| FRAME-COMP,BLACK | 32160A | 32160-0422-18R | 1 | ||
| NUT,30MM,BLACK | 92015 | 92015-1301 | 1 | ||
| RACE,STEERING STEM BEARING | 92047 | 92047-011 | 1 | ||
| RACE,STEERING STEM BEARING | 92048 | 92048-006 | 1 | ||
| RACE,STEERING STEM BEARING | 92048A | 92048-008 | 1 | ||
| BALL,6.35MM | 92140 | 92140-0008 | 39 | ||
| BOLT,FLANGED,16X22,F.S.BLACK | 92154 | 92154-0075-18R | 1 |
