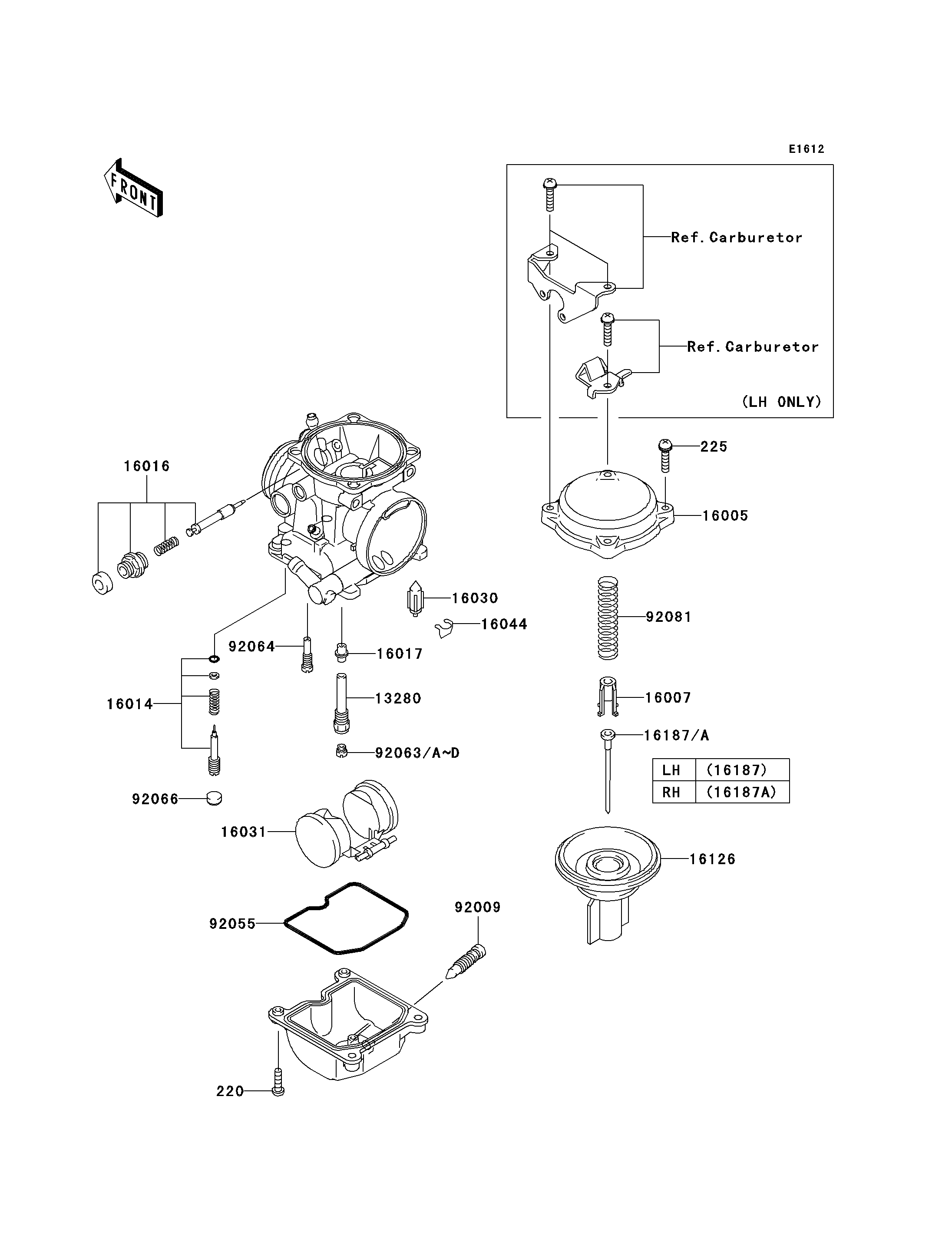

2009 Ninja® 250R - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
225
13280
16005
16007
16014
16016
16017
16030
16031
16044
16126
16187
16187A
92009
92055
92063
92063A
92063B
92063C
92063D
92064
92066
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X14 220 220AA0414 8
SCREW-PAN-WSP-CROS,4X18 225 225AB0418 5
HOLDER,NEEDLE JET 13280 13280-0333 2
TOP-CHAMBER,MIXING 16005 16005-1056 2
SEAT-SPRING,VALVE 16007 16007-1226 2
SCREW-PILOT AIR 16014 16014-1081 2
PLUNGER,STARTER 16016 16016-1090 2
JET-NEEDLE,#6 16017 16017-1417 2
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1077 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE,VACUUM 16126 16126-1198 2
NEEDLE-JET,N9VU 16187 16187-0277 1
NEEDLE-JET,N9VW 16187A 16187-0278 1
SCREW,DRAIN,6X0.75 92009 92009-1551 2
RING-O,FLOAT CHAMBER 92055 92055-1222 2
JET-MAIN,#95 92063 92063-1001 AR (OPTION)
JET-MAIN,#92 92063A 92063-1004 AR (OPTION)
JET-MAIN,#98 92063B 92063-1005 2
JET-MAIN,#100 92063C 92063-1008 AR (OPTION)
JET-MAIN,#102 92063D 92063-1115 AR (OPTION)
JET-PILOT,#38 92064 92064-1234 2
PLUG,PILOT AIR SCREW 92066 92066-3769 2
SPRING,VACUUM VALVE 92081 92081-1925 2
