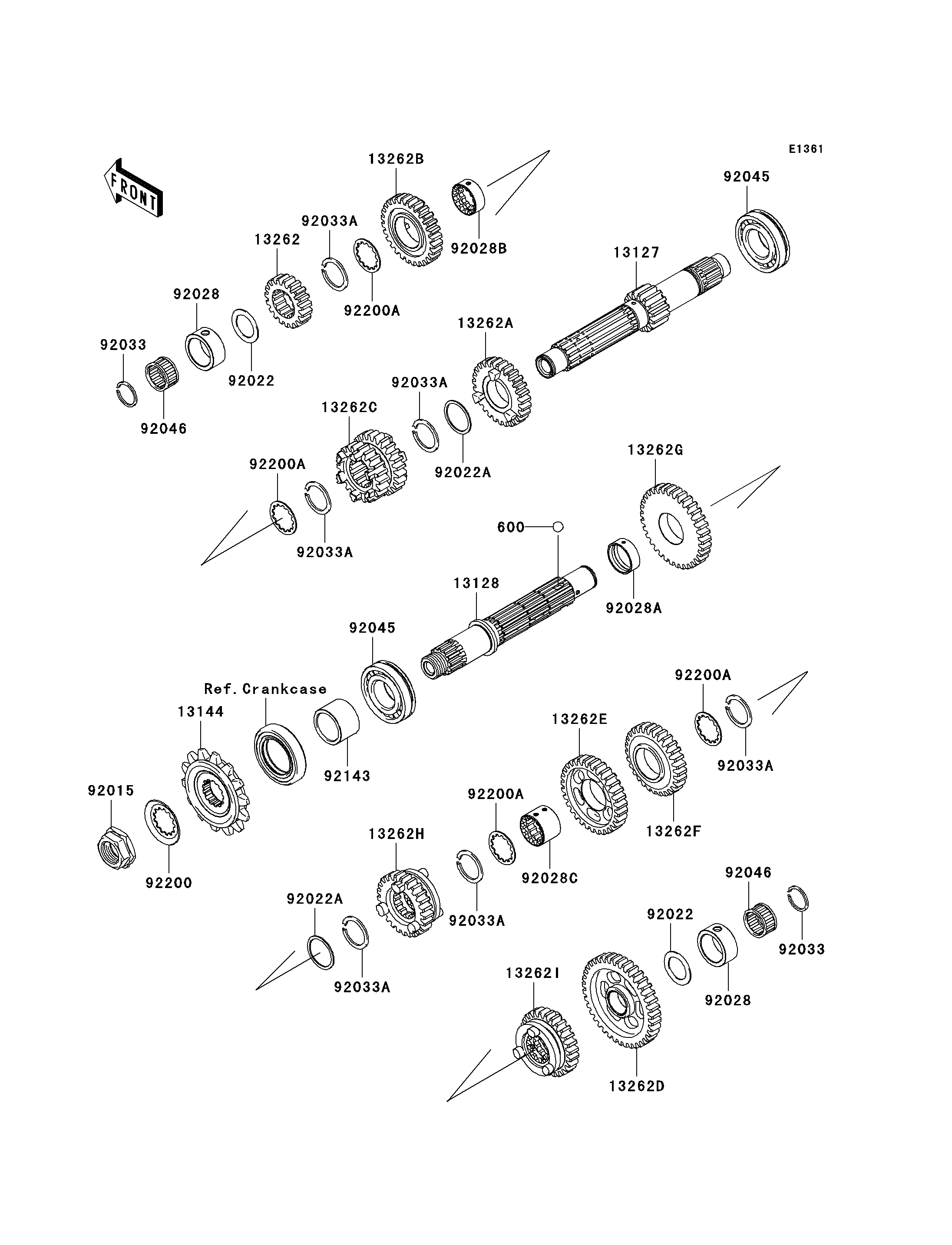

2009 Ninja® 250R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
13262I
92015
92022
92022
92022A
92022A
92028
92028
92028A
92028B
92028C
92033
92033
92033A
92033A
92033A
92033A
92033A
92033A
92045
92045
92046
92046
92143
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,15T 13127 13127-0051 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0037 1
SPROCKET-OUTPUT,14T 13144 13144-0054 1
GEAR,INPUT 2ND,19T 13262 13262-0461 1
GEAR,INPUT 5TH,27T 13262A 13262-0462 1
GEAR,INPUT TOP,28T 13262B 13262-0463 1
GEAR,INPUT 3RD&4TH,22T&25T 13262C 13262-0464 1
GEAR,OUTPUT LOW,39T 13262D 13262-0465 1
GEAR,OUTPUT 3RD,31T 13262E 13262-0466 1
GEAR,OUTPUT 4TH,29T 13262F 13262-0467 1
GEAR,OUTPUT 2ND,34T 13262G 13262-0468 1
GEAR,OUTPUT TOP,25T 13262H 13262-0469 1
GEAR,OUTPUT 5TH,27T 13262I 13262-0470 1
NUT,20MM 92015 92015-1963 1
WASHER,20.5X30X1,STEEL 92022 92022-112 2
WASHER,25.3X30X1 92022A 92022-161 2
BUSHING,25X33X14 92028 92028-1426 2
BUSHING,9.4X25X28 92028A 92028-1564 1
BUSHING,INPUT TOP GEAR 92028B 92028-1857 1
BUSHING,OUTPUT 3RD&4TH GEAR 92028C 92028-1858 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 6
BEARING-BALL,#6205NX3 92045 92045-1013 2
BEARING-NEEDLE,20R2513P 92046 92046-044 2
COLLAR,SPROCKET 92143 92143-1968 1
WASHER 92200 92200-0506 1
WASHER 92200A 92200-1389 4
