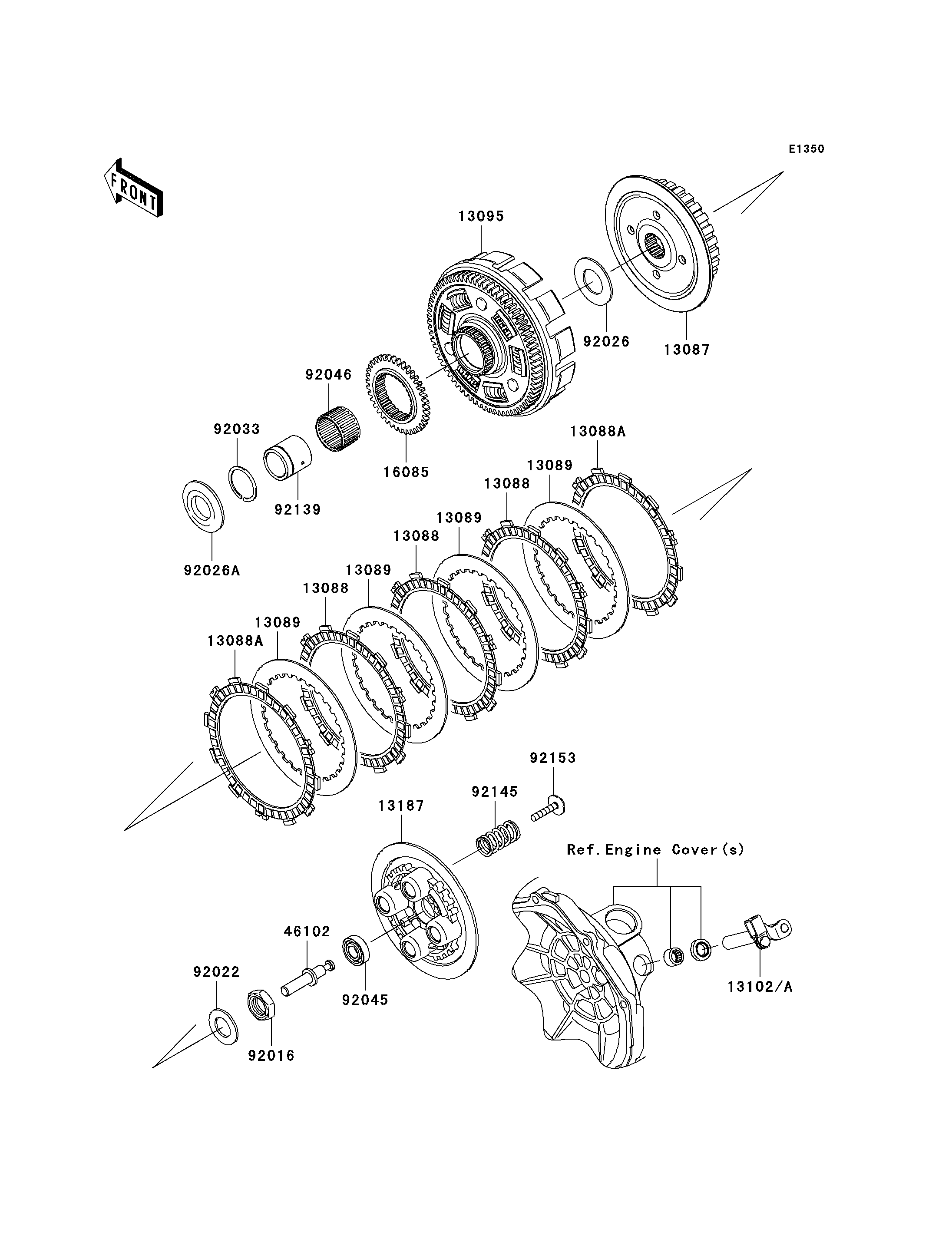

2009 Ninja® 250R - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13088
13088A
13088A
13089
13089
13089
13089
13095
13102
13187
16085
46102
92016
92022
92026
92026A
92033
92045
92046
92139
92145
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0039 1
PLATE-FRICTION 13088 13088-0038 3
PLATE-FRICTION 13088A 13088-0039 2
PLATE-CLUTCH 13089 13089-0021 4
HOUSING-COMP-CLUTCH,C MK,NONE 13095 13095-0097 1
RELEASE-COMP-CLUTCH 13102 13102-0036 1
PLATE-CLUTCH OPERATING 13187 13187-0015 1
GEAR,OILPUMP DRIVE,38T 16085 16085-0112 1
ROD 46102 46102-0114 1
NUT,20MM 92016 92016-028 1
WASHER,20.3X36X2.3 92022 92022-1116 1
SPACER,25.5X48X2 92026 92026-0114 1
SPACER,25X52X5.5 92026A 92026-0115 1
RING-SNAP 92033 92033-1212 1
BEARING-BALL 92045 92045-0067 1
BEARING-NEEDLE,KTV323723 92046 92046-028 1
BUSHING,25X32X32.1 92139 92139-0091 1
SPRING 92145 92145-0531 4
BOLT,UPSET-WP,6X32 92153 92153-1880 4
