Parts Diagrams |

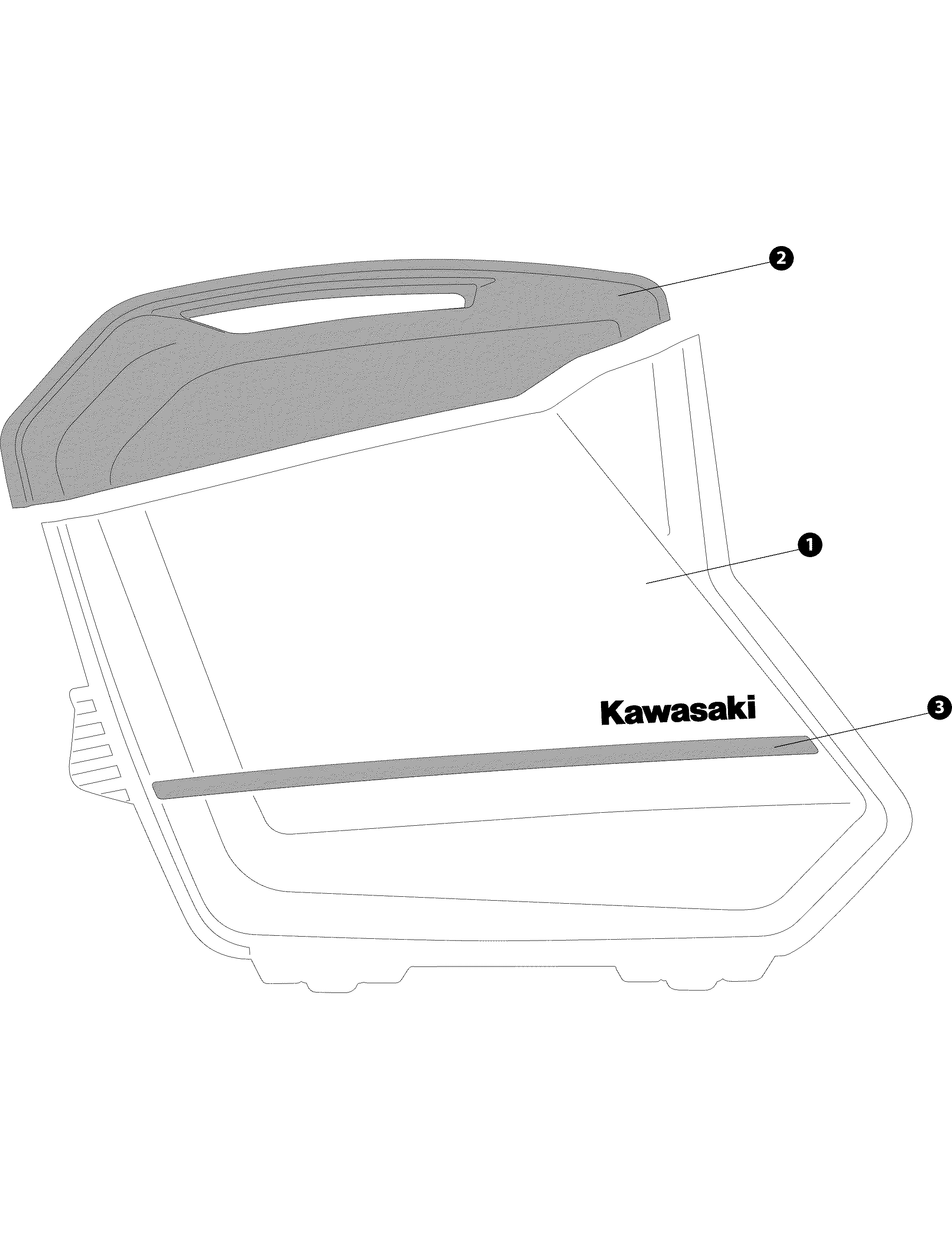

2016 VERSYS® 1000 LT Supplement - Saddlebags/Color Panels/Color Trim
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SADDLEBAG SET | 1 | 99994-0568 | 1 | ||
| COLOR PANEL SET - GREEN | 2a | 99994-0422-51P | 1 | ||
| COLOR PANEL SET - SILVER | 2c | 99994-0422-725 | 1 | ||
| TRIM SET - GREEN | 3a | 99994-0423-51P | 1 | ||
| TRIM SET - SILVER | 3c | 99994-0423-725 | 1 |
| SADDLEBAG SET | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLOR PANEL SET - GREEN | |
| REF # | 2a |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLOR PANEL SET - SILVER | |
| REF # | 2c |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM SET - GREEN | |
| REF # | 3a |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM SET - SILVER | |
| REF # | 3c |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
