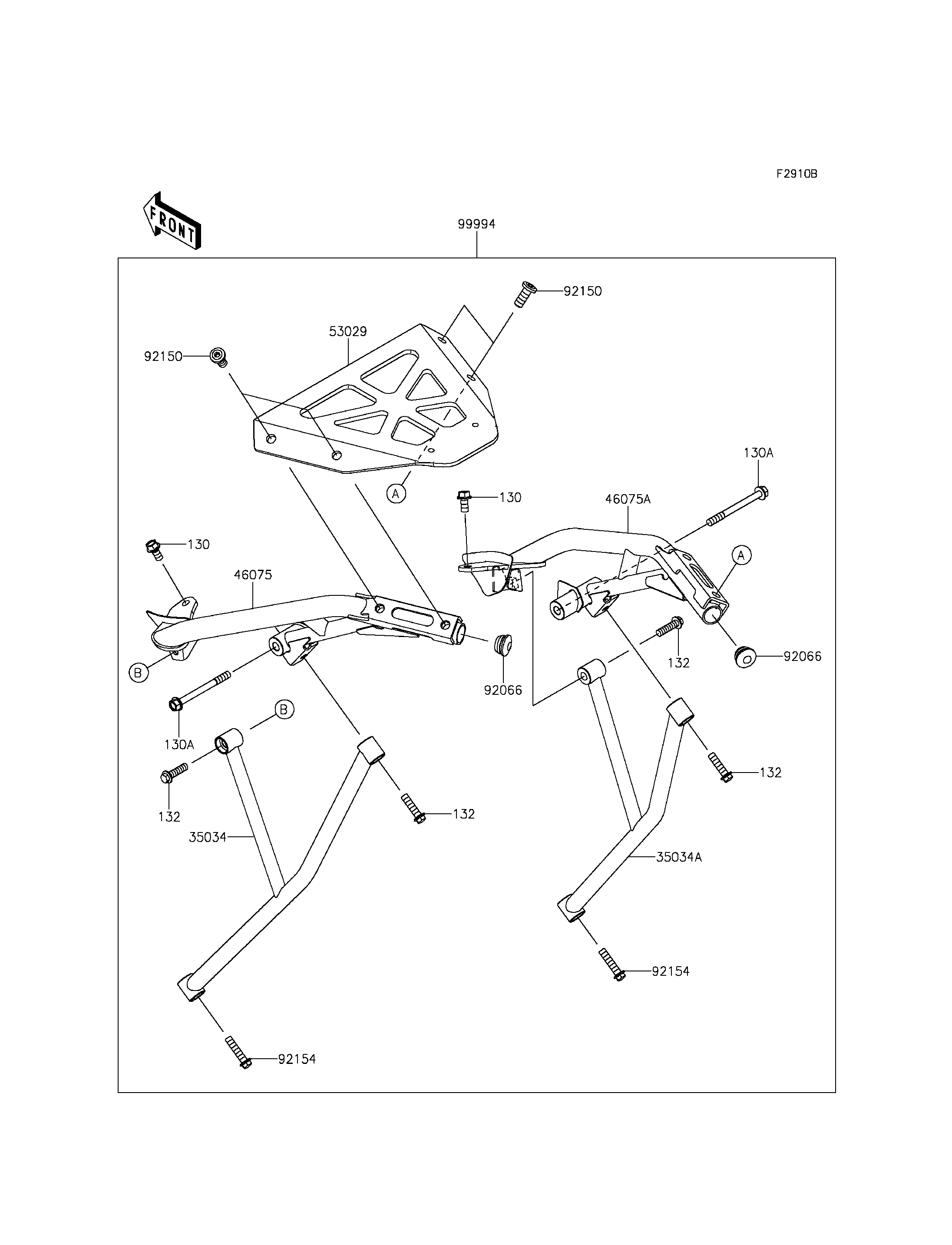

2012 ER-6n (European) - Accessory(Top Case Bracket)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
132
132
132
35034
35034A
46075
46075A
53029
92066
92066
92150
92150
92154
92154
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130CB0816 2
BOLT-FLANGED,8X85 130A 130CB0885 2
BOLT-FLANGED-SMALL,8X30 132 132BB0830 4
REINFORCE,LH 35034 35034-0575 1
REINFORCE,RH 35034A 35034-0576 1
GRIP,LH 46075 46075-0580 1
GRIP,RH 46075A 46075-0581 1
CARRIER 53029 53029-0321 1
PLUG 92066 92066-1520 2
BOLT,SOCKET,10X25 92150 92150-1747 4
BOLT 92154 92154-0999 2
KIT-ACCESSORY,TOPCASE BRACKET 99994 99994-0228 1
