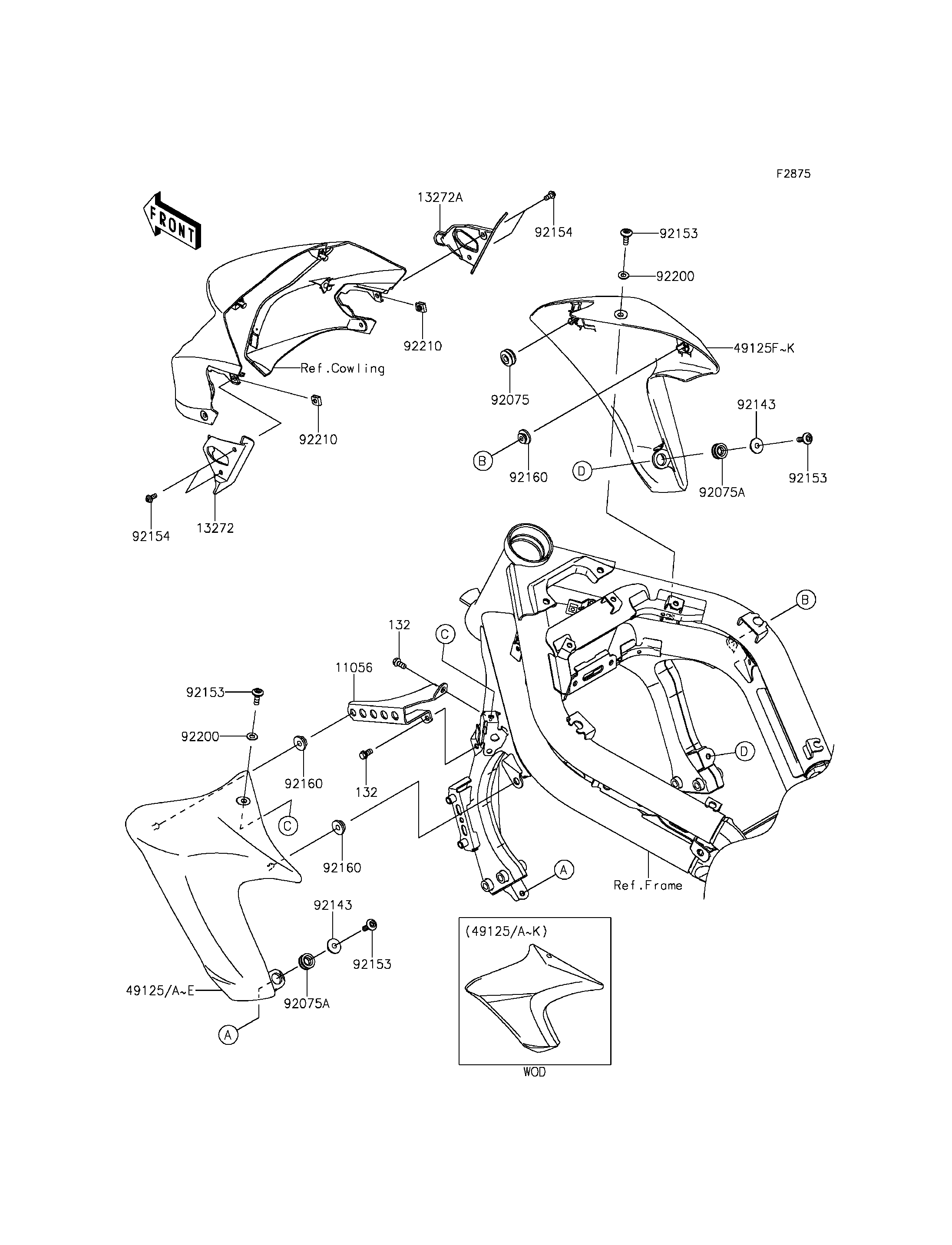

2012 ER-6n (European) - Shroud

DOWNLOAD PDF
SELECT A NEW PART
132
132
11056
13272
13272A
49125
49125A
49125C
49125F
49125G
49125I
92075
92075A
92075A
92143
92143
92153
92153
92153
92153
92154
92154
92160
92160
92160
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BRACKET,SHROUD,LH 11056 11056-0935 1
PLATE,SIGNAL,LH 13272 13272-1006 1
PLATE,SIGNAL,RH 13272A 13272-1007 1
SHROUD,LH,P.S.WHITE 49125 49125-0554-15S 1
SHROUD,LH,M.S.BLACK 49125A 49125-0554-15Z 1
SHROUD,LH,P.S.YELLOW 49125C 49125-0554-35E 1
SHROUD,RH,P.S.WHITE 49125F 49125-0555-15S 1
SHROUD,RH,M.S.BLACK 49125G 49125-0555-15Z 1
SHROUD,RH,P.S.YELLOW 49125I 49125-0555-35E 1
DAMPER 92075 92075-1067 1
DAMPER 92075A 92075-1634 2
COLLAR 92143 92143-1962 2
BOLT,6X18 92153 92153-0816 4
BOLT,SOCKET,5X12 92154 92154-0917 4
DAMPER 92160 92160-1613 3
WASHER,6.5X14X1 92200 92200-1388 2
NUT 92210 92210-0571 2
