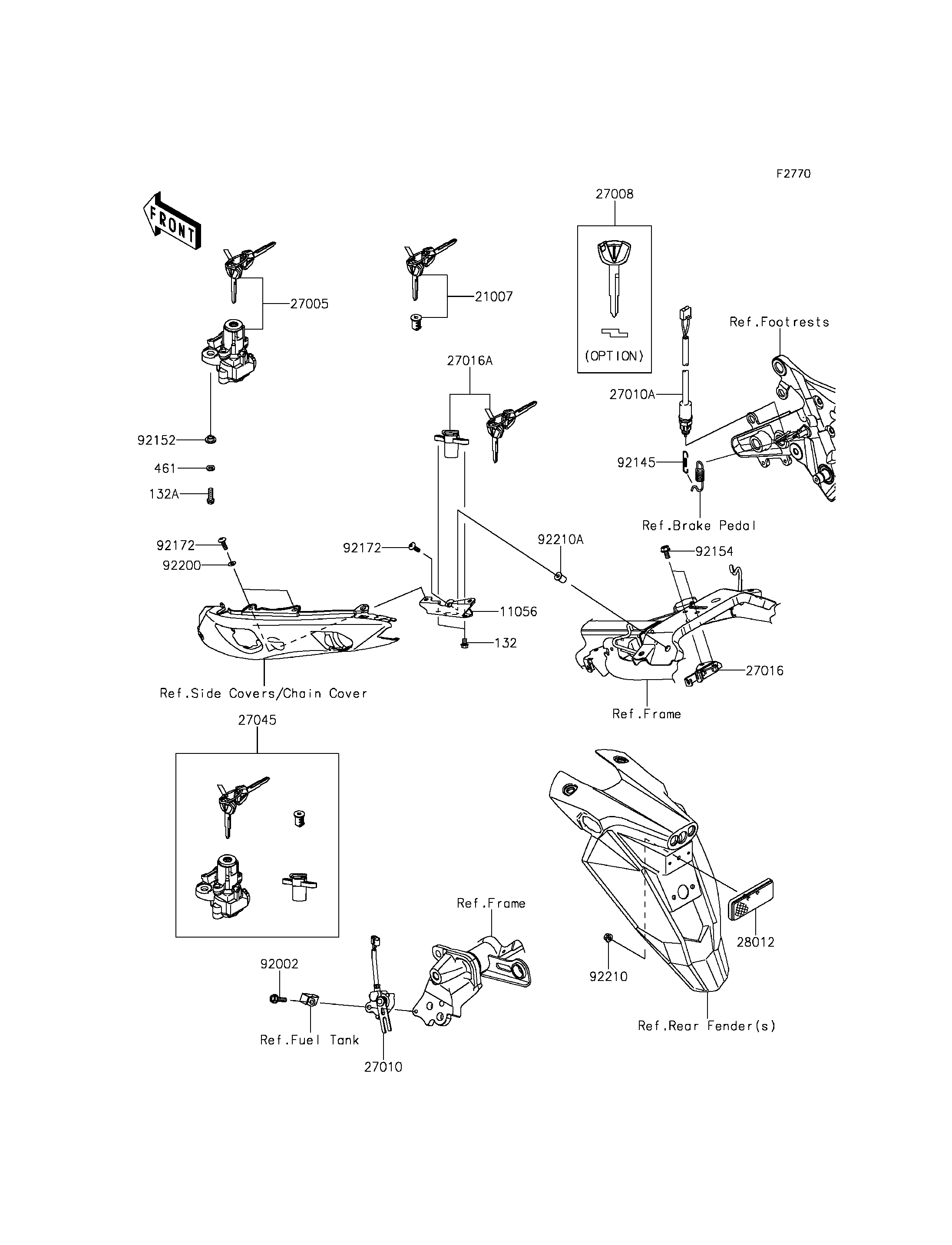

2012 ER-6n (European) - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
132
132A
461
11056
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
92002
92145
92152
92154
92172
92172
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X8 132 132BA0608 2
BOLT-FLANGED-SMALL,6X20 132A 132BA0620 2
WASHER-SPRING,6MM 461 461DA0600 2
BRACKET,SEAT LOCK 11056 11056-0938 1
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SWITCH-ASSY-IGNITION 27005 27005-0552 1
KEY-LOCK,BLANK 27008 27008-0069 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0722 1
SWITCH,REAR BRAKE 27010A 27010-0723 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,SEAT 27016A 27016-5372 1
SWITCH-ASSY 27045 27045-5452 1
REFLECTOR-REFLEX 28012 28012-1077 1
BOLT,FLANGED,6X25 92002 92002-1582 1
SPRING,REAR BRAKE SWITCH 92145 92145-0724 1
COLLAR,6.15X10.15X6 92152 92152-1535 2
BOLT,FLANGED,6X12 92154 92154-1050 2
SCREW,5X16 92172 92172-0322 3
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,FLANGED,5MM 92210 92210-0007 1
NUT,WELL,5MM 92210A 92210-0498 1
