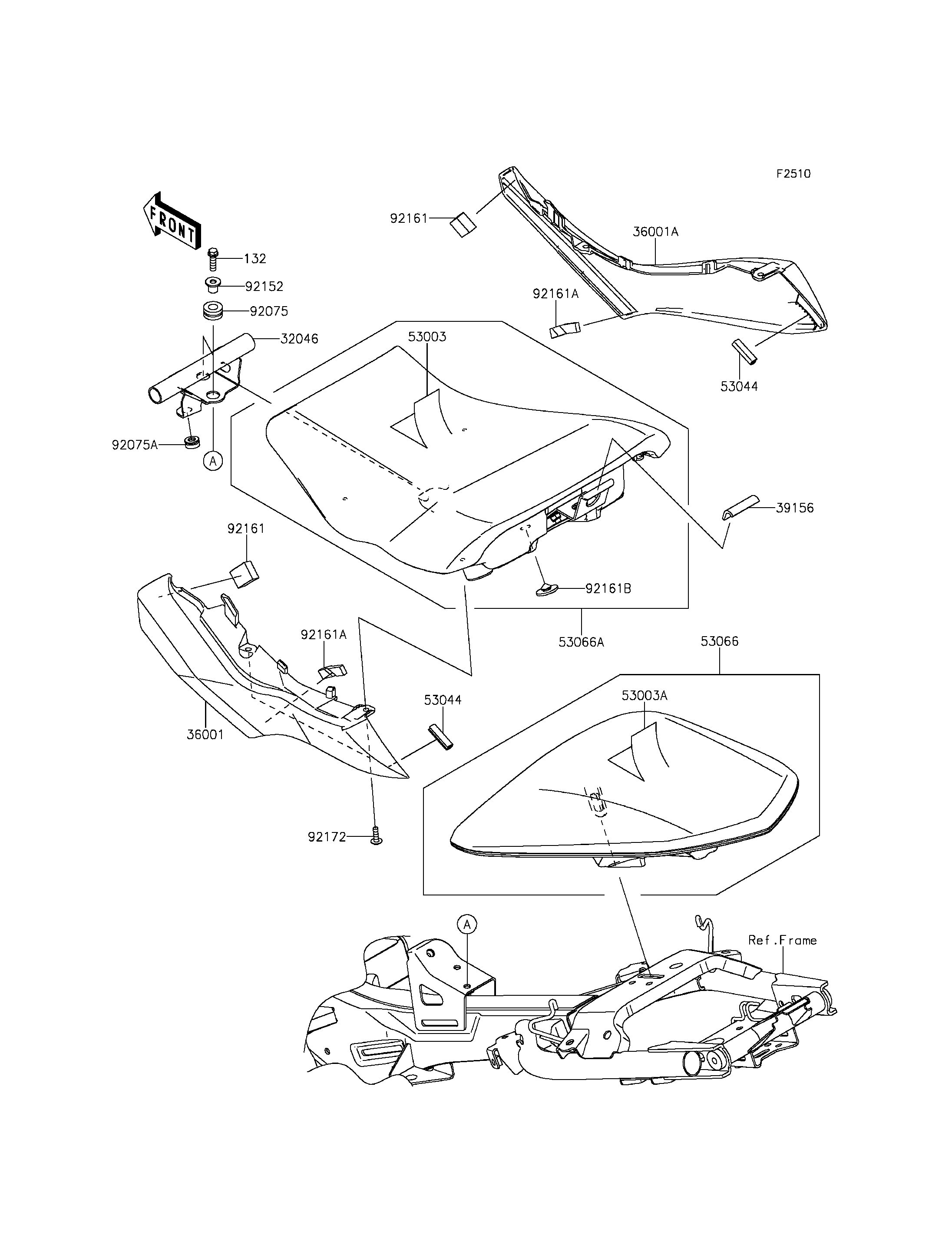

2012 ER-6n (European) - Seat

DOWNLOAD PDF
SELECT A NEW PART
132
32046
36001
36001A
39156
53003
53003A
53044
53044
53066
53066A
92075
92075A
92152
92161
92161
92161A
92161A
92161B
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132BA0620 2
BRACKET-SEAT 32046 32046-0304 1
COVER-SIDE,LH 36001 36001-0564 1
COVER-SIDE,RH 36001A 36001-0565 1
PAD,20X40X3 39156 39156-0831 1
LEATHER,FR SEAT,BLACK 53003 53003-0307-MA 1
LEATHER,RR SEAT,BLACK 53003A 53003-0308-MA 1
TRIM,L=30 53044 53044-0001 2
SEAT-ASSY,RR,BLACK 53066 53066-0361-MA 1
SEAT-ASSY,FR,BLACK 53066A 53066-0365-MA 1
DAMPER 92075 92075-1880 2
DAMPER 92075A 92075-1986 1
COLLAR,6.8X10X11.6 92152 92152-0977 2
DAMPER 92161 92161-0718 2
DAMPER,TANK COVER 92161A 92161-0804 2
DAMPER,RUBBER 92161B 92161-1200 1
SCREW,TAPPING,5X16 92172 92172-0742 4
