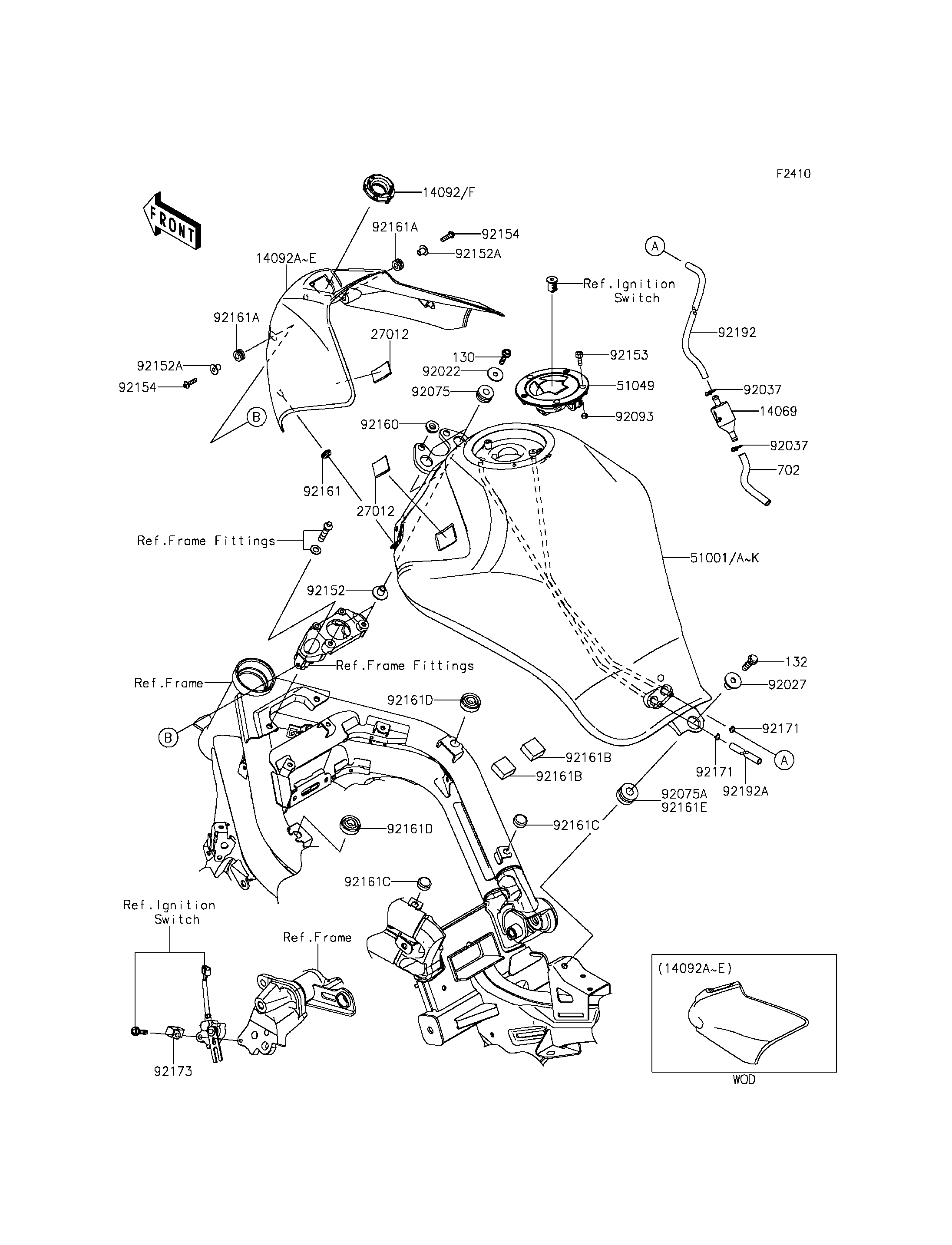

Parts Diagrams |
14069
14069
14092
14092
14092A
14092A
27012
27012
27012
27012
51001A
51001A
51001C
51001C
51001E
51001E
51049
51049
92022
92022
92027
92027
92037
92037
92037
92037
92075
92075
92075A
92075A
92093
92093
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92154
92154
92154
92154
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92161D
92161D
130
130
132
132
702
702
92171
92171
92171
92171
92173
92173
92192
92192
92192A
92192A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BREATHER,FUEL TANK | 14069 | 14069-1004 | 1 | ||
| COVER,IGNITION SW. | 14092 | 14092-0730 | 1 | ||
| COVER,TANK,M.F.S.BLACK | 14092A | 14092-0731-15V | 1 | ||
| HOOK,DUAL LOCK FASTENER | 27012 | 27012-0717 | 4 | ||
| TANK-COMP-FUEL,P.S.WHITE | 51001A | 51001-0708-15S | 1 | ||
| TANK-COMP-FUEL,M.S.BLACK | 51001C | 51001-0708-15Z | 1 | ||
| TANK-COMP-FUEL,P.S.YELLOW | 51001E | 51001-0708-35E | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-0039 | 1 | ||
| WASHER,7X24X1.6 | 92022 | 92022-228 | 2 | ||
| COLLAR,L=19.3 | 92027 | 92027-1780 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 2 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 2 | ||
| DAMPER | 92075A | 92075-1736 | 1 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
| COLLAR,6.5X10X13.1 | 92152 | 92152-0910 | 2 | ||
| COLLAR,5.6X8X11.2 | 92152A | 92152-1562 | 2 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1616 | 3 | ||
| BOLT,SOCKET,5X20 | 92154 | 92154-0210 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 2 | ||
| DAMPER | 92161 | 92161-0631 | 2 | ||
| DAMPER,8X16X8.6 | 92161A | 92161-0685 | 2 | ||
| DAMPER,T=13 | 92161B | 92161-0792 | 2 | ||
| DAMPER,10X20X8 | 92161C | 92161-0855 | 2 | ||
| DAMPER,14X30X10 | 92161D | 92161-1368 | 2 | ||
| BOLT-FLANGED,6X25 | 130 | 130CA0625 | 2 | ||
| BOLT-FLANGED-SMALL,8X30 | 132 | 132BA0830 | 1 | ||
| TUBE-RUBBER,7X10X100 | 702 | 702A07100 | 1 | ||
| CLAMP,8X0.7 | 92171 | 92171-1973 | 2 | ||
| CLAMP | 92173 | 92173-0833 | 1 | ||
| TUBE,6X9X631 | 92192 | 92192-0966 | 1 | ||
| TUBE,6X9X821 | 92192A | 92192-1091 | 1 |
