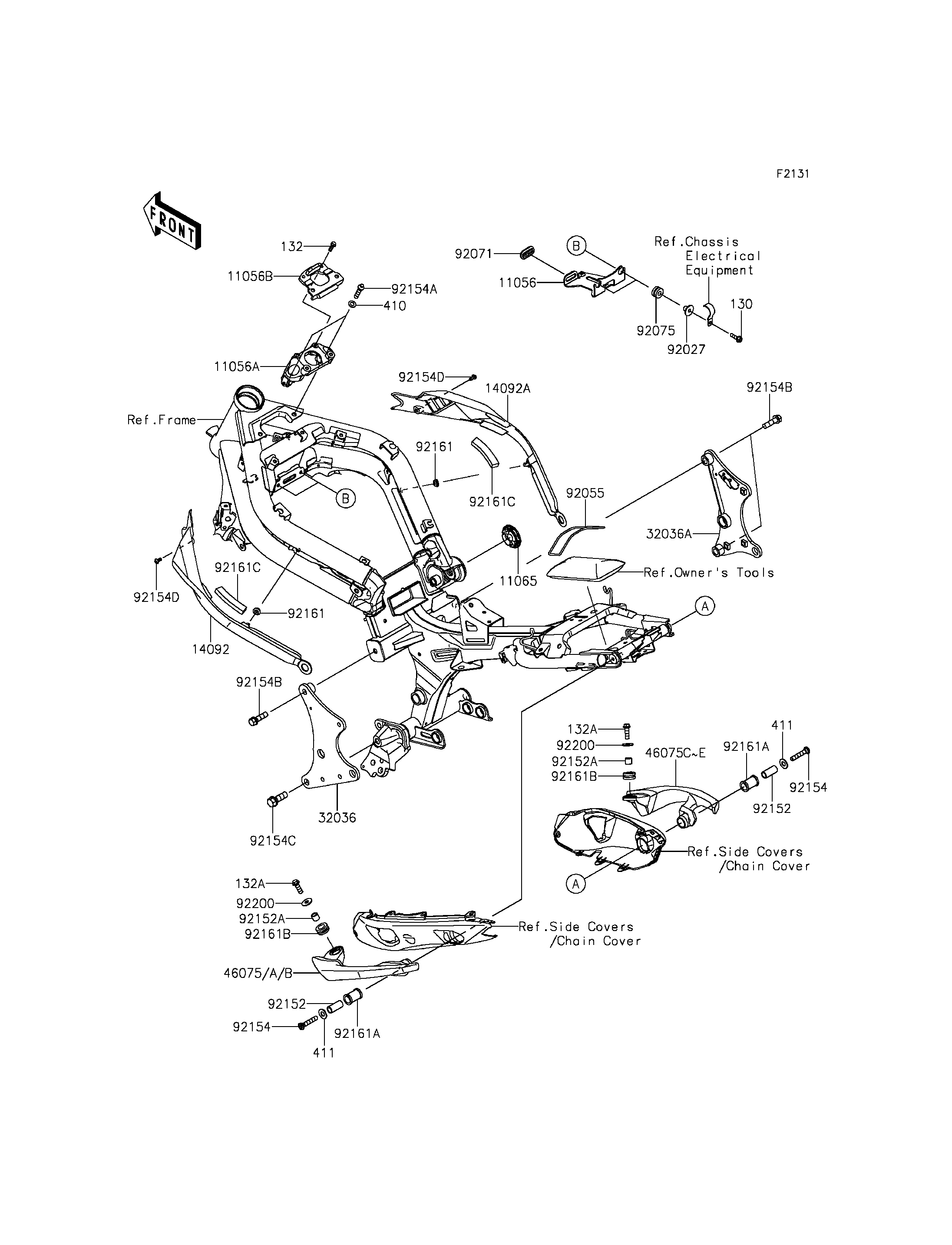

2012 ER-6n (European) - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
132A
410
411
411
11056
11056A
11056B
11065
14092
14092A
32036
32036A
46075A
46075B
46075D
46075E
92027
92055
92071
92075
92152
92152
92152A
92152A
92154
92154
92154A
92154B
92154B
92154C
92154D
92154D
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
BOLT-FLANGED-SMALL,8X25 132A 132BA0825 2
WASHER-PLAIN-SMALL,8MM 410 410AA0800 2
WASHER-PLAIN,10MM 411 411AA1000 2
BRACKET,REGULATOR 11056 11056-0801 1
BRACKET,IGNITION SW. 11056A 11056-0805 1
BRACKET,IGNITION SW.,UPP 11056B 11056-1717 1
CAP,PIVOT COVER,RH,P.SILVER 11065 11065-0264-458 1
COVER,FRAME,LH 14092 14092-0740 1
COVER,FRAME,RH 14092A 14092-0741 1
BRACKET-SWINGARM,LH 32036 32036-0303 1
BRACKET-SWINGARM,RH 32036A 32036-0304 1
GRIP,TANDEM,LH,F.S.BLACK 46075A 46075-0565-18R 1
GRIP,TANDEM,LH,F.M.GRAY 46075B 46075-0565-26M 1
GRIP,TANDEM,RH,F.S.BLACK 46075D 46075-0566-18R 1
GRIP,TANDEM,RH,F.M.GRAY 46075E 46075-0566-26M 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2
RING-O,91.6X3.4 92055 92055-0719 1
GROMMET 92071 92071-0013 1
DAMPER 92075 92075-209 2
COLLAR,10.4X15X33 92152 92152-0964 2
COLLAR,9.2X13.8X12.5 92152A 92152-1526 2
BOLT,SOCKET,8X40 92154 92154-0544 2
BOLT,TORX,8X35 92154A 92154-0730 2
BOLT,FLANGED,10X35 92154B 92154-0862 3
BOLT,FLANGED,12X35 92154C 92154-0863 1
BOLT,SOCKET,5X12 92154D 92154-0917 2
DAMPER 92161 92161-0631 2
DAMPER,15X23X33.5 92161A 92161-0940 2
DAMPER,14X26X12 92161B 92161-1444 2
DAMPER,10X80X16 92161C 92161-1470 2
WASHER,8.5X23X1.6 92200 92200-0752 2
