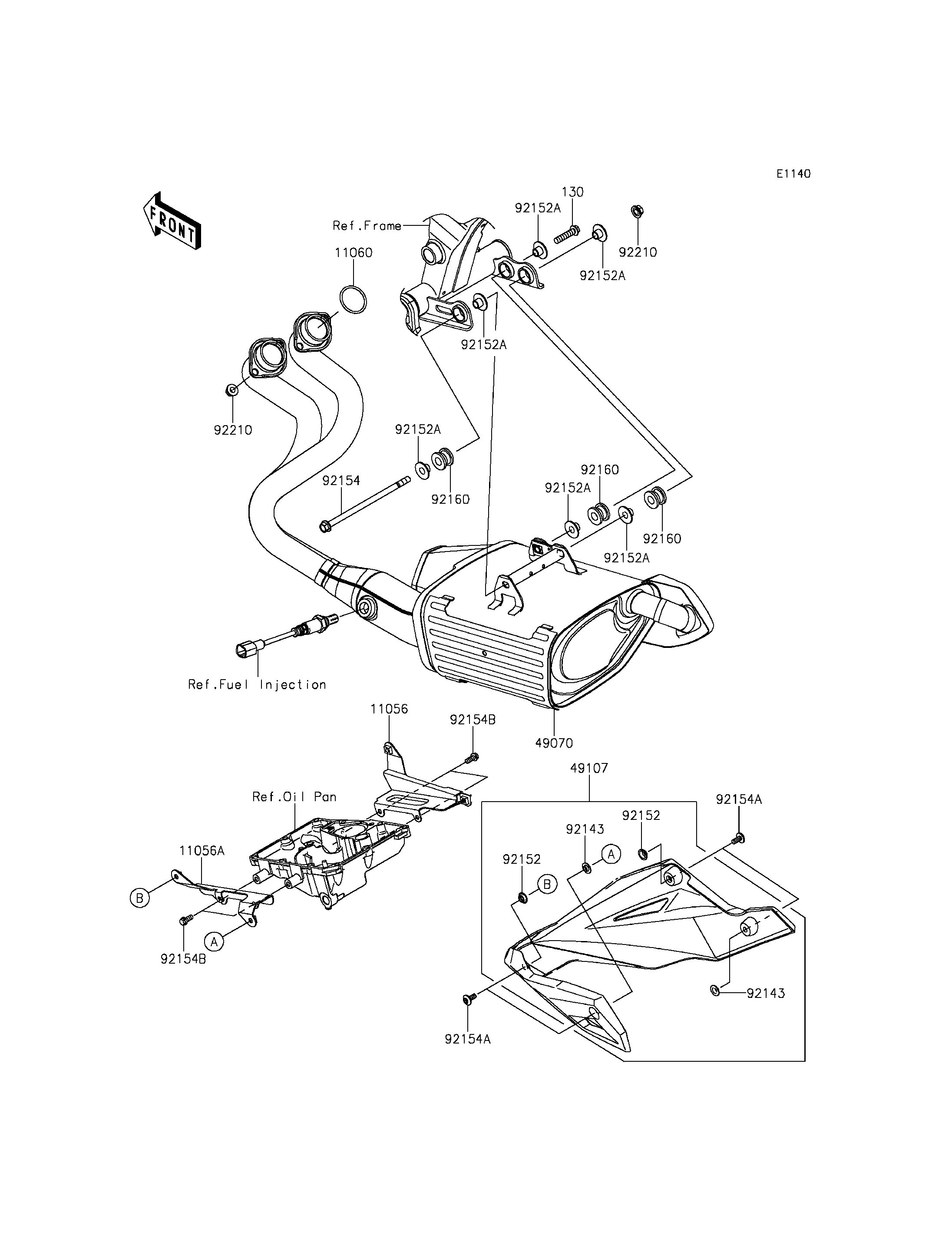

Parts Diagrams |
130
11056
11056A
11060
49070
49107
92143
92143
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92154
92154A
92154A
92154B
92154B
92160
92160
92160
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X35 | 130 | 130CD0835 | 1 | ||
| BRACKET,RH | 11056 | 11056-0921 | 1 | ||
| BRACKET,LH | 11056A | 11056-0922 | 1 | ||
| GASKET,EXHAUST PIPE HOLDER | 11060 | 11060-1103 | 2 | ||
| MUFFLER-COMP | 49070 | 49070-0771 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-0713 | 1 | ||
| COLLAR | 92143 | 92143-1087 | 2 | ||
| COLLAR,8.8X11.2X4 | 92152 | 92152-0909 | 2 | ||
| COLLAR | 92152A | 92152-1692 | 6 | ||
| BOLT,FLANGED,8X165 | 92154 | 92154-0189 | 1 | ||
| BOLT,SOCKET,6X14 | 92154A | 92154-1025 | 4 | ||
| BOLT,FLANGED,6X14 | 92154B | 92154-1426 | 4 | ||
| DAMPER,MUFFLER MOUNT | 92160 | 92160-1116 | 3 | ||
| NUT,8MM | 92210 | 92210-1114 | 5 |
| BOLT-FLANGED,8X35 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RH | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LH | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MUFFLER-COMP | |
| REF # | 49070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.8X11.2X4 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X165 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER MOUNT | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
