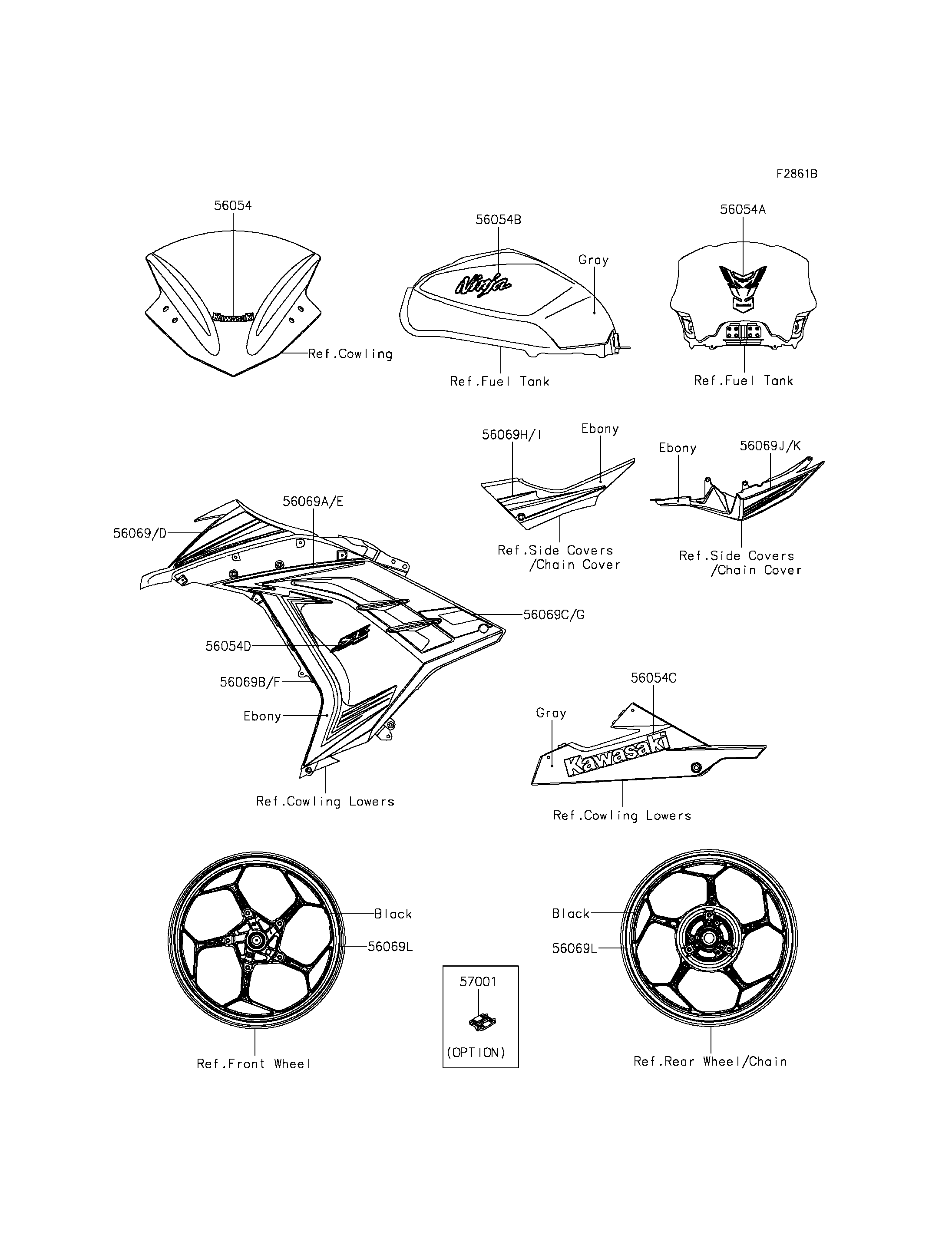

2015 NINJA® 300 SE - Decals(Gray)(AFFA)
56054
56054A
56054B
56054C
56054D
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
56069L
56069L
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-1088 | 1 | ||
| MARK,TANK PAD | 56054A | 56054-1599 | 1 | ||
| MARK,FUEL TANK,NINJA | 56054B | 56054-1609 | 2 | ||
| MARK,LWR COWL.,KAWASAKI | 56054C | 56054-1610 | 2 | ||
| MARK,SIDE COWL.,SE | 56054D | 56054-1611 | 2 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56069 | 56069-7785 | 1 | ||
| PATTERN,SIDE COWL.,LH,CNT | 56069A | 56069-7786 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,FR | 56069B | 56069-7787 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,RR | 56069C | 56069-7788 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56069D | 56069-7789 | 1 | ||
| PATTERN,SIDE COWL.,RH,CNT | 56069E | 56069-7790 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,FR | 56069F | 56069-7791 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,RR | 56069G | 56069-7792 | 1 | ||
| PATTERN,SEAT COVER,LH,FR | 56069H | 56069-7793 | 1 | ||
| PATTERN,SEAT COVER,RH,FR | 56069I | 56069-7794 | 1 | ||
| PATTERN,SEAT COVER,LH,RR | 56069J | 56069-7795 | 1 | ||
| PATTERN,SEAT COVER,RH,RR | 56069K | 56069-7796 | 1 | ||
| PATTERN,WHEEL,GRN,4X1353 | 56069L | 56069-7797 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TANK PAD | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,SE | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR,FR | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR,RR | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR,FR | |
| REF # | 56069F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR,RR | |
| REF # | 56069G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH,FR | |
| REF # | 56069H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH,FR | |
| REF # | 56069I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,LH,RR | |
| REF # | 56069J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SEAT COVER,RH,RR | |
| REF # | 56069K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GRN,4X1353 | |
| REF # | 56069L |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
