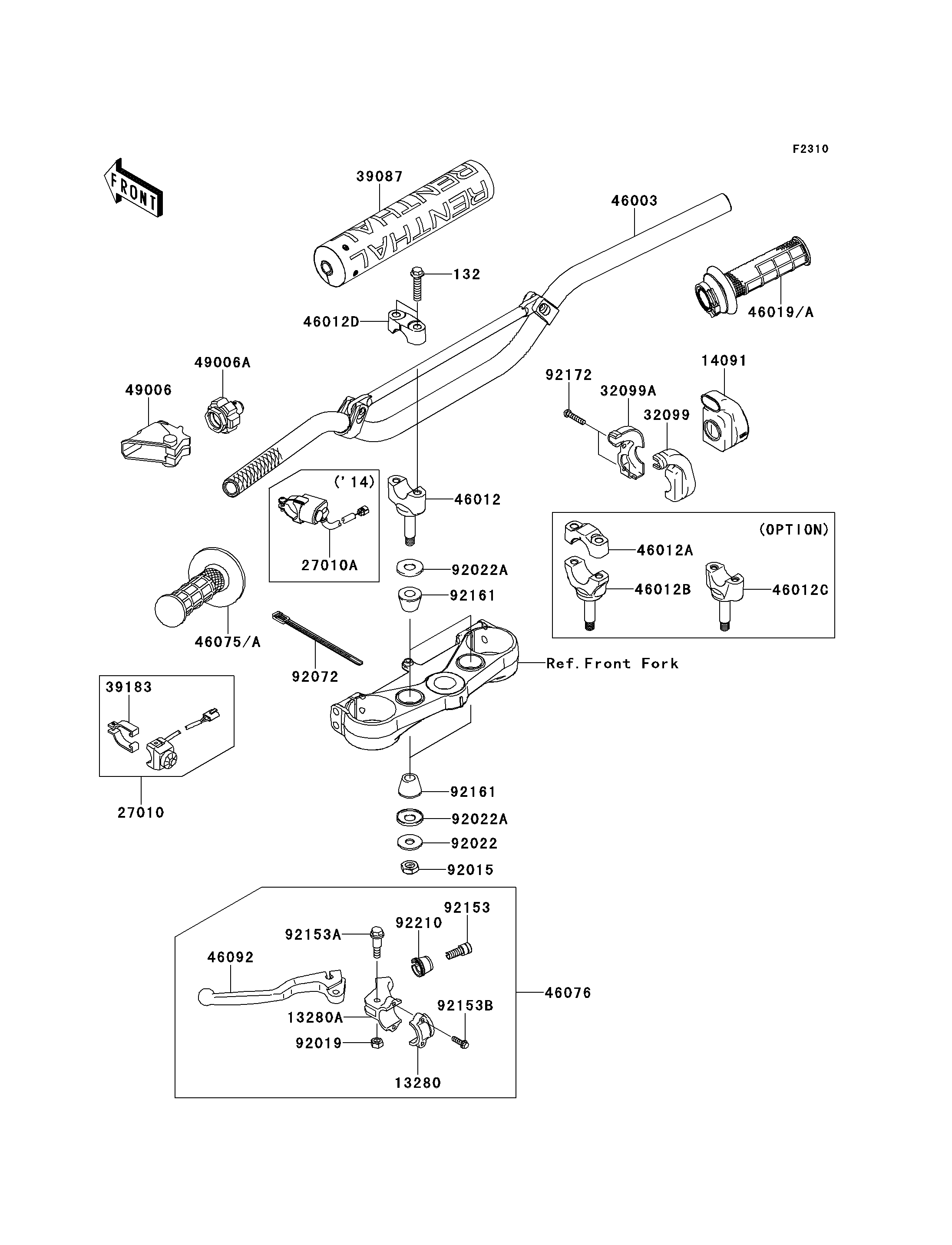

2013 KX™250F - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
132
13280
13280A
14091
27010
32099
32099A
39087
39183
46003
46012
46012A
46012B
46012C
46012D
46019
46075A
46076
46092
49006
49006A
92015
92019
92022
92022A
92022A
92072
92153
92153A
92153B
92161
92161
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X35 132 132BA0835 4
HOLDER 13280 13280-0055 1
HOLDER,CLUTCH LEVER 13280A 13280-0118 1
COVER,THROTTLE CASE 14091 14091-0182 1
SWITCH,ENGINE STOP 27010 27010-0047 1
CASE,THROTTLE,RR 32099 32099-0002 1
CASE,THROTTLE,FR 32099A 32099-0003 1
PAD-HANDLE 39087 39087-0004 1
BAND-ASSY,ENGINE STOP SWITCH 39183 39183-1059 1
HANDLE,RENTHAL,K971 46003 46003-0572 1
HOLDER-HANDLE,LWR,F.BLACK 46012 46012-0013-21 2
HOLDER-HANDLE,UPP,FAT BAR,BLK 46012A 46012-0020-21 2 (OPTION)
HOLDER-HANDLE,LWR,FAT BAR,BLK 46012B 46012-0021-21 2 (OPTION)
HOLDER-HANDLE,LWR,F.BLACK 46012C 46012-0048-21 2 (OPTION)
HOLDER-HANDLE,UPP,F.BLACK 46012D 46012-0324-21 2
GRIP-ASSY,THROTTLE 46019 46019-0037 1
GRIP,LH 46075A 46075-0082 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0019 1
LEVER-GRIP,CLUTCH 46092 46092-0007 1
BOOT,CLUTCH LEVER 49006 49006-0030 1
BOOT,CLUTCH CABLE 49006A 49006-0060 1
NUT,LOCK,10MM 92015 92015-1962 2
NUT,LOCK,6MM 92019 92019-008 1
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1737 4
BAND,L=140 92072 92072-1293 1
BOLT,BOLT ADJUSTING 92153 92153-0773 1
BOLT 92153A 92153-0807 1
BOLT,5X16 92153B 92153-0808 2
DAMPER,HANDLE HOLDER 92161 92161-0113 4
SCREW,5X20 92172 92172-0069 2
NUT,BOLT WIRE ADJUSTING 92210 92210-0167 1
