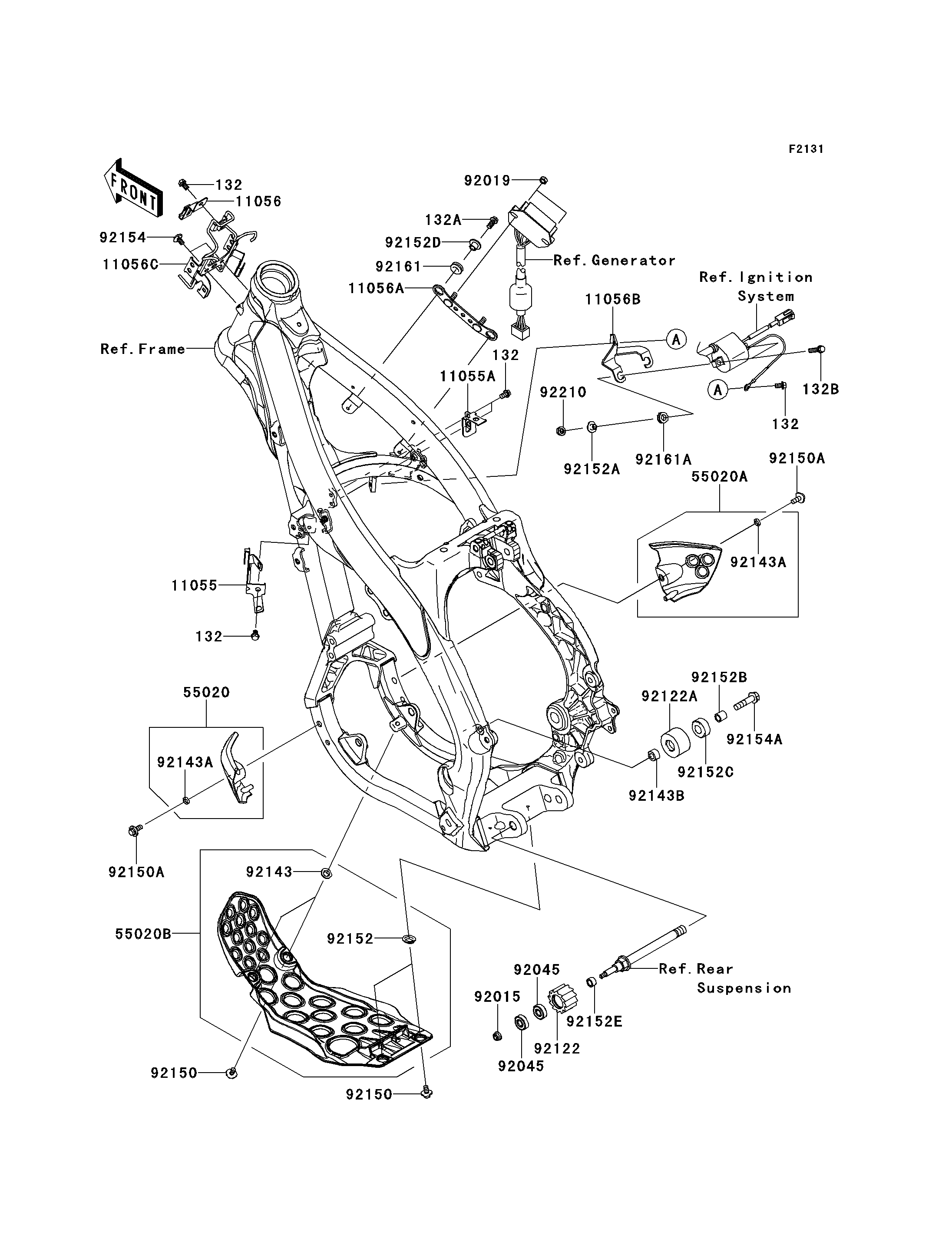

2013 KX™250F - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132
132A
132B
11055
11055A
11056
11056A
11056B
11056C
55020
55020A
55020B
92015
92019
92045
92045
92122
92122A
92143
92143A
92143A
92143B
92150
92150
92150A
92150A
92152
92152A
92152B
92152C
92152D
92152E
92154
92154A
92161
92161A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132BA0610 5
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 2
BOLT-FLANGED-SMALL,6X25 132B 132BA0625 2
BRACKET,COUPLER 11055 11055-1540 1
BRACKET 11055A 11055-1541 1
BRACKET,DIAG CONNECTOR 11056 11056-0070 1
BRACKET,REGULATOR 11056A 11056-0624 1
BRACKET,IG. COIL 11056B 11056-0961 1
BRACKET,ECU 11056C 11056-1657 1
GUARD,ENGINE,SIDE,LH,EBONY 55020 55020-0435-6C 1
GUARD,ENGINE,SIDE,RH,EBONY 55020A 55020-0436-6C 1
GUARD,ENGINE,LWR,EBONY 55020B 55020-0443-6C 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,LOCK,6MM 92019 92019-008 2
BEARING-BALL,608LLU/2A 92045 92045-0060 2
ROLLER,CHAIN GUIDE 92122 92122-0016 1
ROLLER,CHAIN 92122A 92122-0042 1
COLLAR 92143 92143-1196 2
COLLAR 92143A 92143-1307 2
COLLAR,8.5X15X9 92143B 92143-1642 1
BOLT,6X12 92150 92150-1435 4
BOLT,FLANGED,6X16 92150A 92150-1506 2
COLLAR 92152 92152-0052 2
COLLAR 92152A 92152-0620 2
COLLAR,8.5X12.5X12.5 92152B 92152-0944 1
COLLAR,12.7X27.2X12 92152C 92152-0945 1
COLLAR 92152D 92152-1449 2
COLLAR,8.1X12.5X7.5 92152E 92152-1624 1
BOLT,SOCKET,6X10 92154 92154-0774 2
BOLT,FLANGED,8X35 92154A 92154-0913 1
DAMPER 92161 92161-0266 2
DAMPER,8.5X15.5X5.5 92161A 92161-0878 2
NUT,FLANGED,6MM 92210 92210-0630 2
