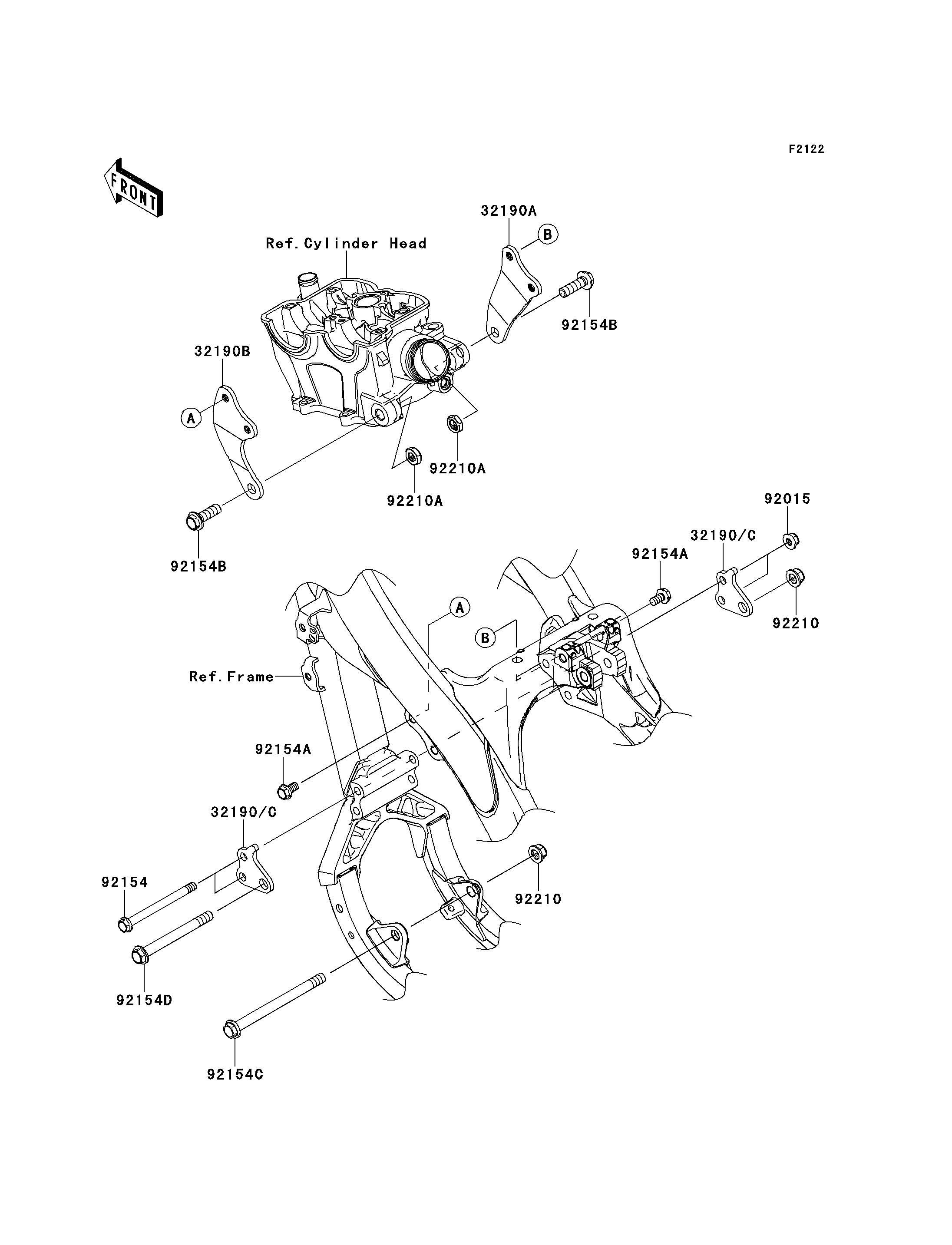

2013 KX™250F - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190
32190
32190A
32190B
92015
92154
92154A
92154A
92154B
92154B
92154C
92154D
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR 32190 32190-0461 2
BRACKET-ENGINE,UPP,RH 32190A 32190-0478 1
BRACKET-ENGINE,UPP,LH 32190B 32190-0607 1
NUT,8MM 92015 92015-1432 2
BOLT,FLANGED,8X98 92154 92154-0378 2
BOLT,FLANGED,8X14 92154A 92154-0380 4
BOLT,FLANGED,10X32 92154B 92154-0381 2
BOLT,FLANGED,10X130 92154C 92154-0517 1
BOLT,FLANGED,10X100 92154D 92154-0518 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
NUT,LOCK,10MM 92210A 92210-1184 2
