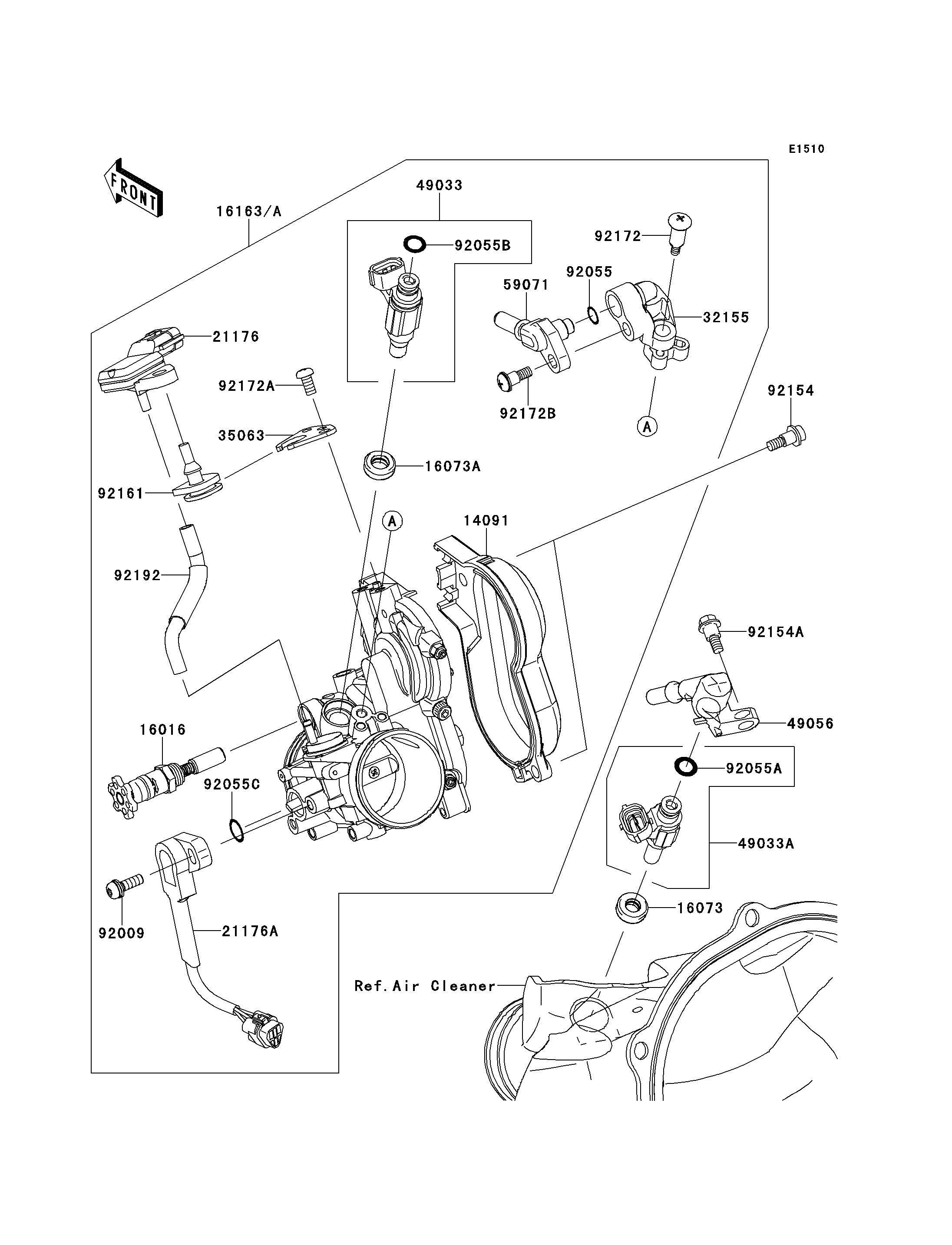

2013 KX™250F - Throttle

DOWNLOAD PDF
SELECT A NEW PART
14091
16016
16073
16073A
16163
21176
21176A
32155
35063
49033
49033A
49056
59071
92009
92055
92055A
92055B
92055C
92154
92154A
92161
92172
92172A
92172B
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,THROTTLE DUST 14091 14091-1815 1
PLUNGER 16016 16016-0025 1
INSULATOR 16073 16073-0129 1
INSULATOR 16073A 16073-3707 1
THROTTLE-ASSY 16163 16163-0767 1
SENSOR,PRESSURE 21176 21176-0058 1
SENSOR,THROTTLE POSITION 21176A 21176-0129 1
PIPE,FUEL 32155 32155-0112 1
STAY 35063 35063-0647 1
NOZZLE-INJECTION 49033 49033-0026 1
NOZZLE-INJECTION 49033A 49033-0560 1
PIPE-INJECTION 49056 49056-0036 1
JOINT 59071 59071-0049 1
SCREW,THROTTLE SENSOR 92009 92009-1981 1
RING-O 92055 92055-0064 1
RING-O,INJECTION NOZZLE 92055A 92055-0124 1
RING-O,INJECTION NOZZLE 92055B 92055-1622 1
RING-O 92055C 92055-1671 1
BOLT 92154 92154-0243 2
BOLT,FLANGED,5X8 92154A 92154-1021 1
DAMPER 92161 92161-0041 1
SCREW,PIPE INJECTION 92172 92172-0064 1
SCREW 92172A 92172-0438 2
SCREW 92172B 92172-0776 1
TUBE 92192 92192-0823 1
