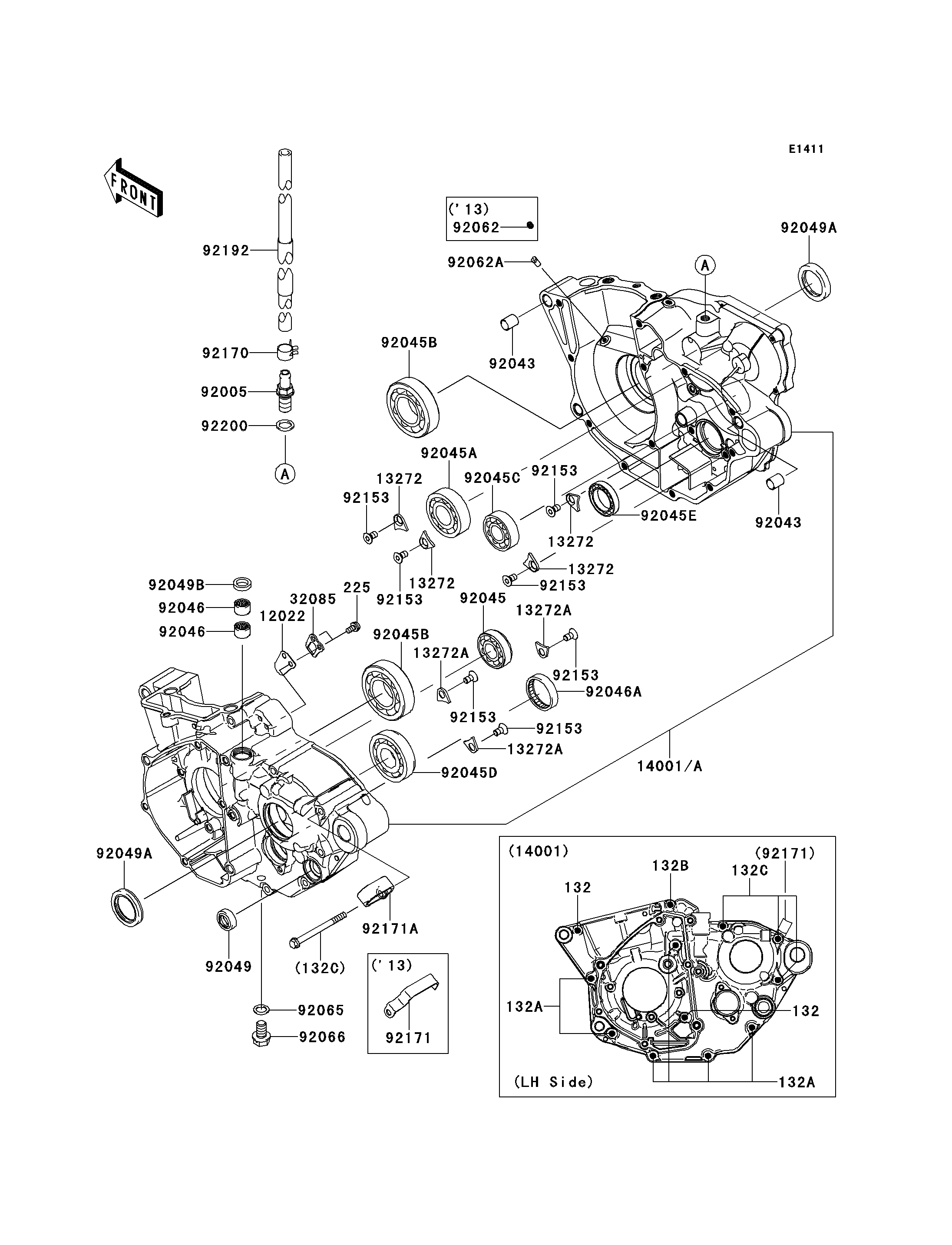

2013 KX™250F - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132B
132C
225
12022
13272
13272
13272
13272
13272A
13272A
13272A
14001
32085
92005
92043
92043
92045
92045A
92045B
92045B
92045C
92045D
92045E
92046
92046
92046A
92049
92049A
92049A
92049B
92062
92065
92066
92153
92153
92153
92153
92153
92153
92153
92170
92171
92192
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X50 132 132BA0650 2
BOLT-FLANGED-SMALL,6X60 132A 132BA0660 6
BOLT-FLANGED-SMALL,6X65 132B 132BA0665 1
BOLT-FLANGED-SMALL,6X70 132C 132BA0670 3
SCREW-PAN-WSP-CROS,5X10 225 225AA0510 2
VALVE-REED 12022 12022-0006 1
PLATE 13272 13272-0488 4
PLATE 13272A 13272-0670 3
SET-CRANKCASE 14001 14001-0155 1
STOPPER,VALVE-REED 32085 32085-0011 1
FITTING,BREATHER 92005 92005-0747 1
PIN,10.1X12X14 92043 92043-4009 2
BEARING-BALL,3TM-SX0391ZC3 92045 92045-0013 1
BEARING-BALL,22X50X14 92045A 92045-0051 1
BEARING-BALL,CRANKSHAFT MAIN 92045B 92045-0052 2
BEARING-BALL,TMB203LU 92045C 92045-1287 1
BEARING-BALL,SX04A81C3 92045D 92045-1335 1
BEARING-BALL,6805JRZ 92045E 92045-1432 1
BEARING-NEEDLE,HK1210FM 92046 92046-0034 2
BEARING-NEEDLE,7E-HKS33X38X8 92046A 92046-1221 1
SEAL-OIL,SD2 14 22 6-1 NS 92049 92049-0015 1
SEAL-OIL,TC 30 40 7 92049A 92049-0030 2
SEAL-OIL,AG0353-F0 92049B 92049-1262 1
NOZZLE 92062 92062-0004 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
BOLT,TORX,6X8.7 92153 92153-1669 7
CLAMP 92170 92170-1938 1
CLAMP 92171 92171-0579 1
TUBE,BREATHER 92192 92192-1184 1
WASHER,12.5X18X1.6 92200 92200-0087 1
