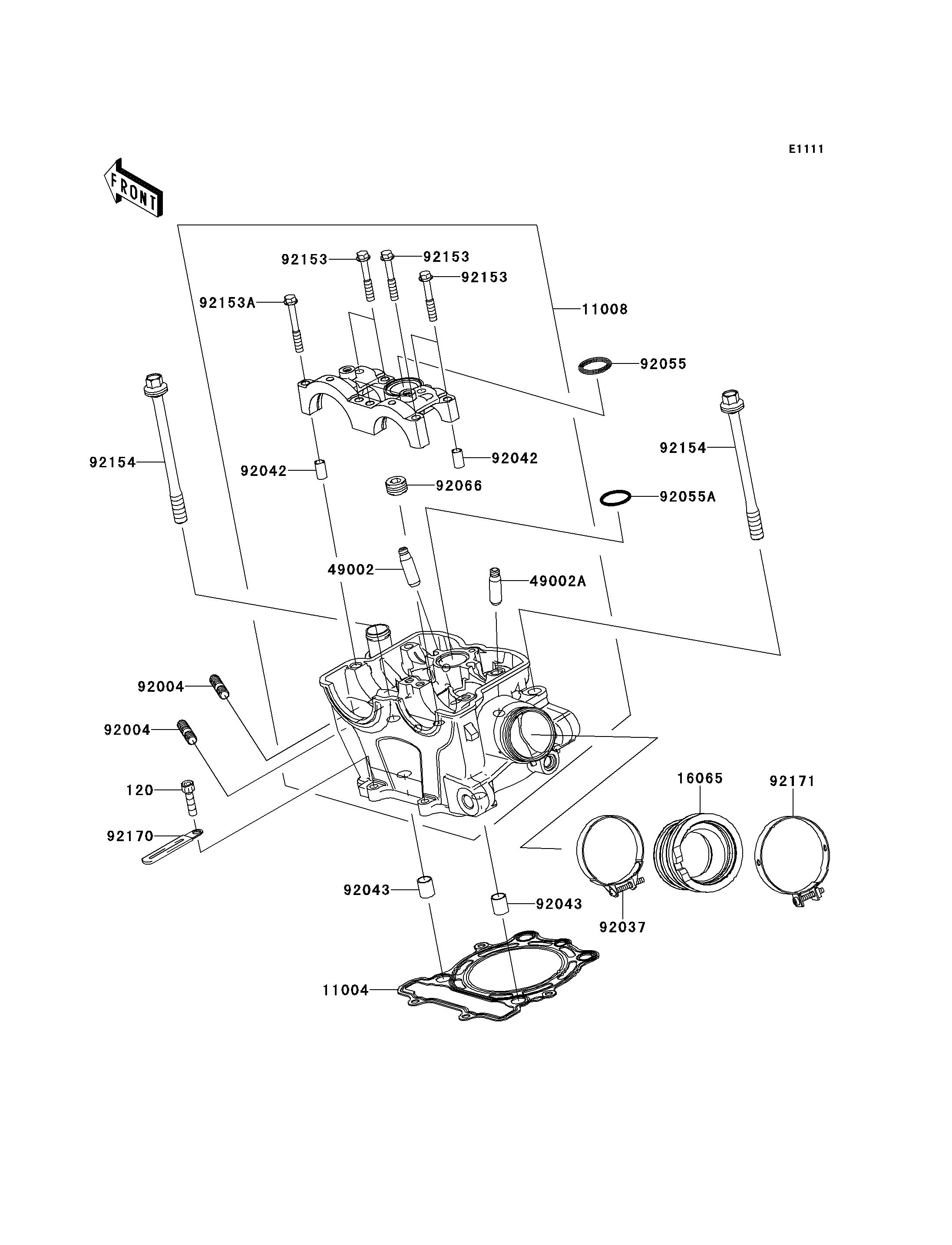

2013 KX™250F - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
120
11004
11008
16065
49002
49002A
92004
92004
92037
92042
92042
92043
92043
92055
92055A
92066
92153
92153
92153
92153A
92154
92154
92170
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120CA0625 2
GASKET-HEAD 11004 11004-0079 1
HEAD-COMP-CYLINDER 11008 11008-0750 1
HOLDER-CARBURETOR 16065 16065-0074 1
GUIDE-VALVE 49002 49002-0003 2
GUIDE-VALVE 49002A 49002-0016 2
STUD,8X22 92004 92004-0025 2
CLAMP 92037 92037-1523 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,24.7X2.4 92055 92055-0150 1
RING-O,25X1.9X1.35 92055A 92055-0729 1
PLUG,10X16.6 92066 92066-3777 1
BOLT,6X38 92153 92153-0338 7
BOLT,6X45 92153A 92153-0339 1
BOLT,FLANGED,10X122 92154 92154-1094 4
CLAMP 92170 92170-1514 2
CLAMP,62MM 92171 92171-0857 1
