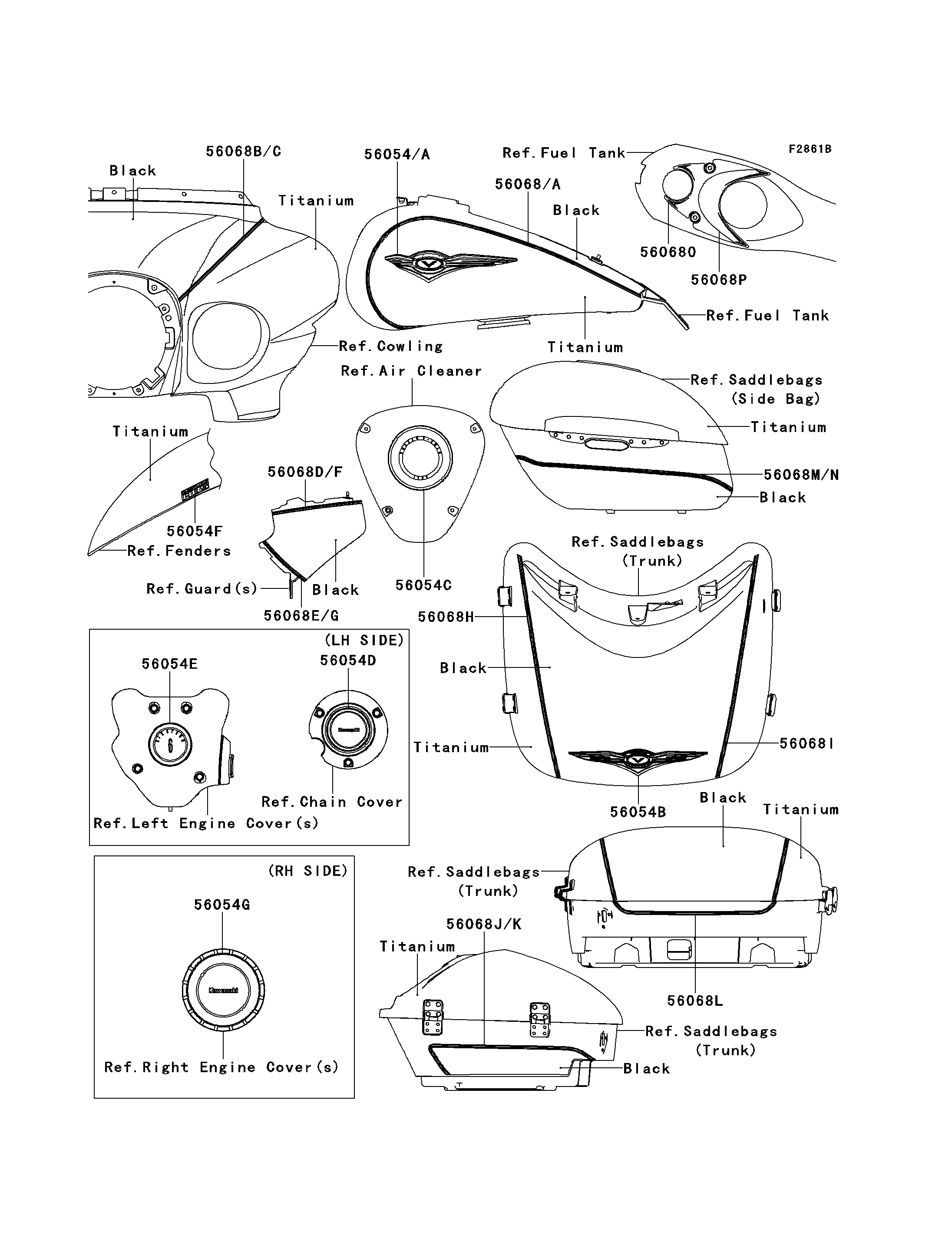

2009 Vulcan 1700 Voyager ABS - Decals(Titanium/Black)(B9FA)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56068
56068A
56068B
56068C
56068D
56068E
56068F
56068G
56068H
56068I
56068J
56068K
56068L
56068M
56068N
56068O
56068P
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56054 56054-0300 1
MARK,FUEL TANK,RH 56054A 56054-0301 1
MARK,REAR TRUNK 56054B 56054-0302 1
MARK,AIR CLEANER COVER 56054C 56054-0303 2
MARK,PULLEY COVER 56054D 56054-0304 1
MARK,GENERATOR COVER 56054E 56054-0305 1
MARK,FR FENDER,ABS 56054F 56054-0455 2
MARK,CLUTCH COVER 56054G 56054-0463 1
PATTERN,FUEL TANK,LH 56068 56068-1552 1
PATTERN,FUEL TANK,RH 56068A 56068-1553 1
PATTERN,UPP COWLING,FR,LH 56068B 56068-1554 1
PATTERN,UPP COWLING,FR,RH 56068C 56068-1555 1
PATTERN,LEG SHIELD,UPP,LH 56068D 56068-1556 1
PATTERN,LEG SHIELD,LWR,LH 56068E 56068-1557 1
PATTERN,LEG SHIELD,UPP,RH 56068F 56068-1558 1
PATTERN,LEG SHIELD,LWR,RH 56068G 56068-1559 1
PATTERN,REAR TRUNK,UPP,LH 56068H 56068-1560 1
PATTERN,REAR TRUNK,UPP,RH 56068I 56068-1561 1
PATTERN,REAR TRUNK,LWR,LH 56068J 56068-1562 1
PATTERN,REAR TRUNK,LWR,RH 56068K 56068-1563 1
PATTERN,REAR TRUNK,LWR,CNT 56068L 56068-1564 1
PATTERN,SIDE BAG,LH 56068M 56068-1565 1
PATTERN,SIDE BAG,RH 56068N 56068-1566 1
PATTERN,TANK COVER,UPP 56068O 56068-1881 1
PATTERN,TANK COVER,LWR 56068P 56068-1882 1
